TruVision DVR 42 User Manual 11
Audio input RCA jack, 315 mV, 40 kohms. Unbalanced
Audio output RCA jack, 315mV, 600 ohms. Unbalanced
Note: Line-level audio requires amplification.
Brackets
The DVR is easily rack-mountable with the purchase of the TVR-RK-1 rack-
mount kit. See Figure 3 below. Contact your local supplier to order it.

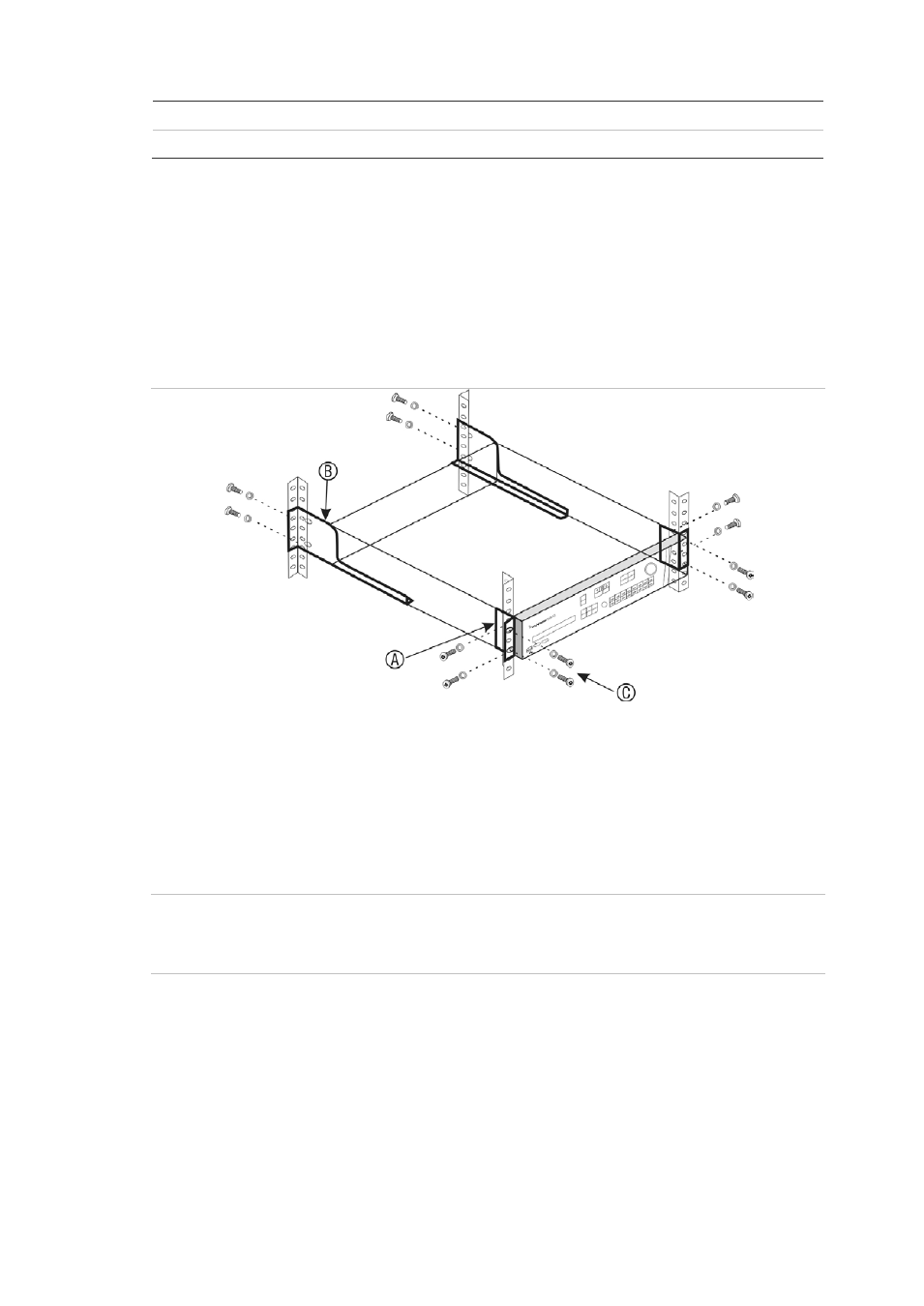

Figure 3: Rack-mount installation
To install the racks:
1. Attach the two small front-rack mount ears to the DVR (A). The screws are
supplied.
2. Attach the two large rear support brackets (not supplied) to the rear rails (B).
3. Attach the DVR to the front rails (C). The screws are not supplied.
Caution:
Do not rack-mount the TVR 42 without the rear rails installed. Failure to install
the rear rails can damage the DVR.
PTZ dome camera set up
Use the USB mouse provided or the optional keypad for local telemetry control. If
using the TVR 42 over a network, use the web browser to control the PTZ dome
cameras or TruVision Navigator.
