3-2 LiquiFlo AC Drive, Software Reference Version 6.4
3.1 Monitor Mode
Monitor mode is the keypad/display’s default mode during drive operation or it is
entered by pressing the PROGRAM key until the PROGRAM LED turns off. The
following output data can be displayed in monitor mode:
• Speed
• Volts
• Amps
• Hz
• Kw
• Torque (vector regulation only)
• Selected reference (speed or torque)
To select a value to monitor, press the ENTER key until the LED turns on next to the
desired display item. Pressing the ENTER key advances you through each of the
displays. (Note that all of the LEDs turn on to indicate the selected reference display.
Refer to section 3.1.1.)
3.1.1 Displaying the Selected Reference
In monitor mode, you can display the speed reference (speed or frequency) or the
torque reference the drive is using while it is running (RUNNING LED is on, JOG LED
is off). Follow these steps to display the selected reference:
Step 1. If you are not already in monitor mode, access it by pressing the PROGRAM
key until the PROGRAM LED turns off.

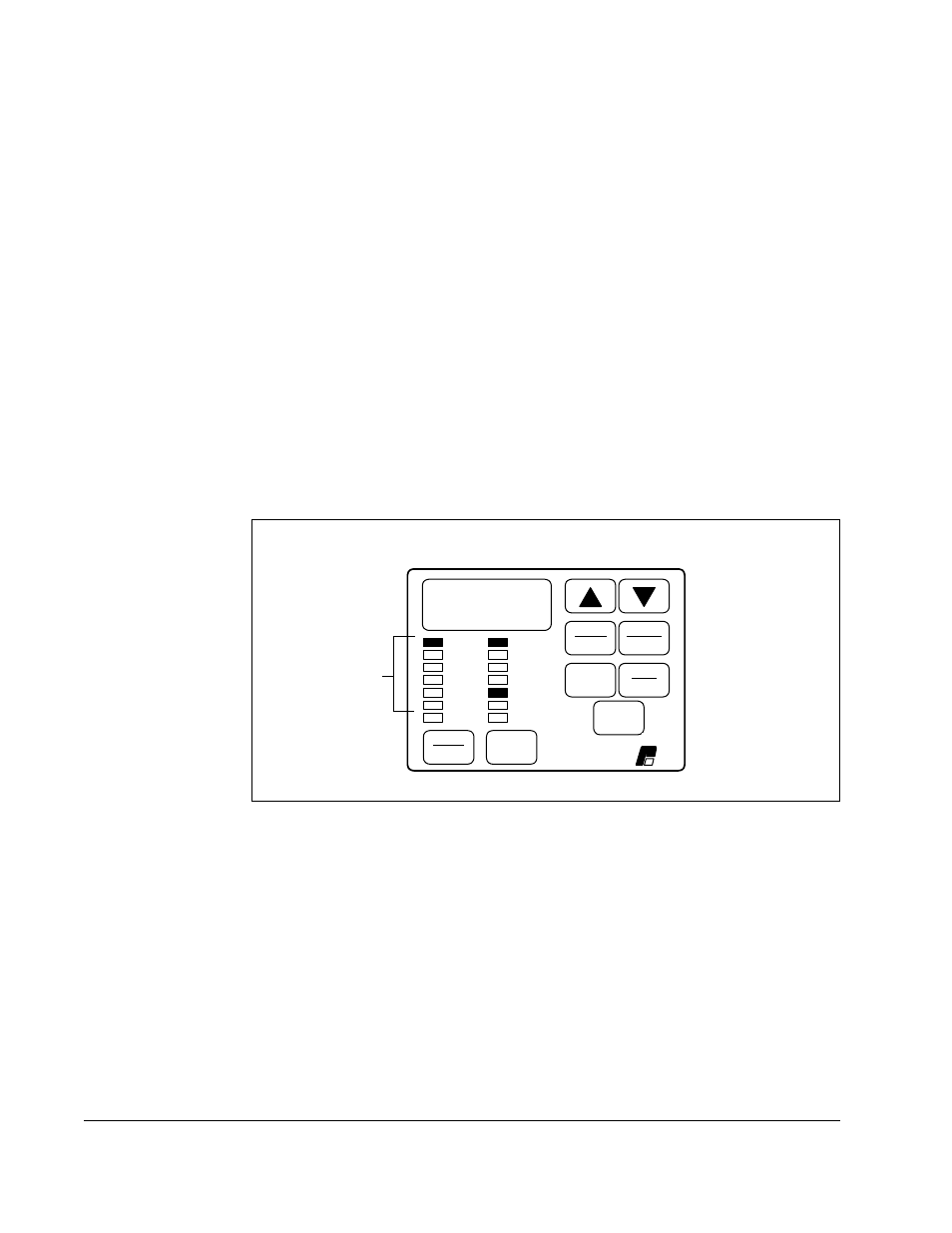

Figure 3.2 – Example of a Monitor Mode Display
ii7
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
based on selected monitor mode LED.
One of 6 LEDs
is on
.
Displays value (SPEED, VOLTS, etc.)
To enter monitor
mode, press the
PROGRAM key
until the
PROGRAM LED
turns off.
