H.003, H.0i7 – Rockwell Automation Liqui-Flo AC GP Vector Drive Version 6.4 User Manual
Page 26
1-16
LiquiFlo AC Drive, Software Reference Version 6.4

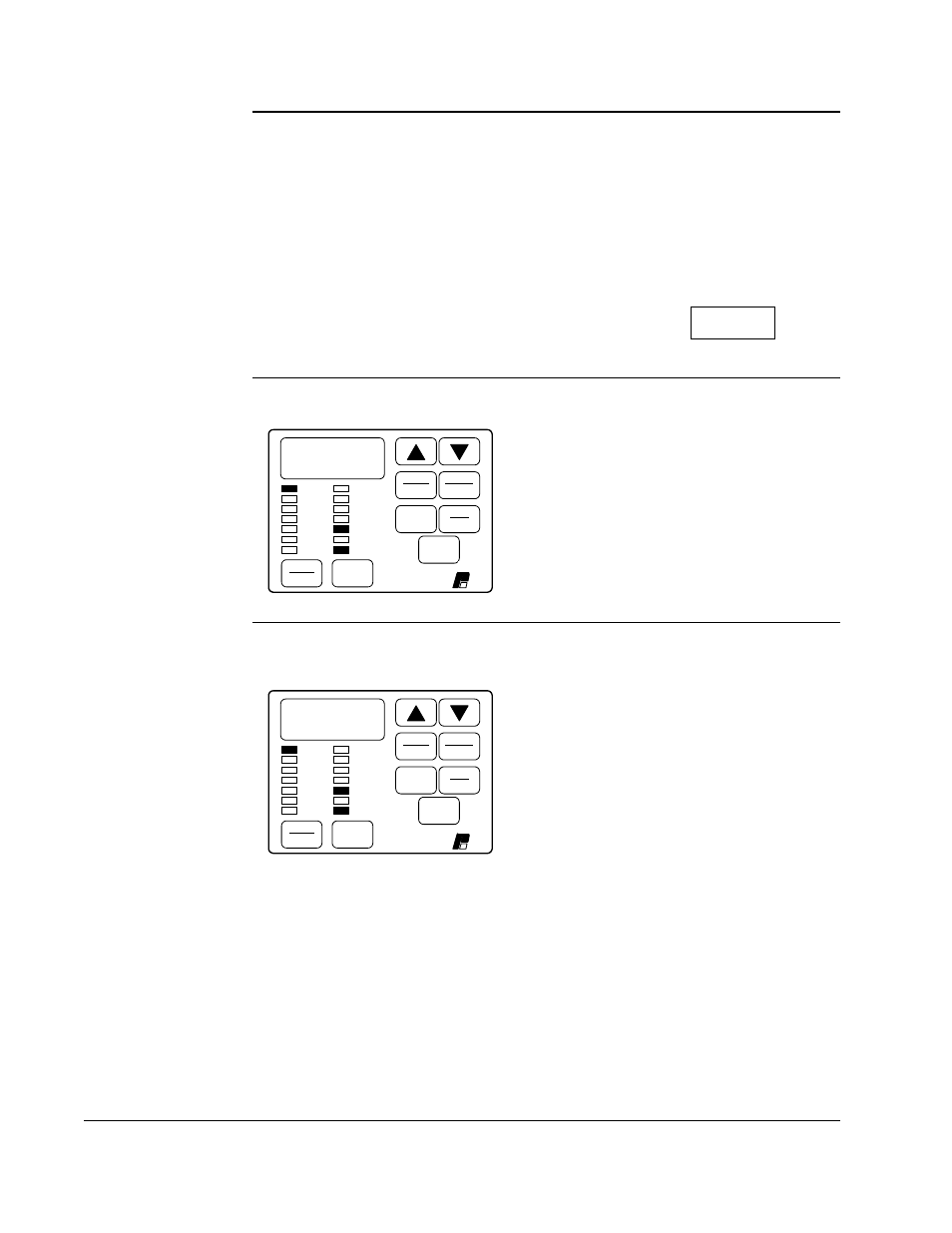

Step 5.16 Press the ▲
key to increase the torque boost voltage, or the ▼ key to
decrease torque boost voltage.
Important: If you set H.003 = 0, you must perform the identification test, controlled
by H.020, prior to running. Refer to the H.020 parameter description for
more information.
The adjustment range is:
0.0% to 20.0%
VALUE ENTERED:
Step 5.17 Press the ENTER key to save the changed value.
After pressing ENTER, the same
parameter is displayed. You can now
move to the next parameter.
Step 5.18 Press the ▲ key until H.017, Input Power/Snubber Configuration, is
displayed.
This parameter selects the input power
supply type/snubber resistor kit
configuration. See chapter 4 for more
information.
h.003
Forward
Reverse
AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
h.0i7
Forward
Reverse
AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
