Starting Up the Drive for Volts/Hertz Regulation 1-23
Step 8. Run the Drive
This step describes how to adjust the speed reference from the keypad and run the
motor up to maximum speed in Hz. At maximum Hz, you must check values in monitor
mode. This step assumes you have connected the motor to the load and turned power
back on.
!
ATTENTION: The user is responsible for ensuring that driven
machinery, all drive-train mechanisms, and application material are
capable of safe operation at the maximum operating speed of the drive.
In V/Hz regulation, overfrequency protection in the drive is provided by
means of H.022. Failure to observe this precaution could result in bodily
injury.

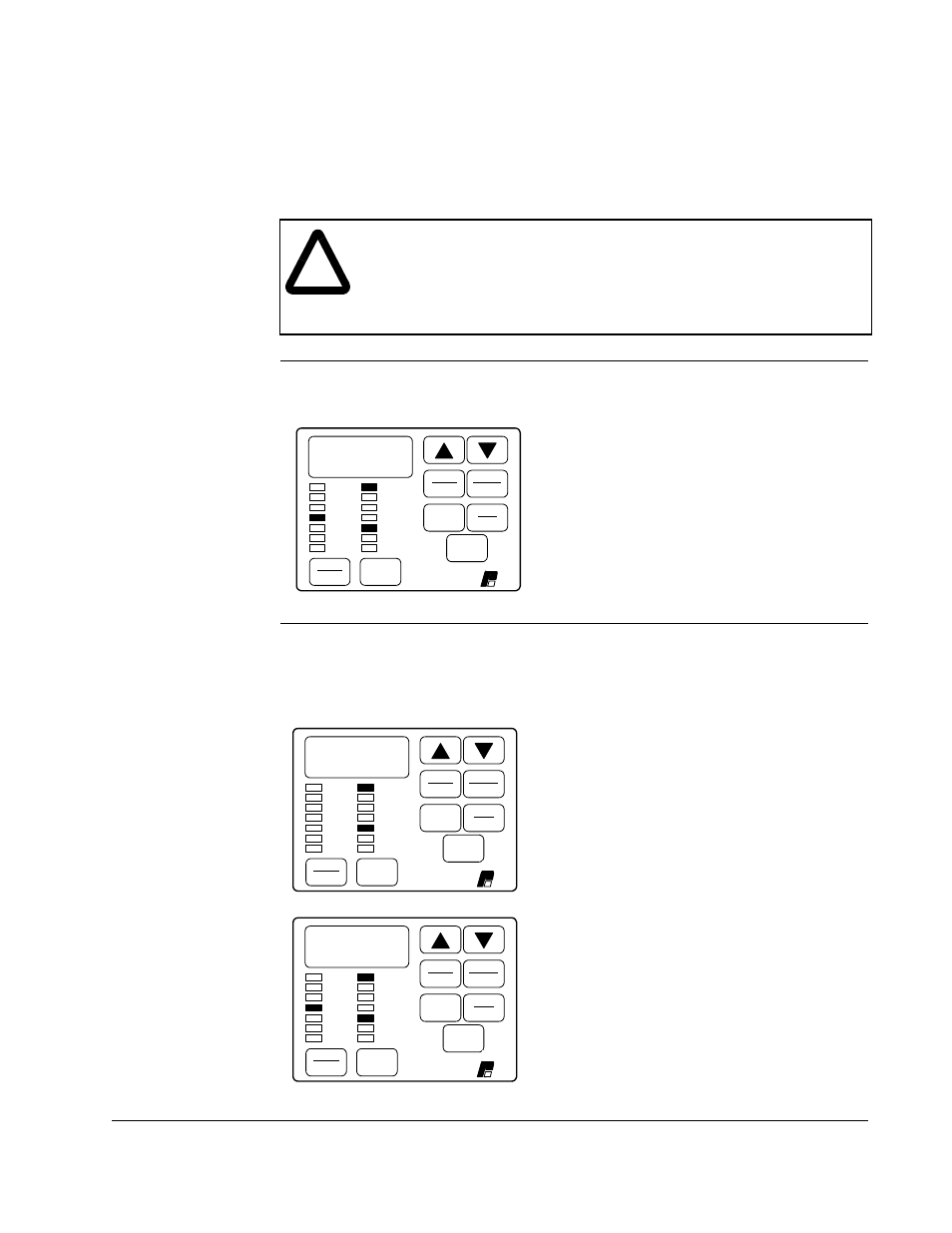

Step 8.1 Press the ENTER key until the Hz LED turns on. (If the drive is not
running, press the START key.)
This example shows the minimum hertz
setting of parameter P.003.
Step 8.2 Press the ▲ or ▼ key once. All of the monitor mode LEDs turn off.
Increase the speed reference to the maximum value by using the ▲ key.
Wait five seconds or press the ENTER key to return to monitor mode.
This increases the drive speed
reference and the motor will rotate up to
maximum speed.
The monitor mode LEDs turn off when
the reference is changed.
The display now shows the drive speed.
Your speed display may be different.
5.0
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
60.0
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
60.0
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
