Using the Keypad/Display to Program, Monitor, and Control the Drive 3-1
C
HAPTER
3
Using the Keypad/Display to Program,
Monitor, and Control the Drive
The front-panel keypad/display is used to program, monitor, and control the drive. It
operates in two modes, monitor mode and program mode. The functions available at
the keypad depend on what mode the keypad/display is in and what is selected as the
drive control source.
In monitor mode (the default mode), you can monitor specific drive outputs as well as
enter the speed or frequency reference for the drive. In program mode, you can view
and adjust drive parameter values, and examine the error log.
In addition to the functions listed above, if the control source is local (the REMOTE
LED is off), the keypad is also used to select run or jog, select motor direction, and
start the drive.
Regardless of the control source selection, the keypad/display can be used to stop the
drive, reset drive faults, and switch between a manual speed reference or the selected
control source auto reference.
Important: The STOP/RESET key can be disabled by parameter P.055. See the
P.055 parameter description for more information.
The following sections describe monitor mode and program mode in more detail. The
keypad, display, and LEDs are described later in this chapter.

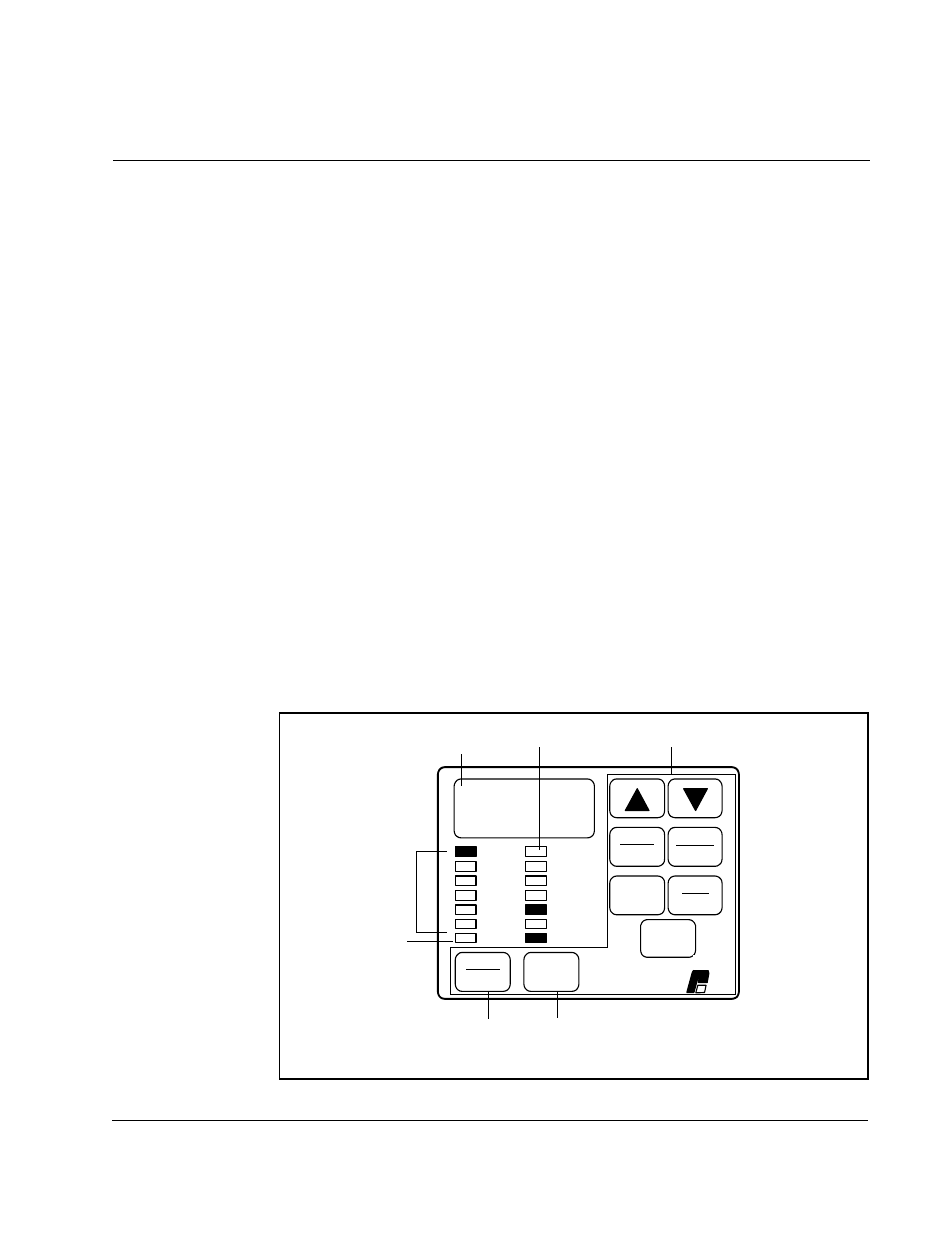

Figure 3.1 – Keypad/Display
P.---
Forward
Reverse
AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
Drive Status LEDs
Display
Monitor Mode
LEDs
Password LED
Stop/Reset
Key Start Key
Keypad
