4-26 LiquiFlo AC Drive, Software Reference Version 6.4
The acceleration and deceleration times must be set the same for the S-Curve ramp
to function the same for acceleration as for deceleration. If the deceleration time is set
lower than the acceleration time, the deceleration time specified may not be met.
Jog reference is independent of any other speed reference. Unlike the run speed
reference, the jog speed reference cannot be adjusted using the ▲
or ▼ keys

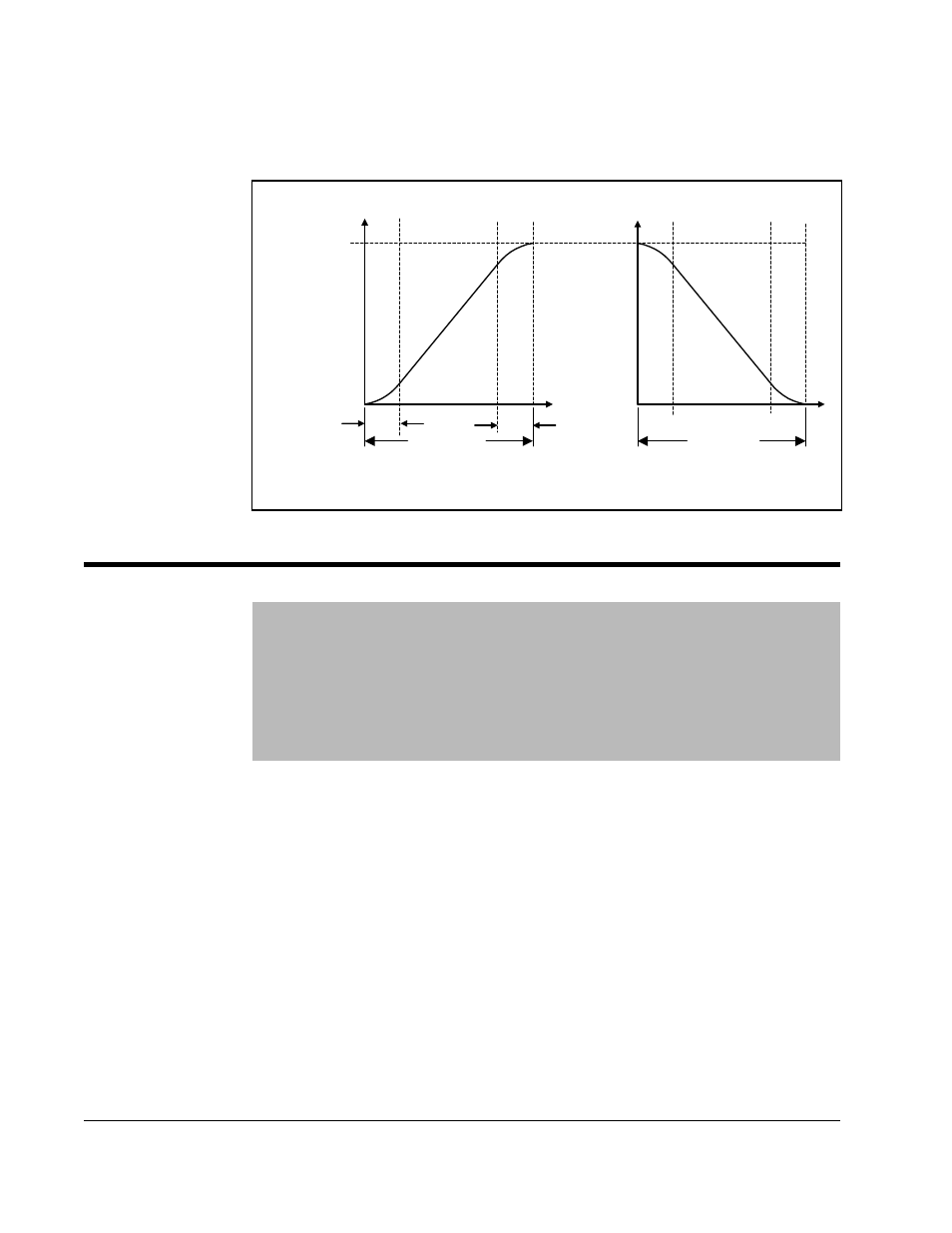

Figure 4.5 – S-Curves
accel time
P.004 (V/Hz)
U.017 (Vector)
S-Curve Acceleration
20% 20%
decel time
S-Curve Deceleration
t t
P.020 Jog Speed Reference
This parameter is the
speed reference for
the drive when JOG
is selected. Parameter Range: Minimum Speed (P.003) to Maximum Speed (P.004)
Default Setting: 50 Hz (V/Hz)
150 RPM (vector)
Parameter Type: Tunable
Refer also to parameters: P.003 Minimum Speed
P.004 Maximum Speed
