Starting Up the Drive for Vector Regulation
2-35

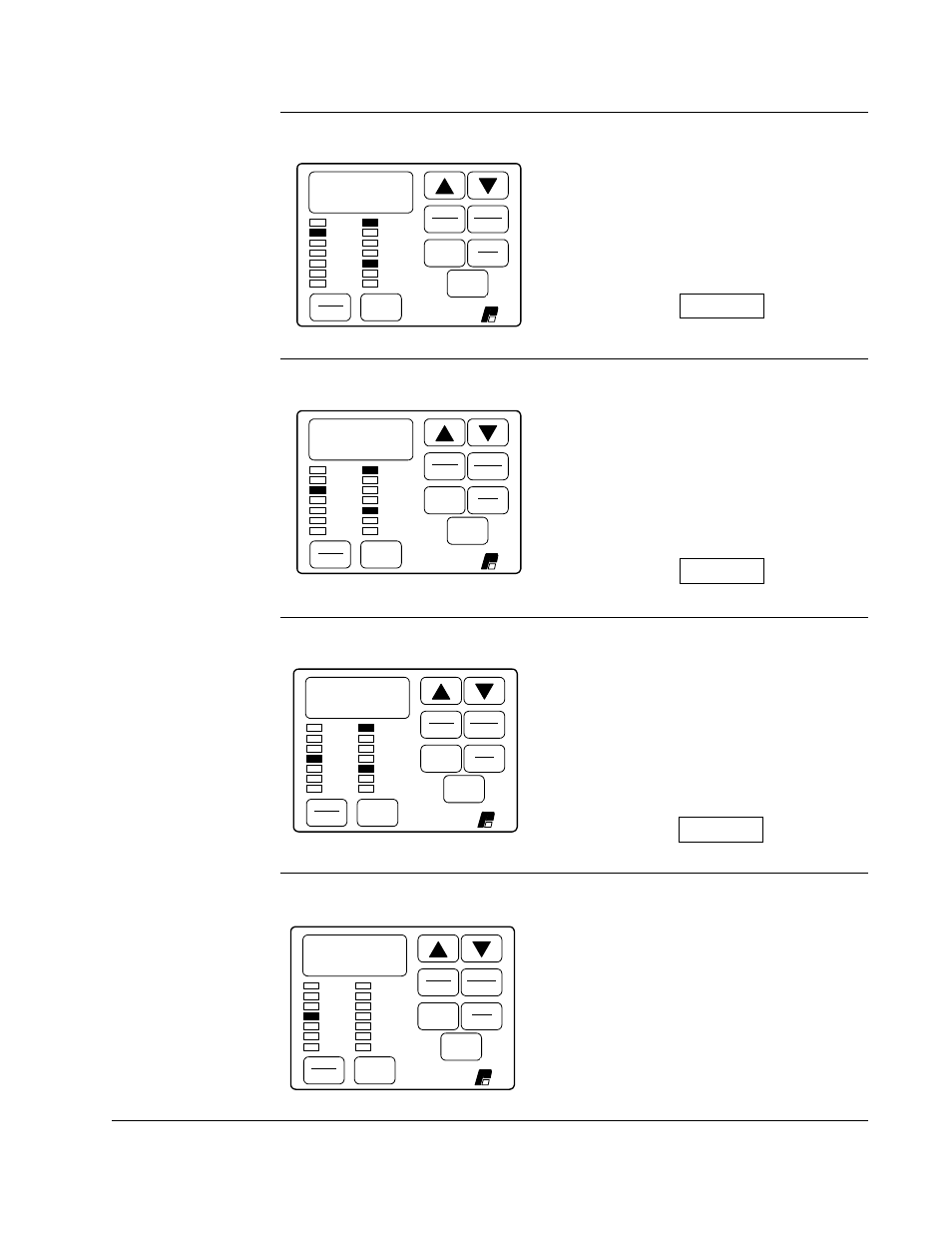

Step 11.3 Press the ENTER key to move to the VOLTS display.
This sample display shows the output
volts at maximum speed. Your actual
reading may be different.
VALUE READ:
Step 11.4 Press the ENTER key to move to the AMPS display.
This sample display shows the output
amps at maximum speed. Your actual
reading may be different.
VALUE READ:
Step 11.5 Press the ENTER key to move to the Hz display.
This sample display shows the hertz
value corresponding to the value set into
P.004, Maximum Speed. Your actual
reading may be different.
VALUE READ:
Step 11.6 Press the STOP/RESET key.
The driven motor should stop as
programmed in P.025, Stop Type.
