Programming Reference 4-23

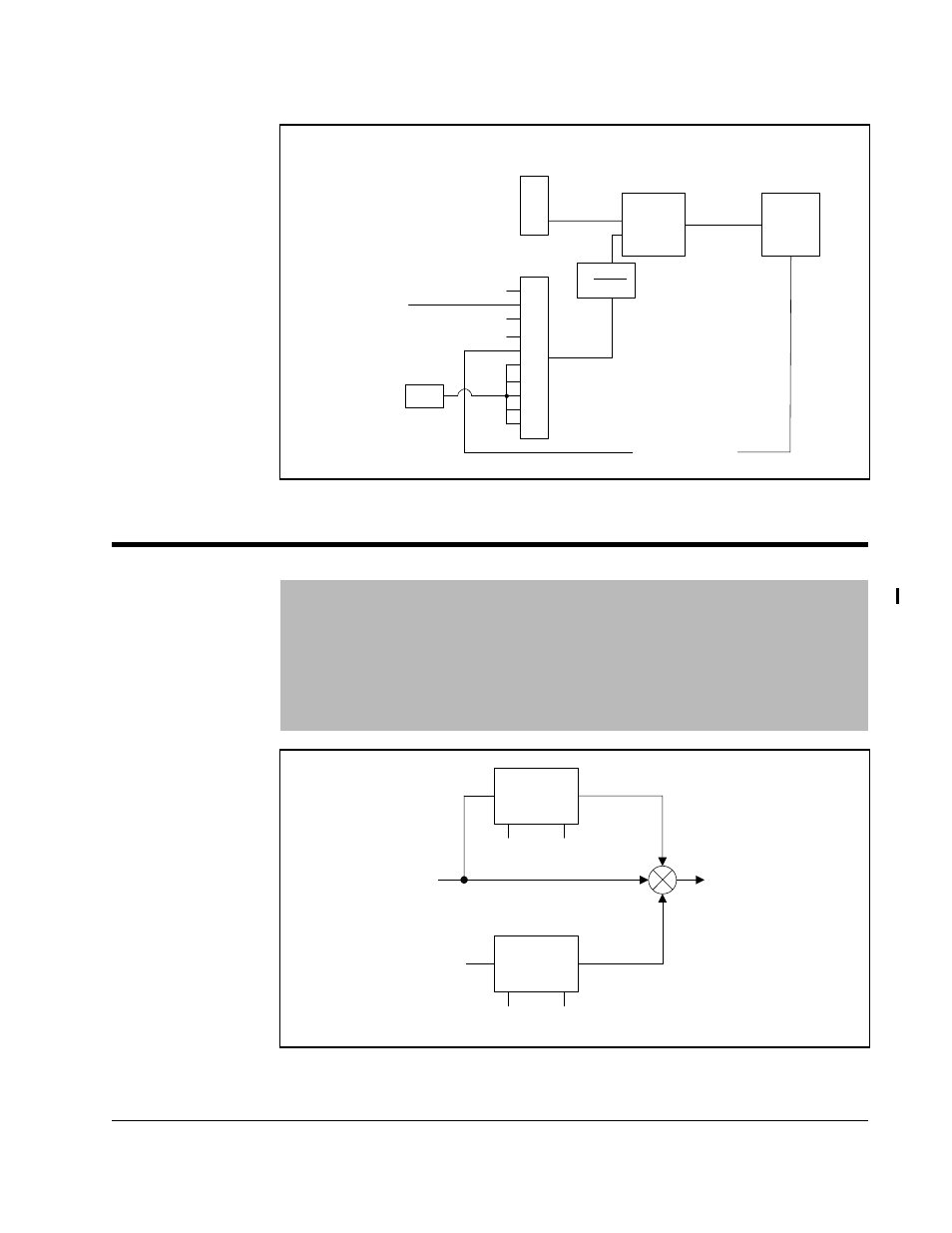

Figure 4.3 – Trim Reference Source Selection
P.000
Selected
Trim Ref
P.014
Torque
Controller
0
1
2
3
4
5
6
7
8
9
Torque Feedback
None
Option Port
Max Speed
Terminal Strip
Analog Input
RMI
Selected
Speed
Ref
Speed
Control
Loop
x P.015
100
P.015 Trim Gain Percentage
This parameter
specifies a
percentage of the
selected trim
reference entering
the speed regulator.
See figure 4.4.
Parameter Range: -100.0 to +100.0% (1.0 = 1%)
Default Setting: 0.0
Parameter Type: Tunable
Refer also to parameters: P.014 Trim Reference Source
Figure 4.4 – Draw and Trim Gain
See Appendix G for the complete block diagram.
Selected
Speed Ref
Draw Gain
Mul Div
P.016
Draw
100
Trim Gain
Mul Div
P.015
Trim
100
To Speed Ref
Limit Block
Selected
Trim Ref
P.014
+
+
+
