Starting Up the Drive for Vector Regulation 2-3
To Restore a Default Parameter Value after Writing over It:
If you enter the wrong value while programming parameters, you can restore the
default if you have not yet pressed the ENTER key. To do so:
1. Press the PROGRAM key.
2. Press the ENTER key. The default value of the parameter will be displayed again.
You can select it with ENTER or enter a new one and press ENTER.
To Restore All the Default Values to General (P) Parameters:
If you need to restore all the default values for General (P) parameters after
programming them, you can do so using the Restore Defaults parameter (P.050).
2.2 Start-Up Procedure (Vector)
This section describes the start-up procedure for drives set up for vector regulation.
Before using this procedure, you should have read section 2.1 for information you
need to know before working with the drive.
Step 1. Power Up the Drive
This step verifies that the drive powers up and passes the power-up diagnostics. After
the drive passes the diagnostics, the keypad/display automatically enters monitor
mode with speed displayed.
Turn power on.

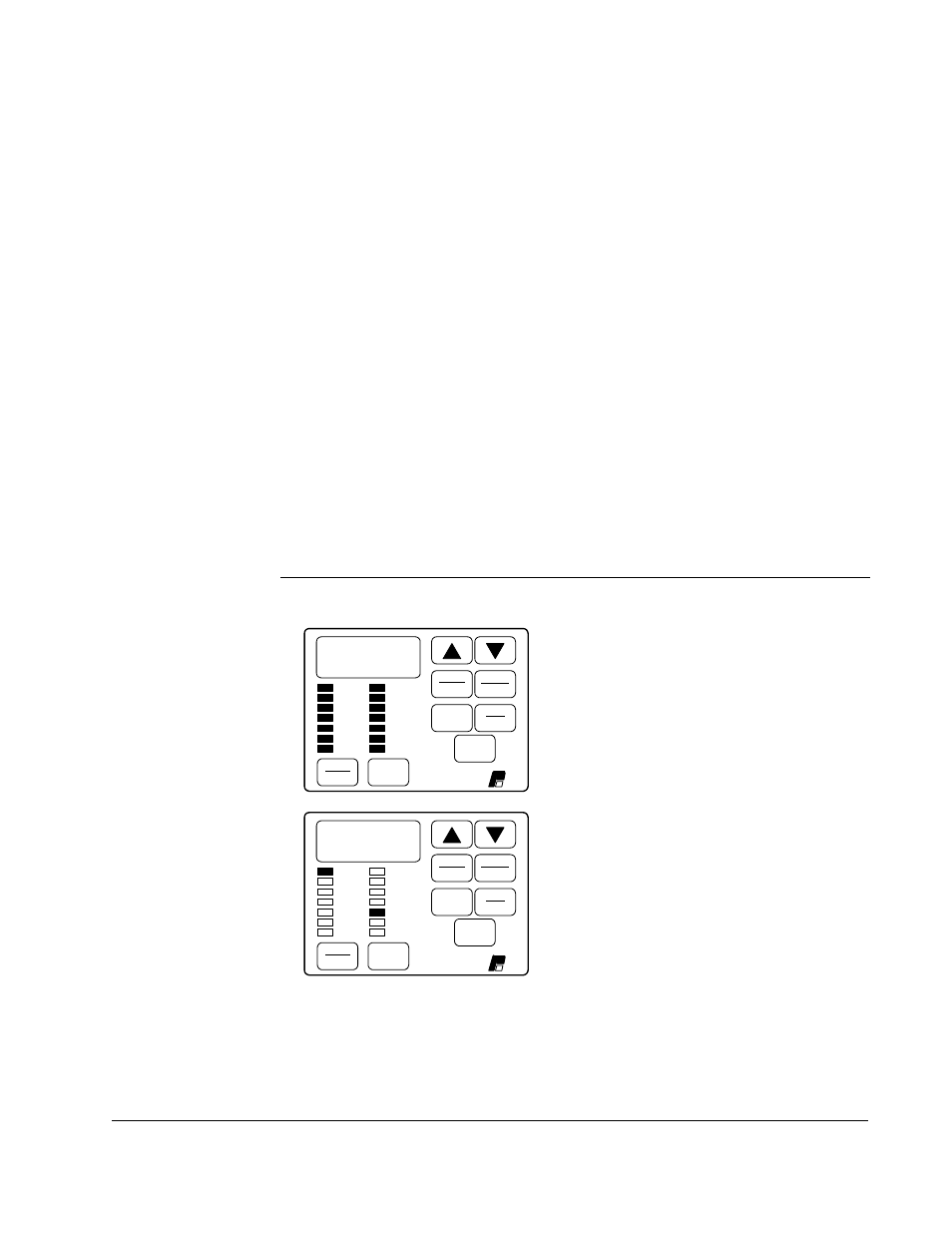

The initial display will show SELF,
with all monitor mode and status
LEDs on, indicating the drive is
performing power-up diagnostics.
After diagnostics are complete (5-6
seconds), the SPEED LED is on and
the keypad/display is in monitor
mode. The displayed value is zero.
You can move through the six items
that can be accessed in monitor
mode - Speed, Volts, Amps, Hz, Kw,
and Torque - by pressing the ENTER
key.
