2-26 LiquiFlo AC Drive, Software Reference Version 6.4
Step 7. Set the Motor Top Speed
This step sets the Motor Top Speed (U.017) in RPM. For applications that do not
support field weakening, Motor Top Speed must be equal to U.005 (Motor Nameplate
RPM). For applications that do support field weakening, Motor Top Speed is the
maximum field-weakened speed.

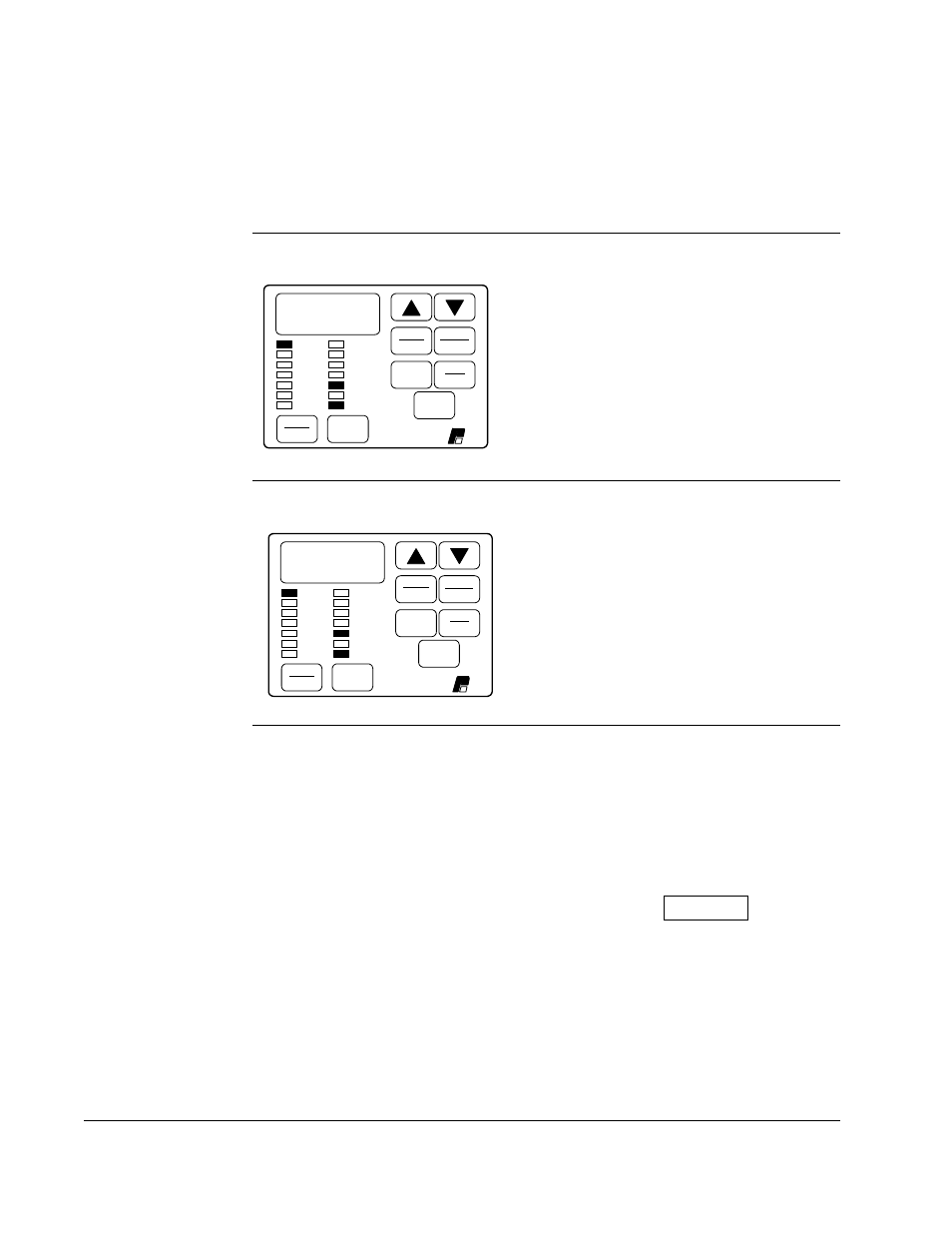

Step 7.1 Press the ▼ key until U.017 is displayed.
This parameter is the Motor Top Speed in
RPM.
Step 7.2 Press the ENTER key to display the default setting of U.017.
This displays the default setting for the
Motor Top Speed. The actual setting
depends on the Power Module HP type. The
display shown here is only an example.
Step 7.3 Check the value entered for Step 6.25 (U.005, Motor Nameplate RPM). If
the application does not support field weakening, U.005 and U.017 must
be the same. If the application does support field weakening, the value
can be set higher. Press the ▲
or ▼ key until the value is set appropriately
The adjustment range is:
The value set for U.005 to (Maximum value
depends on settings of U.002 and U.003)
VALUE ENTERED:
u.0i7
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
i722
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
