Troubleshooting the Drive Using Error Codes
5-7

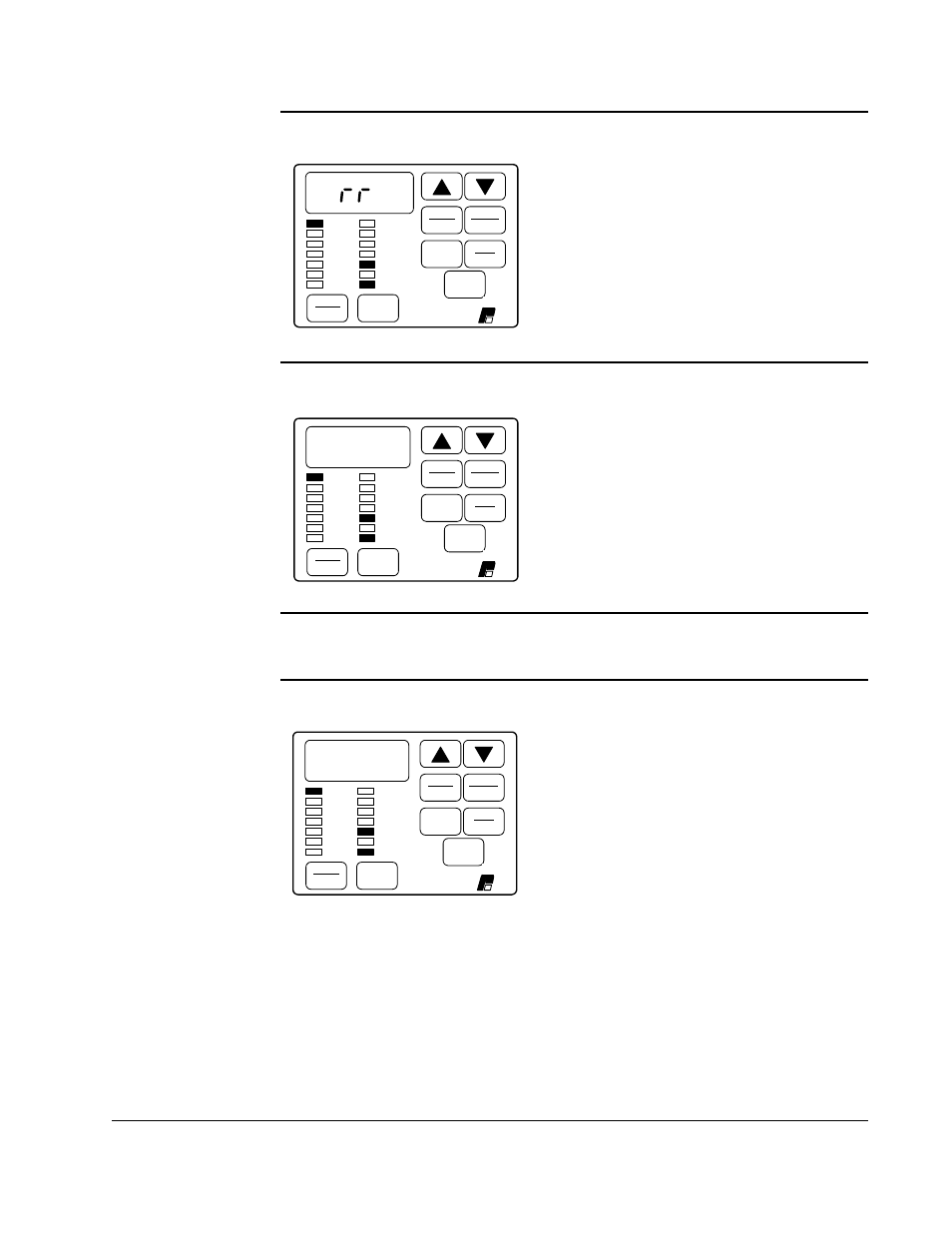

Step 2. Press the ▼ key until Err is displayed.
Step 3. Press the ENTER key.
If no faults have occured, Err will be
displayed again. If only one fault has
occurred, the fault code will be displayed as
the first entry in the log. If more than one
fault has ocurred, the first entry is the latest
fault that occurred.
Step 4. Press the ▲
or the ▼ key. The display steps through the error log entries,
which are numbered 0 through 9 (maximum).
Step 5. Press the ENTER key.
The display shows the day stamp, which
can range from 0 to 248 days.
