Starting Up the Drive for Vector Regulation 2-17
Step 6.8 Press the ENTER key to display the default setting of U.001.
This displays the default setting for Encoder
PPR, 1024 PPR.
Step. 6.9 Press the ▲ key to increase the PPR, or the ▼ key to decrease the PPR.
Select one of the four PPR values if an
encoder is used. Select SE if an encoder is
not used. See the description of U.001 in
chapter 4 for more information.
VALUE ENTERED:
Step 6.10 Press the ENTER key to save the changed value.
After pressing ENTER, the same parameter
is displayed. You can now move to the next
parameter.
!
ATTENTION: Do not use a 4096 PPR encoder with a 2-pole motor.
Overspeed and motor damage can result. Failure to observe this
precaution could result in bodily injury.

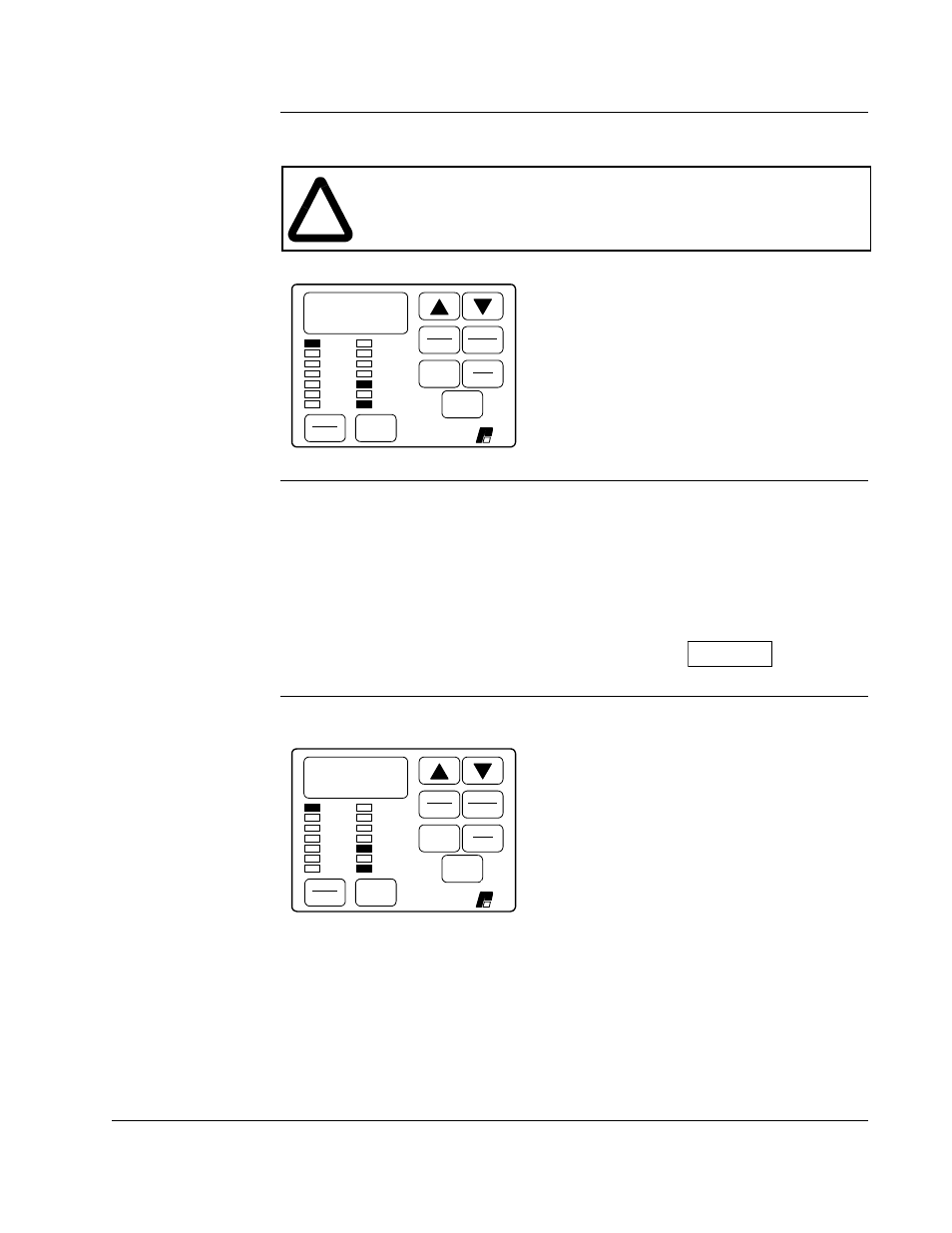

i024
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
u.00i
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
