Rockwell Automation Liqui-Flo AC GP Vector Drive Version 6.4 User Manual
Page 31
Starting Up the Drive for Volts/Hertz Regulation
1-21

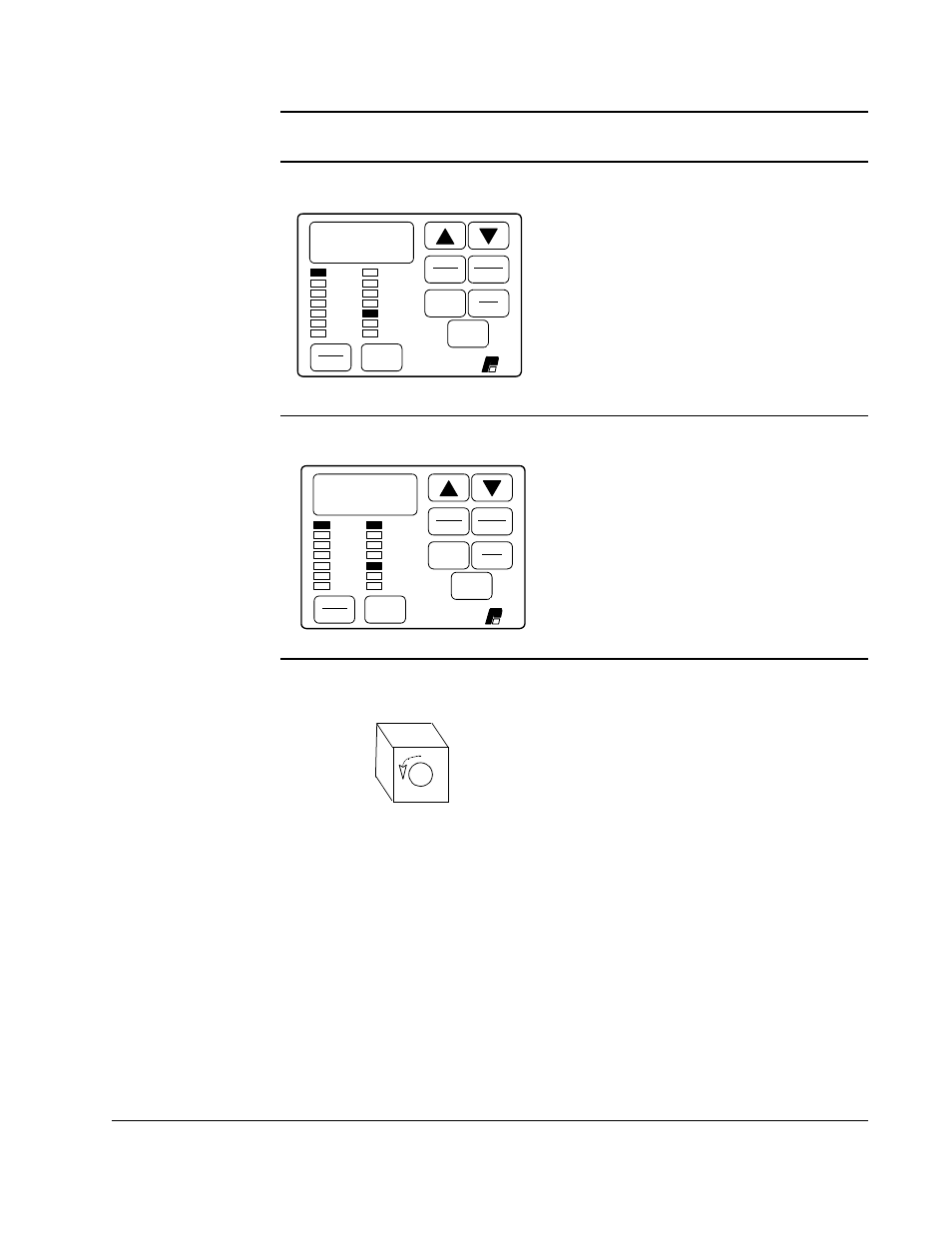

Step 7.5 Press the ▼ key to decrease the speed reference value.
Step 7.6 Press the ENTER key to return to monitor mode.
Step 7.7 Verify that you have selected RUN and FORWARD. Press the START key.
The drive is now running. The
keypad/display is in monitor mode and
the SPEED, RUNNING, and FORWARD
LEDs are on. The drive should be
running at minimum speed. The sample
display shows 150 RPM.
Step 7.8 Visually check that the motor rotates counter-clockwise (CCW) when
viewed from the driven motor shaft end.
