H.000 – Rockwell Automation Liqui-Flo AC GP Vector Drive Version 6.4 User Manual
Page 22
1-12
LiquiFlo AC Drive, Software Reference Version 6.4

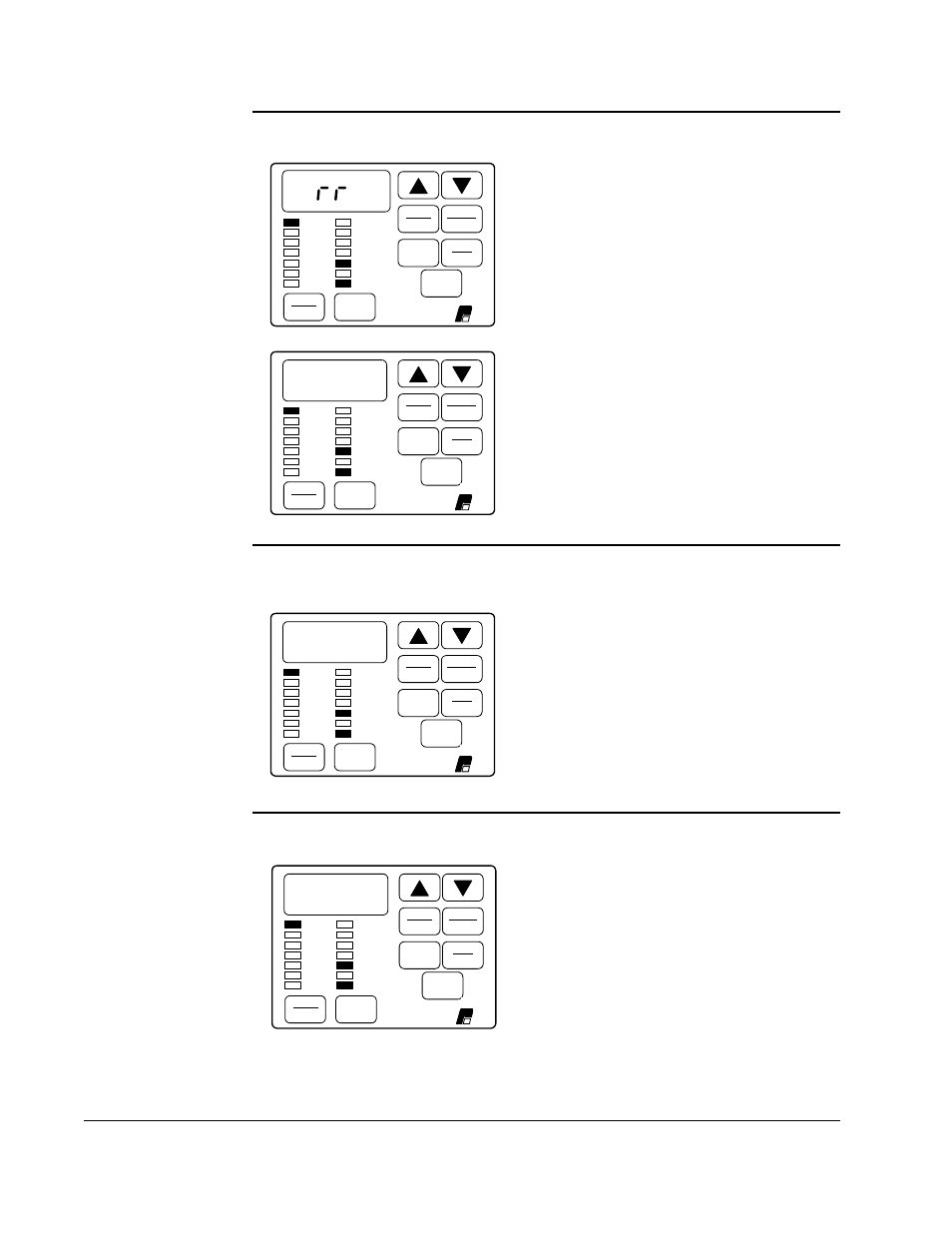

Step 5.2 Press the ▲
key twice.
The error log (Err) is bypassed, then.....
...the Volts/Hertz (H) parameter main
menu is displayed.
Step 5.3 Press the ENTER key to access the first Volts/Hertz parameter: H.000,
Motor Nameplate Volts.
This parameter sets the Motor
Nameplate Volts and is taken directly
from the motor nameplate.
Step 5.4 Press the ENTER key.
Default value varies.
The default setting for H.000 is
displayed. The default setting depends
on the Power Module rating and is
factory set. You should check to make
sure the value is correct. The value
shown here is only an example.
