2-18 LiquiFlo AC Drive, Software Reference Version 6.4

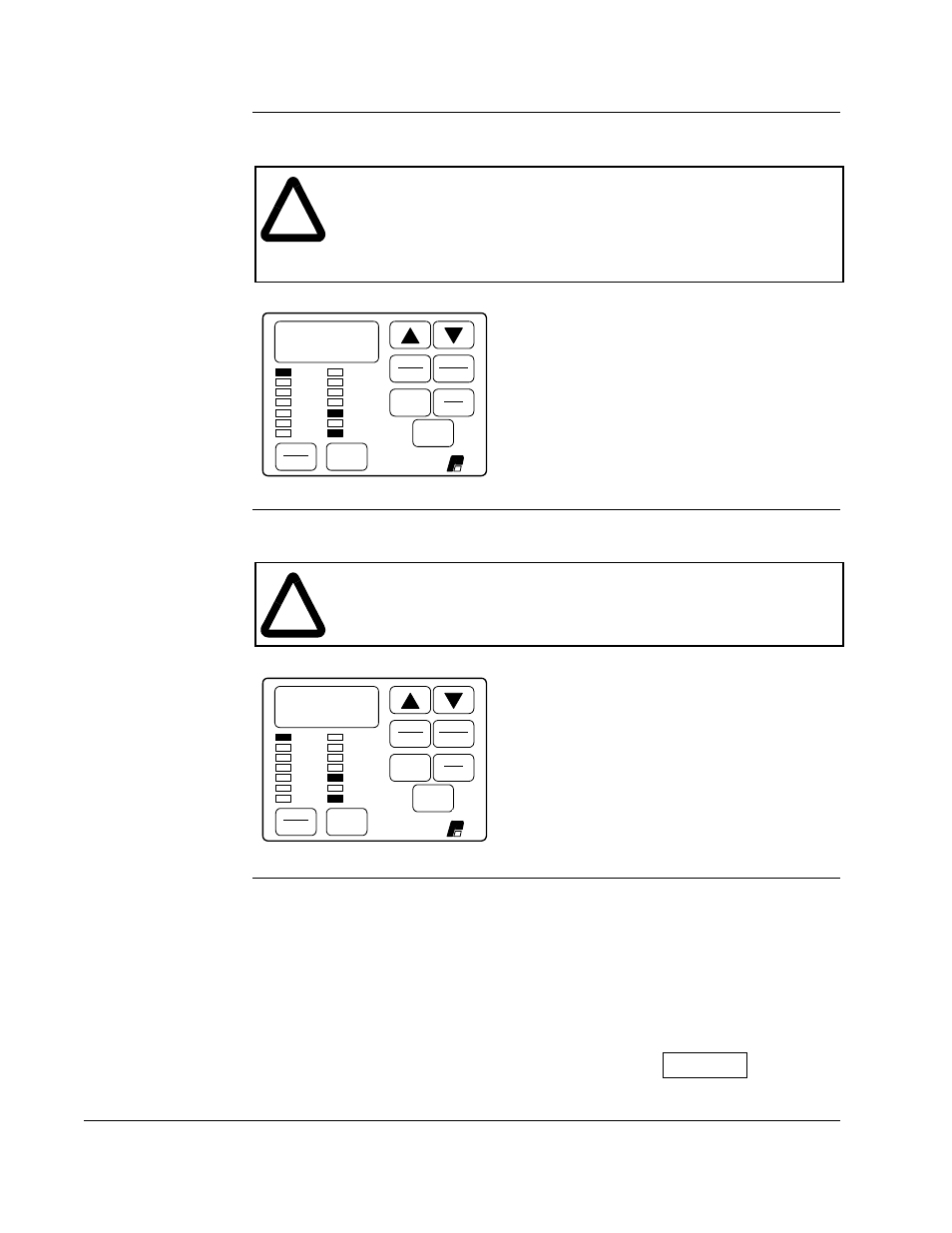

Step 6.11 Press the ▲
key to display U.002, Motor Poles.
This parameter selects the number of poles
in the motor. If the number of motor poles is
not known, refer to chapter 4.
Step 6.12 Press the ENTER key to display the default setting of U.002.
This shows that the default setting for Motor
Poles is 4 (4 poles).
Step 6.13 Press the ▲
key to increase the selection, or the ▼ key to decrease the
selection.
The adjustment options are:
2 = 2 poles
4 = 4 poles (default)
6 = 6 poles
8 = 8 poles
VALUE ENTERED:
!
ATTENTION: The setting of parameters U.001 (Encoder PPR), U.002
(Motor Poles), U.003 (Motor Nameplate Base Frequency), U.005 (Motor
Nameplate RPM), and U.017 (Motor Top Speed) determines the motor
maximum speed. These parameters must be set by a qualified person
who understands the significance of setting them accurately. Failure to
observe this precaution could result in bodily injury.
