Starting Up the Drive for Vector Regulation 2-23

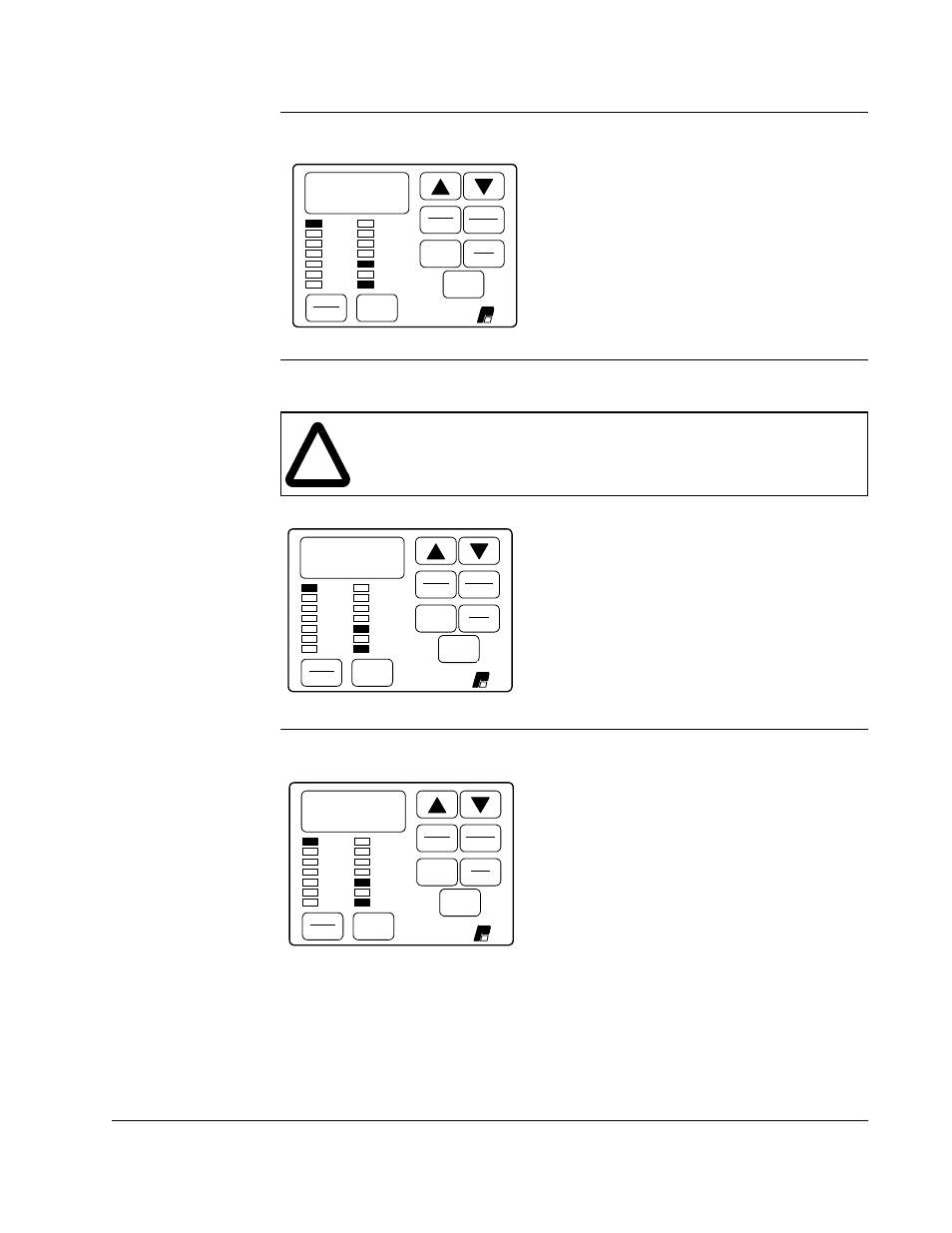

Step 6.26 Press the ENTER key to save the changed value.
After pressing ENTER, the same parameter
is displayed. You can now move to the next
parameter.
Step 6.27 Press the ▲
key to display U.006, Motor Magnetizing Current.
This parameter is the percent of
magnetizing current with respect to motor
rated amps.
Note that when the vector regulation
self-tuning procedure is performed (step 8),
the value of this parameter is automatically
calculated. You do not need to enter a value
now.
Step 6.28 Press the ▲
key to display U.007, Motor Nameplate Volts.
This parameter is the Motor Nameplate
Volts and is taken from the motor
nameplate.
u.005
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
!
ATTENTION: If this parameter is set incorrectly, overcurrent or excess
heating of the motor could result. Failure to observe this precaution could
result in damage to, or destruction of, the equipment.
u.006
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
u.007
Forward
Reverse AUTO
MAN
ENTER
RUN
JOG
PROGRAM
START
STOP
RESET
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
RELIANCE
ELECTRIC
