Programming Reference 4-51
P.066 to P.069 Network Output Register 1 Source through Network
Output Register 4 Source (continued)

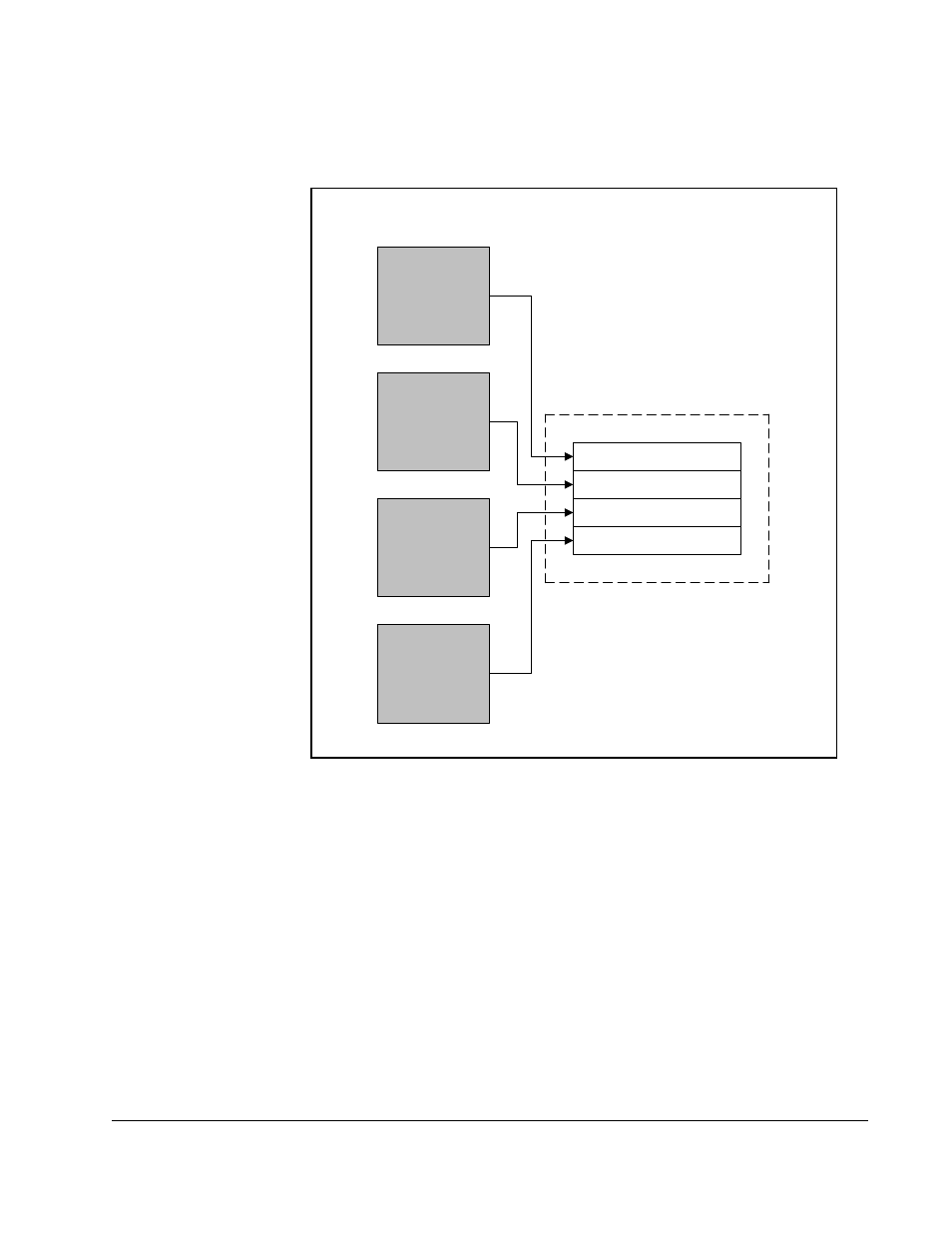

Figure 4.9 – Signal Selection for Network Output Registers
Refer to the AutoMax Network Communication Option board instruction manual
(D2-3308) for the AutoMax network register map.
Refer to the ControlNet Network Communication Option board instruction manual
(D2-3390) for the ControlNet network register map.
Network Output Register 1
Network Output Register 2
Network Output Register 3
Network Output Register 4
Network Module
P.066
P.067
P.068
0 = Motor KW
display value
.
.
.
12
0 = Motor torque
display value
.
.
.
12
0 = Output power
factor
.
.
.
12
0 = Encoder
counter (x 4)
.
.
.
12
P.069
