Publication 2711-UM014G-EN-P - September 2008 203
Terminal Connections Chapter 12
Compatible Controllers
The RS-232 (DF1) terminals support full duplex communication with
the following controllers.
•
MicroLogix 1000, 1200, 1500 controllers via the communication
port.
•
ControlLogix, CompactLogix, FlexLogix controller via RS-232
port
•
SLC, PLC or MicroLogix 1000, 1200 or 1500 controllers via
1761-Net-DNI modules (for DeviceNet Network).
•
SLC 5/03, SLC 5/04, or SLC 5/05 controllers via Channel 0/DF1
port.
•
PLC-5/10, PLC-5/12, PLC-5/15, or PLC-5/25 controllers via bridge
such as the 1770-KF2, or 1785-KE.
•
Enhanced PLC-5 controllers (for example, PLC-5/11, PLC-5/20,
PLC-5/20C, PLC-5/20E) via Channel 0/DF1 port.
RS-232 (DF1) Terminal Ports
The RS-232 (DF1) PanelView terminals, with catalog numbers ending
in 17, have a single RS-232 communication port supporting DF1 (Full
Duplex) communication port. PanelView terminals with catalog
numbers ending in 16 also have an RS-232 printer/file transfer port.
•
Use the DF1 port to communicate with a logic controller using
DF1 full duplex communication.
•
Use the RS-232 printer/file transfer port to transfer applications
between a computer and the terminal or to connect a printer.
For connection details, see the last section in this chapter.

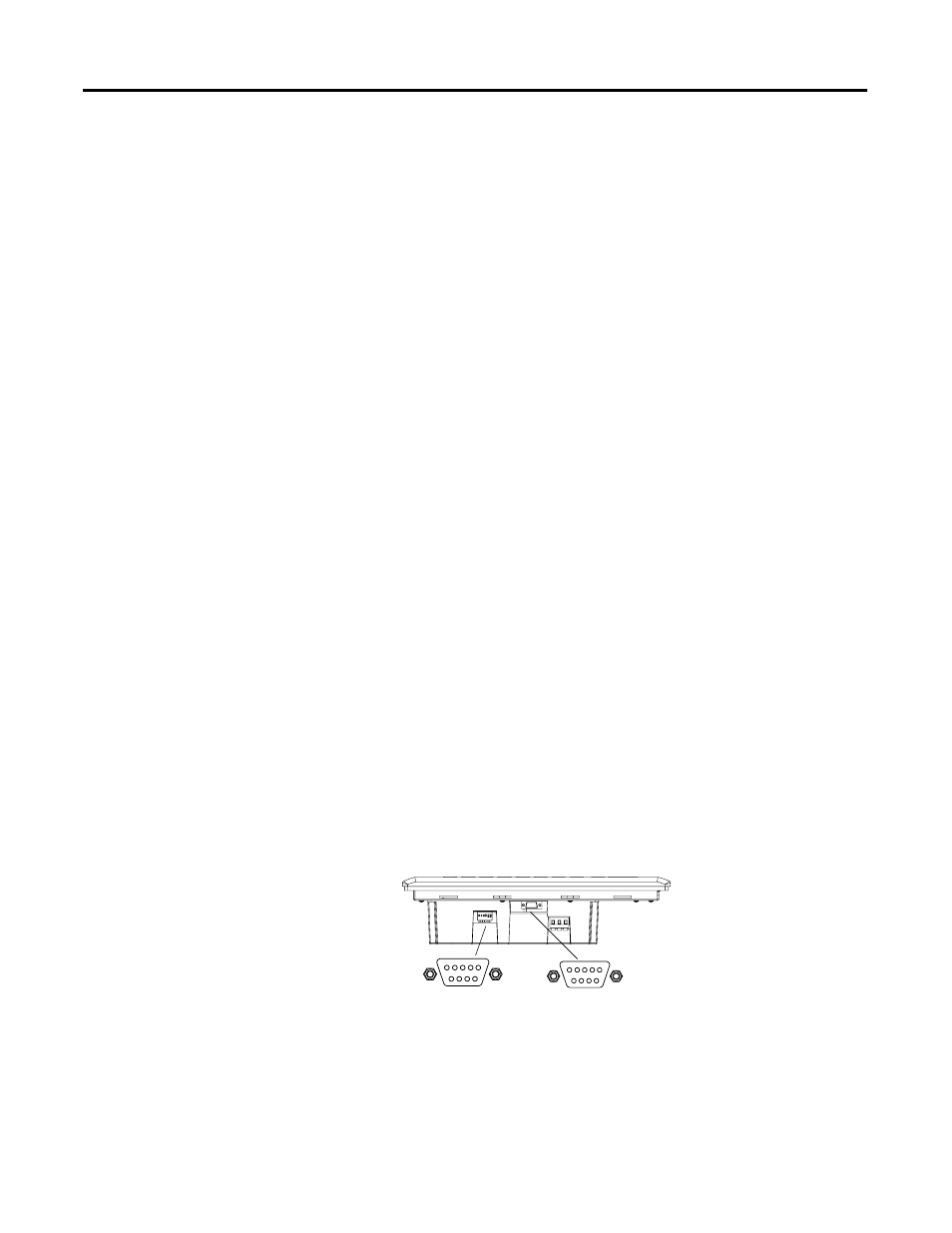

DF1 Port
PanelView 1000 shown
RS-232 File Transfer/Printer Port
Note: The PanelView 300
has one DF1 port which is
used for communication
and transferring
applications.
