Publication 2711-UM014G-EN-P - September 2008 185
Terminal Connections Chapter 12
Remote I/O Terminal
Connections This section describes connections for the remote I/O PanelView
terminals including:
•
remote I/O port.
•
supported controllers.
•
making remote I/O connections.
•
remote I/O pass-through.
Remote I/O Terminal Ports
The remote I/O versions of the PanelView terminal (catalog numbers
ending in 1) have a remote I/O port and an RS-232 port.
Use the remote I/O port to:
•
communicate with the remote I/O scanner port on a PLC
controller.
•
communicate with SLC controllers using a 1747-SN remote I/O
scanner module.
•
communicate with other remote I/O scanners.
•
transfer applications using remote I/O pass-through.
Use the RS-232 Port to:
•
transfer PanelView applications between a computer and the
terminal.
•
connect a printer.
For details on connecting to the RS-232 port, see page 223.

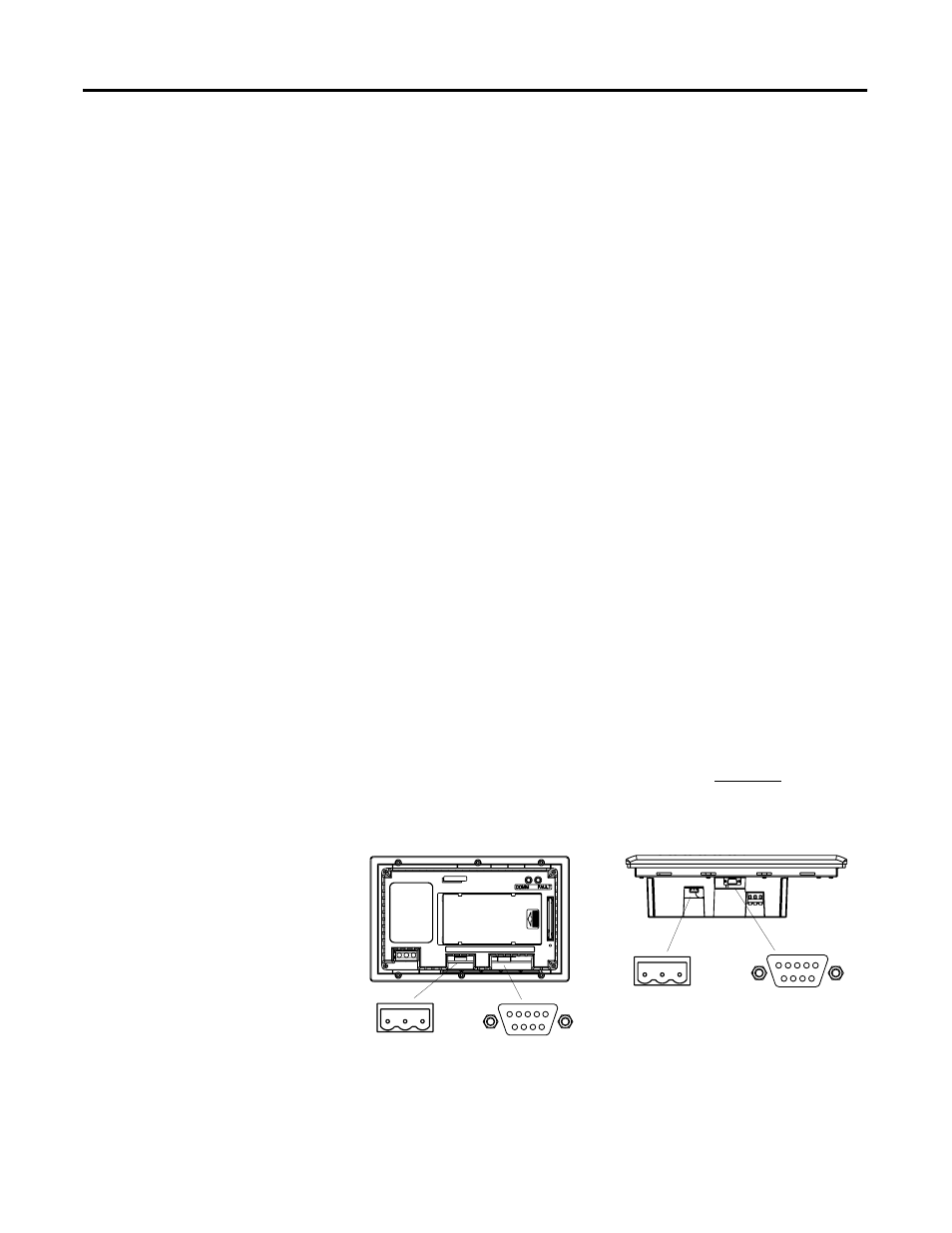

Remote I/O Port
Remote I/O Port RS-232 Port
RS-232 Port
PanelView 1000 Keypad PanelView 550 Keypad
