Publication 2711-UM014G-EN-P - September 2008 165
Installing the PV900/1000 Terminals Chapter 10

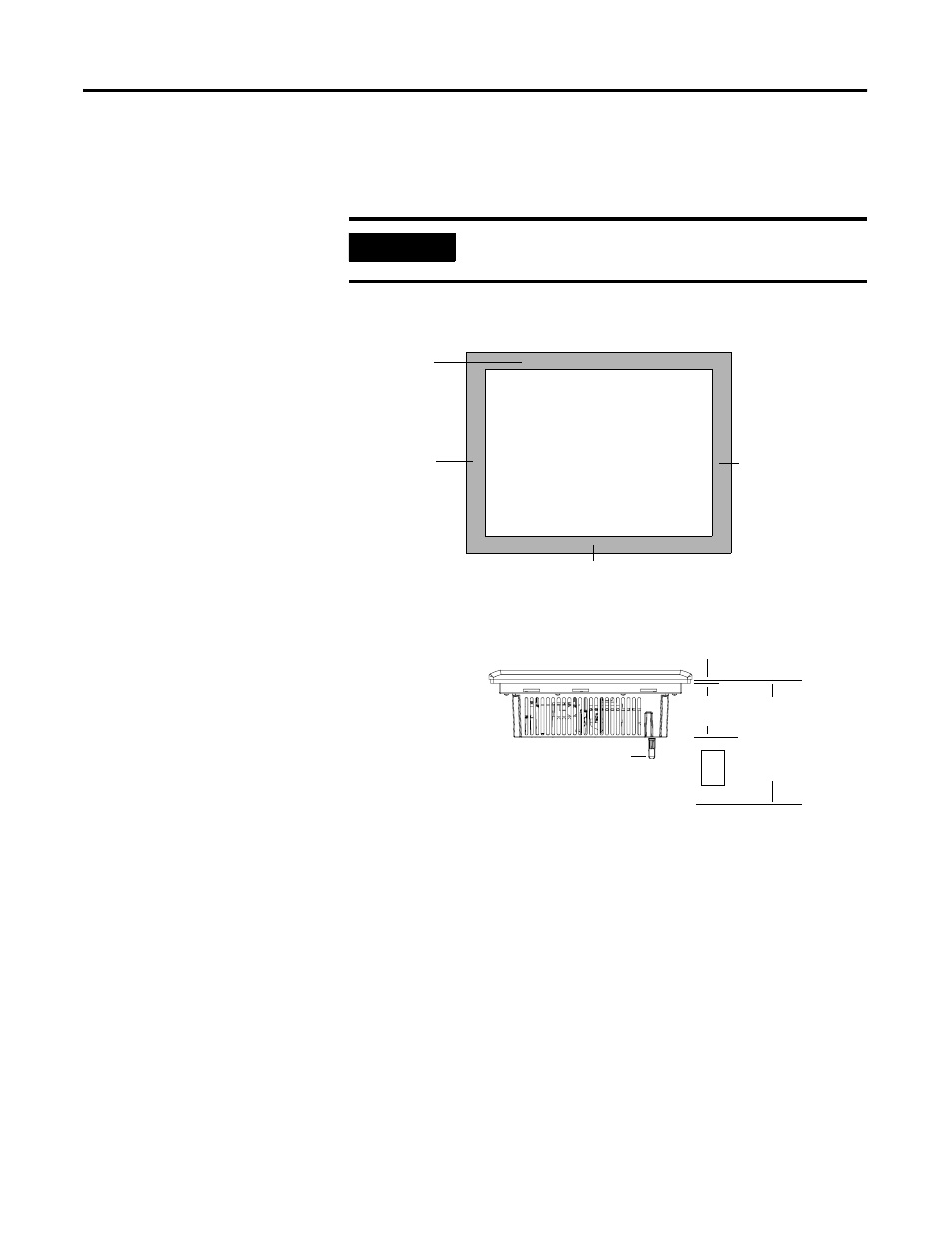

Clearances Allow adequate space for mounting, air flow, maintenance, memory
card and legend strip installation.
IMPORTANT
If using a memory card and/or memory card retainer, allow a
back clearance to load the card.
Leave 51 mm (2.0 in.) for
Mounting and Air Flow
Leave 51 mm (2.0 in.) for Mounting
and Wiring Connections
Leave 51 mm (2.0 in.)
for Mounting, Air
Flow and Legend
Insert
Leave 51 mm (2.0 in.) for
Mounting and Air Flow
Terminal Cutout - Front View
Use full size template
shipped with terminal
Side, Top and Bottom Clearances
6.9 mm
(0.27 in.)
90 mm
(3.54 in.)
Card
222 mm (8.73 in.) is
required to insert and
remove a memory
card with the memory
card retainer.
Back Clearance
Memory Card Retainer
