188 Publication 2711-UM014G-EN-P - September 2008
Chapter 12 Terminal Connections
Remote I/O Pass-through using DH+
Remote I/O terminals allow the transfer of applications from a
computer on the Allen-Bradley DH+ link to a PLC-5 or SLC-5/04
controller. The controller passes data to the PanelView terminal over
the remote I/O network.
Follow these steps to transfer an application using remote I/O
pass-through:
1. A Data Highway Plus Interface Module must be installed in the
computer.
Allen-Bradley offers a variety of interface cards for a DH+
connection between a computer and a controller.
2. The appropriate communication driver must be configured on
the computer.
3. Connect the computer to the PLC.
See the instruction sheets provided with the communication
module or card to select the proper cable.
4. Connect the cable between the computer and the controller.
5. Pass-through must be enabled for the terminal.
6. Check the RIO Configuration screen on the terminal’s
Configuration Mode menu.
Pass-through is enabled using the out-of-box application
provided with the terminal or when defining remote I/O
parameters in the PanelBuilder32 software.

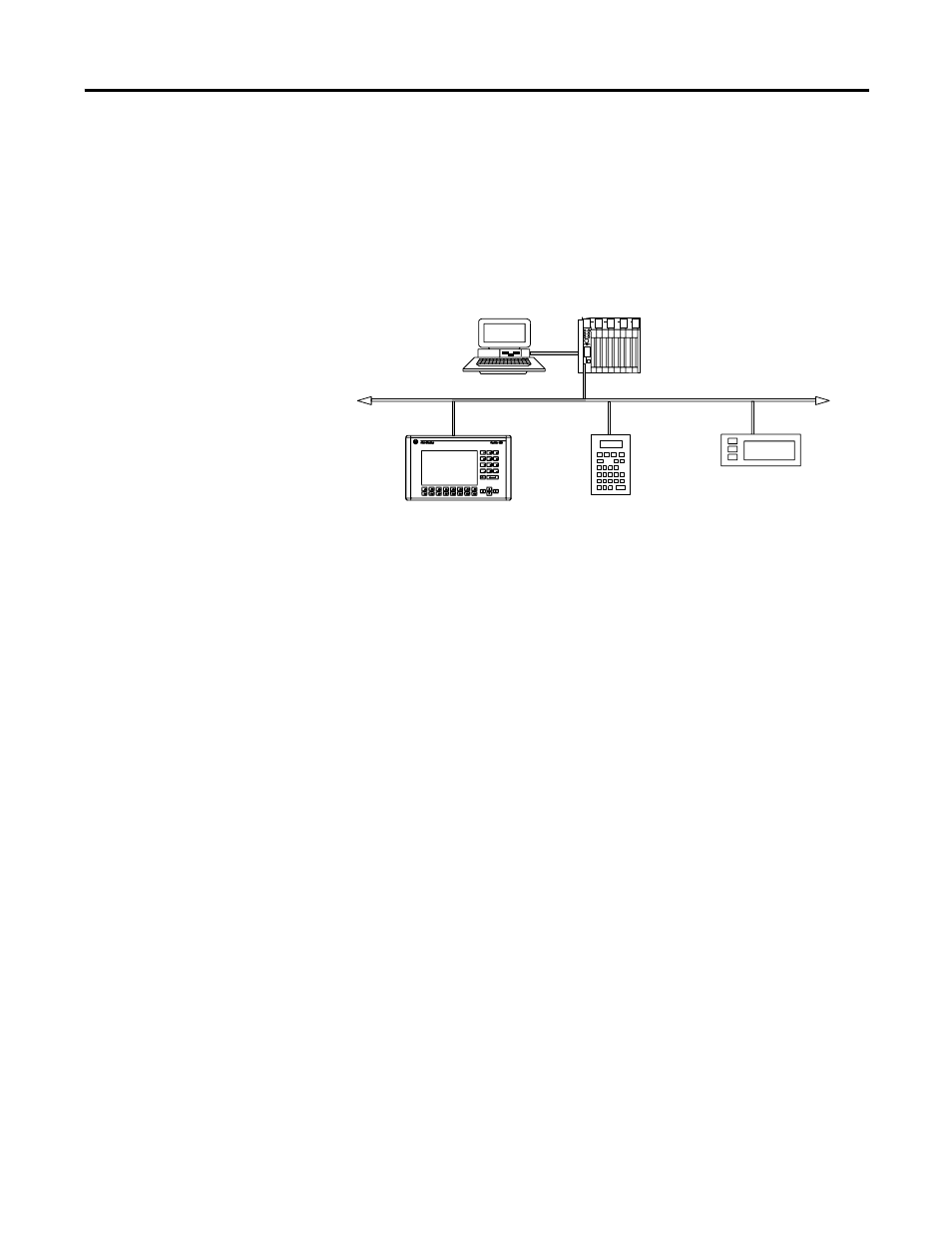

DH+
PLC-5
Remote I/O Network
PanelView
Computer Remote I/O
Pass-through
