Publication 2711-UM014G-EN-P - September 2008 175
Installing the PV1400 Terminal Chapter 11
Mount Terminal with Mounting Studs
Follow these steps to install the PV1400 terminal in a panel by using
mounting studs.
1. Cut an opening in the panel by using the panel cutout template
shipped with the terminal.
2. Carefully drill 5.56 mm (7/32 in.) holes for studs as indicated.
3. Install the mounting studs (Cat. No. 2711-NP3) using a 7/32-inch
socket on the end of the stud.
4. Turn stud clockwise and tighten to approximately 1.13 Nm
(10 in.-lb).
5. Make sure the sealing gasket is properly positioned on the
terminal.
This gasket forms a compression type seal (NEMA Type 4). Do
not use sealing compounds
.
6. Place the PV1400 terminal in the panel cutout aligning the studs
with the mounting holes.
ATTENTION
Be careful not to damage the sealing gasket when
installing or removing studs. A damaged seal may result
in damage to the PanelView terminal and other panel
components due to a leaking seal.

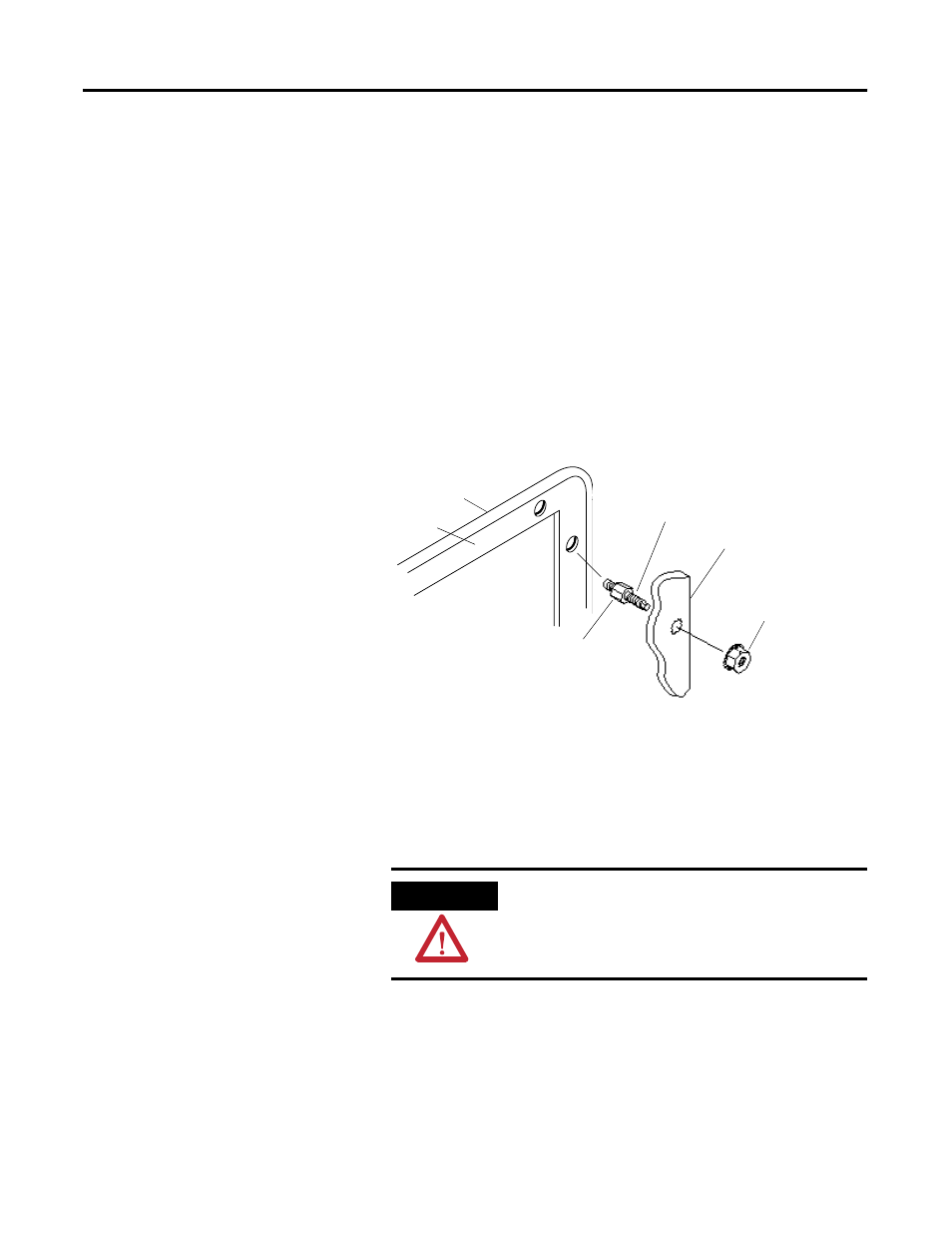

Spacer
Bezel
Gasket
Mounting Studs
(Qty 18 for Keypad, 12 for Touch)
Self-locking Nuts
Panel or Enclosure
