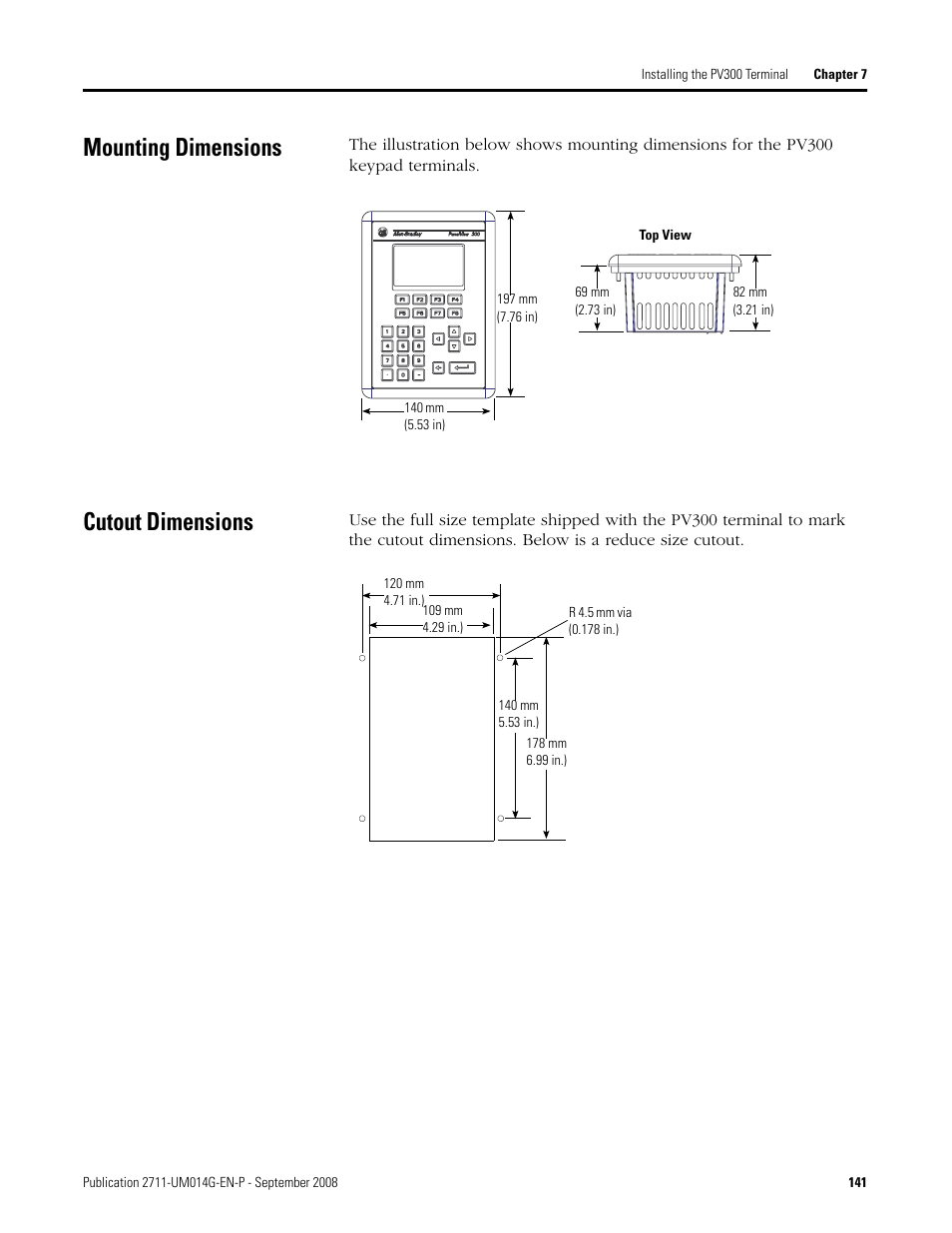

Mounting dimensions, Cutout dimensions, Mounting dimensions cutout dimensions – Rockwell Automation 2711 Standard PanelView Operator Terminal User Manual User Manual
Page 141
