Chapter 2
Introduction

2–2

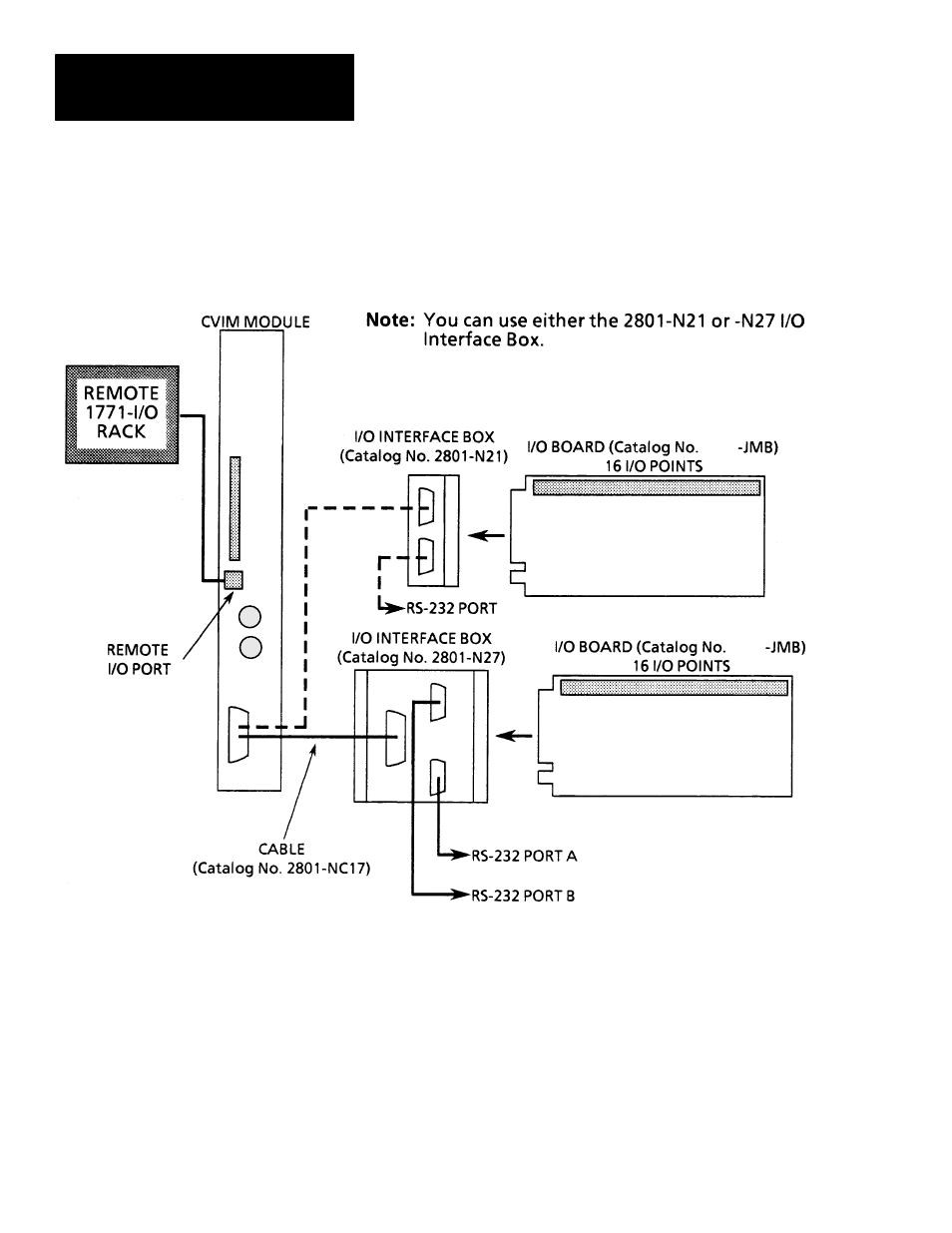

Figure 2.1
CVIM Module Communications Ports

However if you are using the 2801-N27

1771

1771

I/O Interface Box with CVIM Module Series A hardware,

only RS–232 port A is active.

How Does the Host Device
Read Configuration/Results
Information? (cont’d)
