Enable/disable outputs, Forcing local i/o – Rockwell Automation 5370 CVIM Communications Manual User Manual
Page 101

Chapter 5
Using the RS-232 Ports
5–31
Use this command to enable or disable discrete outputs or local Outputs I/O.
Use the following commands:
This command disables the outputs.
This command enables the outputs.
If the BCC is not valid, the CVIM module will respond with a DLE NAK
and the command will not be executed.
If the BCC is valid, the CVIM module will respond with a DLE ACK. Then
the CVIM module will validate the command structure. If the command is
valid, the CVIM module will execute the command. If the command
structure is invalid, the CVIM module will not execute the command or
respond.
Use the force command to turn the local I/O outputs either on or off. This
function can only be executed once per command. The only valid objects are

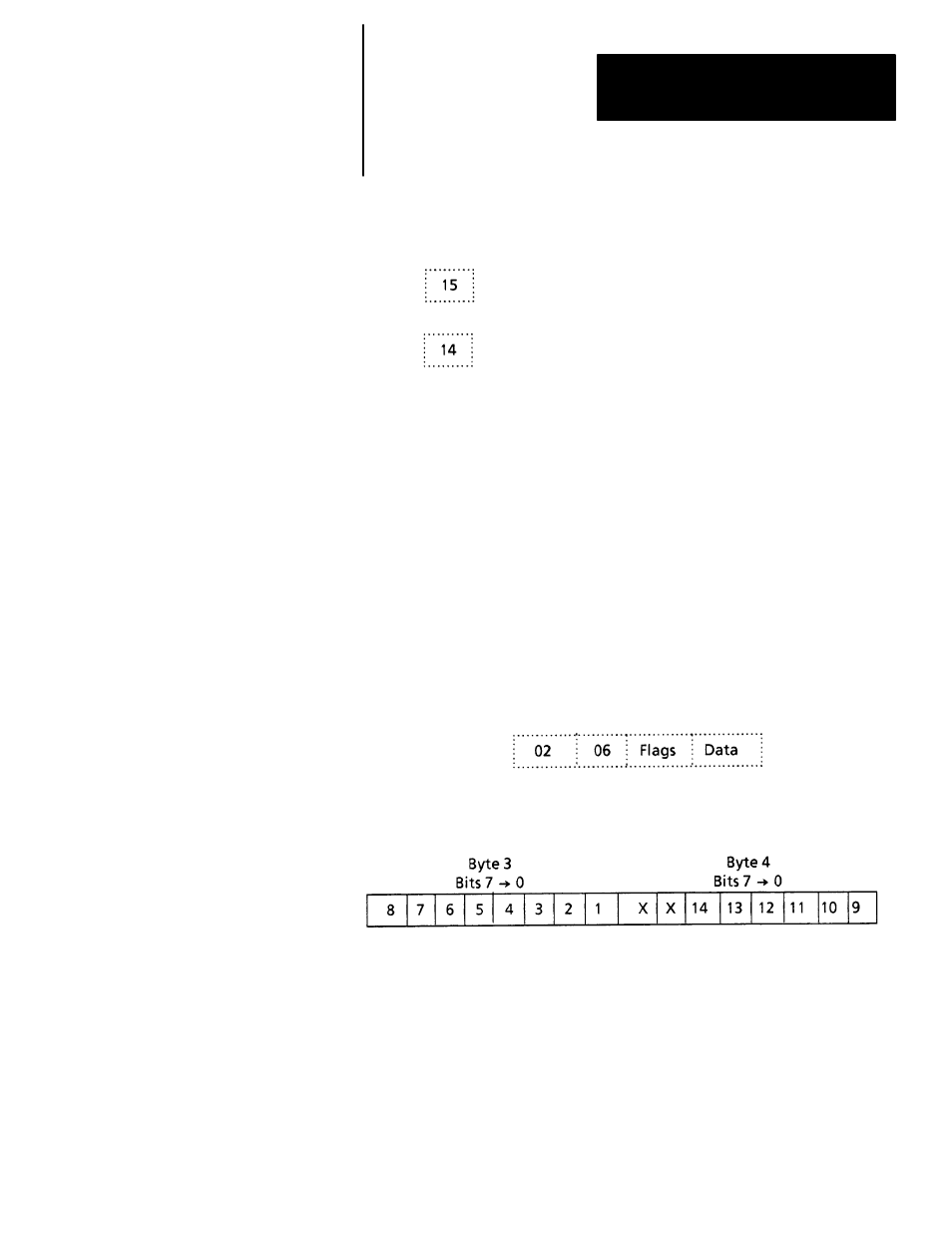

the fourteen discrete outputs. This command has the following structure:
Where the flags specify outputs 1 through 14:
Set individual Bits to select outputs 1 through 14
The data in this command indicates on or off (1 = ON and 0 = OFF).
Enable/Disable Outputs
Forcing Local I/O
