Rockwell Automation 1771-QDC, D17716.5.87(Passport) CLAMP AND EJECT MODE User Manual
Page 106

Load Initial Configuration Values
Chapter 7
7-30

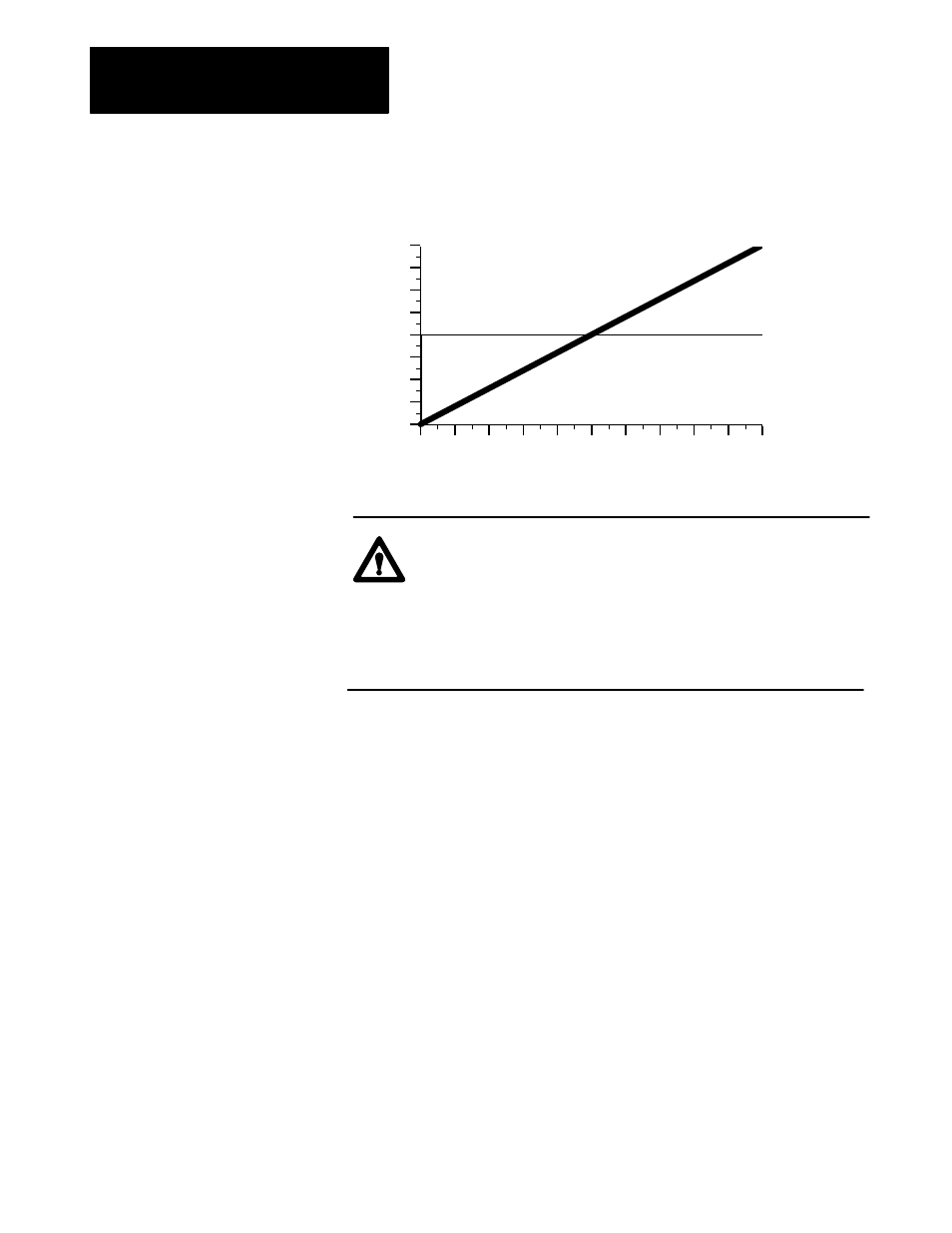

Figure 7.1
SetĆOutput Operations
% Output Requested
Output V
oltage
-10
-8
-5
-3
0
3
5
8
10
0
10 20 30 40 50 60 70 80 90 100
ATTENTION: A value of zero in set-output words does not
necessarily correspond to zero pressure or flow. If you have
configured jumper E11, E12, E15, and/or E16 for bi-directional
valve operation, an output of 0% gives –10V dc, 50% gives
0V dc. Amplifier electronics or spool-null offsets may also
allow pressure or flow at zero volts signal input. Consult your
valve and amplifier specifications for more details.
Enter values for all Unselected Valve Set-outputs that are representative of
the signal output percentages required to drive the unselected valves during
the respective profiles. The valve spanning procedures presented in
chapter 9 require that your unselected valves be driven by a signal level
similar to how they are set during a normal production run. A detailed
discussion of this type of setpoint is presented in chapter 10 to highlight
the process considerations that impend modification of these parameters.
Additional information may also be obtained by referencing Section 3 of
the Plastic Molding Module Reference Manual (pub. no. 1771-6.5.88).
