Rockwell Automation Publication 520COM-UM001B-EN-E - March 2013 83
Chapter
7
Using Multi-Drive Mode
This chapter provides instructions on how to configure a CompactLogix
controller to use the PowerFlex 525 drive in Multi-drive mode.
Single-Drive Mode vs. Multi-
Drive Mode Single-drive mode is a typical network installation, where a single EtherNet/IP
node consists of a single drive with an EtherNet/IP adapter.

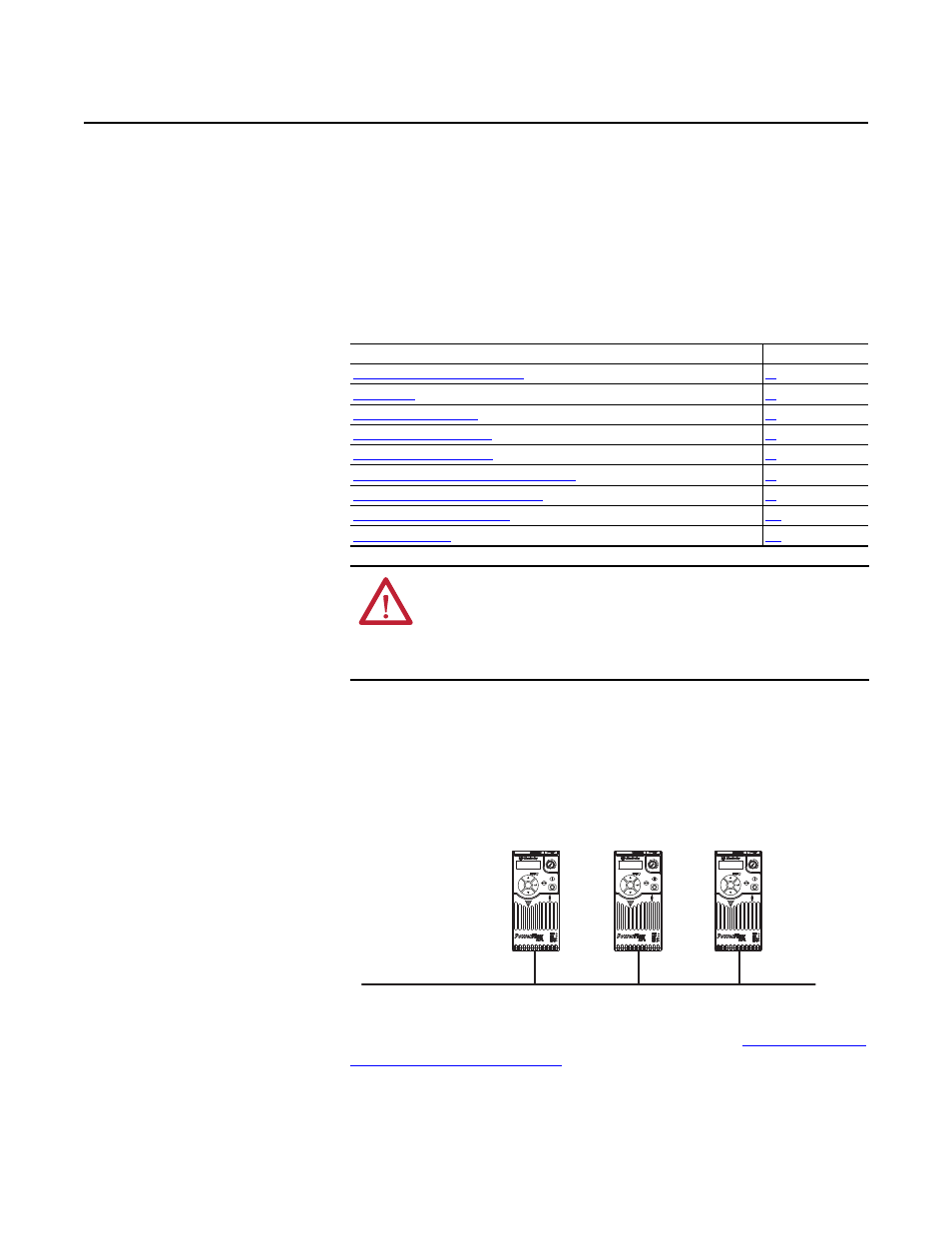

Single-Drive Mode Example for Network
Multi-drive mode is an alternative to the typical network installation, where a
single EtherNet/IP node can consist of one to five drives (see
Multi-Drive Mode
Example for Network on page 84 ). The first drive must be a PowerFlex 525 drive.
The remaining drives can be any PowerFlex drive which supports Multi-drive
mode.
Topic Page
Single-Drive Mode vs. Multi-Drive Mode 83
System Wiring 85
Understanding the I/O Image 85
Configuring the RS-485 Network 86
Using Multi-Drive Add-On Profile 87
Multi-Drive Ladder Logic Program for Generic Profile 97
CompactLogix Example Using Generic Profile 99
Multi-Drive Mode Explicit Messaging 107
Additional Information 108
ATTENTION: Risk of injury or equipment damage exists. The examples in this
publication are intended solely for purposes of example. There are many
variables and requirements with any application. Rockwell Automation, Inc.
does not assume responsibility or liability (to include intellectual property
liability) for actual use of the examples shown in this publication.
Esc Sel Esc Sel Esc Sel
One drive per node
EtherNet/IP
PowerFlex 525 PowerFlex 525 PowerFlex 525
