Chapter 3
Configuring the Adapter
4.
Edit the following:
5.
Click OK to apply the settings. Devices on the network issuing BOOTP/
DHCP requests appear in the BOOTP/DHCP Request History list.
6.

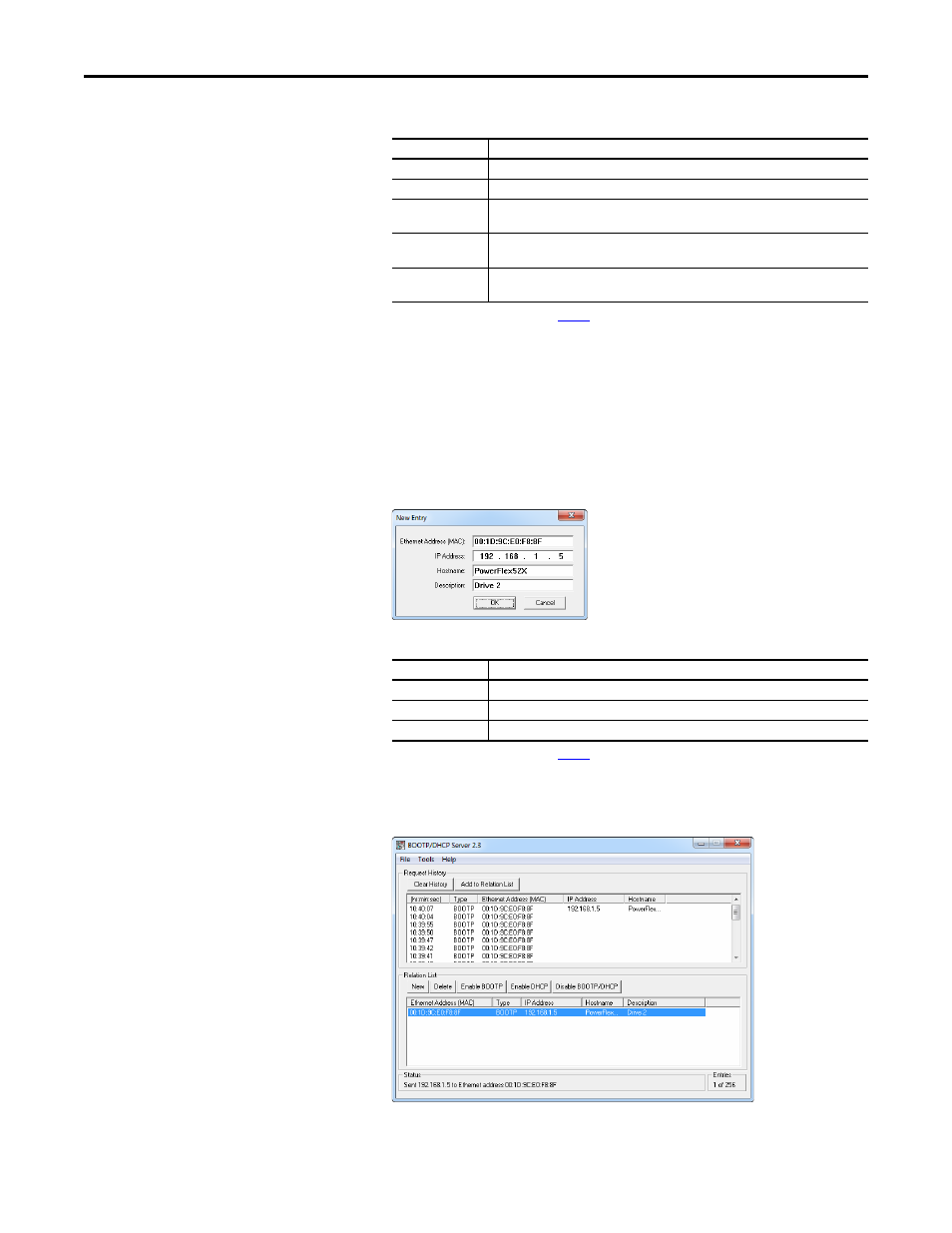

In the BOOTP/DHCP Request History list, either double-click the
adapter’s Ethernet Address (MAC) noted in Step 1, or click New in the
Relation List. The New Entry window appears. In the first case, the
Ethernet Address (MAC) is automatically entered. In the latter case, you
must manually enter it.
7.
Edit the following:
8.
Click OK to apply the settings. The adapter appears in the Relation List
with the new settings.
Box
Type
Subnet Mask
(1)
(1) For definitions of these terms, see the
The subnet mask for the adapter’s network.
Gateway
(1)
The IP address of the gateway device on the adapter’s network.
Primary DNS
The address of the primary DNS server to be used on the local end of the link for
negotiating with remote devices.
Secondary DNS
Optional – the address of the secondary DNS server to be used on the local end of the
link for negotiating with remote devices when the primary DNS server is unavailable.
Domain Name
The text name corresponding to the numeric IP address that was assigned to the server
that controls the network.
Box
Type
IP Address
(1)
(1) For definitions of these terms, see the
A unique IP address for the adapter
Host Name
Optional
Description
Optional
