Rockwell Automation Publication 520COM-UM001B-EN-E - March 2013 73
Using Explicit Messaging Chapter 6

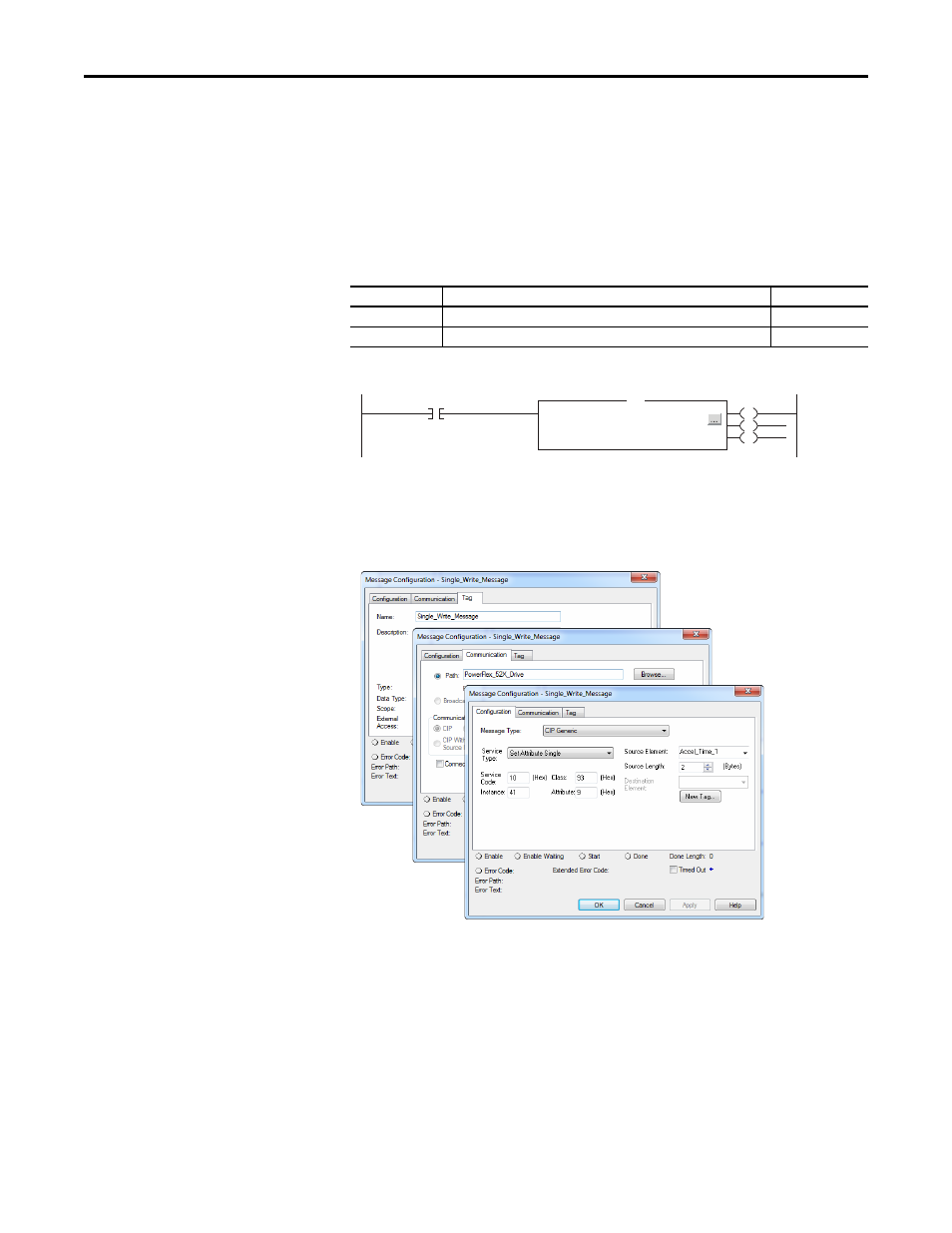

CompactLogix Example Ladder Logic Program to Write a Single
Parameter
A Set Attribute Single message is used to write to a single parameter. This write
message example writes a value to the 16-bit parameter P041 [Accel Time 1] in a
PowerFlex 525 drive.
Example Controller Tags to Write a Single Parameter
Example Ladder Logic to Write a Single Parameter
CompactLogix – Formatting a Messageto Write a Single Parameter
Set Attribute Single Message Configuration Screens
Operation Controller Tags for Single Write Message Data Types
XIC Execute_Single_Write_Message BOOL
MSG Single_Write_Message MESSAGE
Execute_Single_Write_Message
Message
Message Control Single_Write_Message
MSG
EN
DN
ER
