Chapter 4 Configuring the I/O
ADC and Logix Memory
Starting in RSLogix 5000 version 16, drive configuration settings have been
stored in the project's ACD file which is downloaded and stored in the controller.
The majority of Logix controllers have megabytes of memory available, so this
typically should not be an issue. You can monitor Logix memory usage in the
application in the Controller Properties > Memory tab.
Storing the Drive’s and Peripheral’s Firmware in the Logix Controller (Firmware Supervisor)
The Logix Firmware Supervisor function has been extended to provide firmware
updates for the peripherals connected to the drive. To configure the controller to
check and refresh the correct firmware for the drive and peripherals, perform the
following steps:
1. Verify that “Exact Match” keying is selected in the drive’s and peripherals’
properties screens (the drive’s is in the General tab; the peripherals’ are
under the Drive tab, after right-clicking on each peripheral and choosing
Properties
).
2. Verify that ControlFlash firmware kits for each revision of firmware for
each device that should be stored in the controller have been installed on
the PC running RSLogix 5000/Logix Designer.
3. Verify that a CompactFlash or other storage card has been installed in the
controller.
4. Use RSLogix 5000/Logix Designer to go online with the controller in
Program mode. Download your program if you have not done so already.

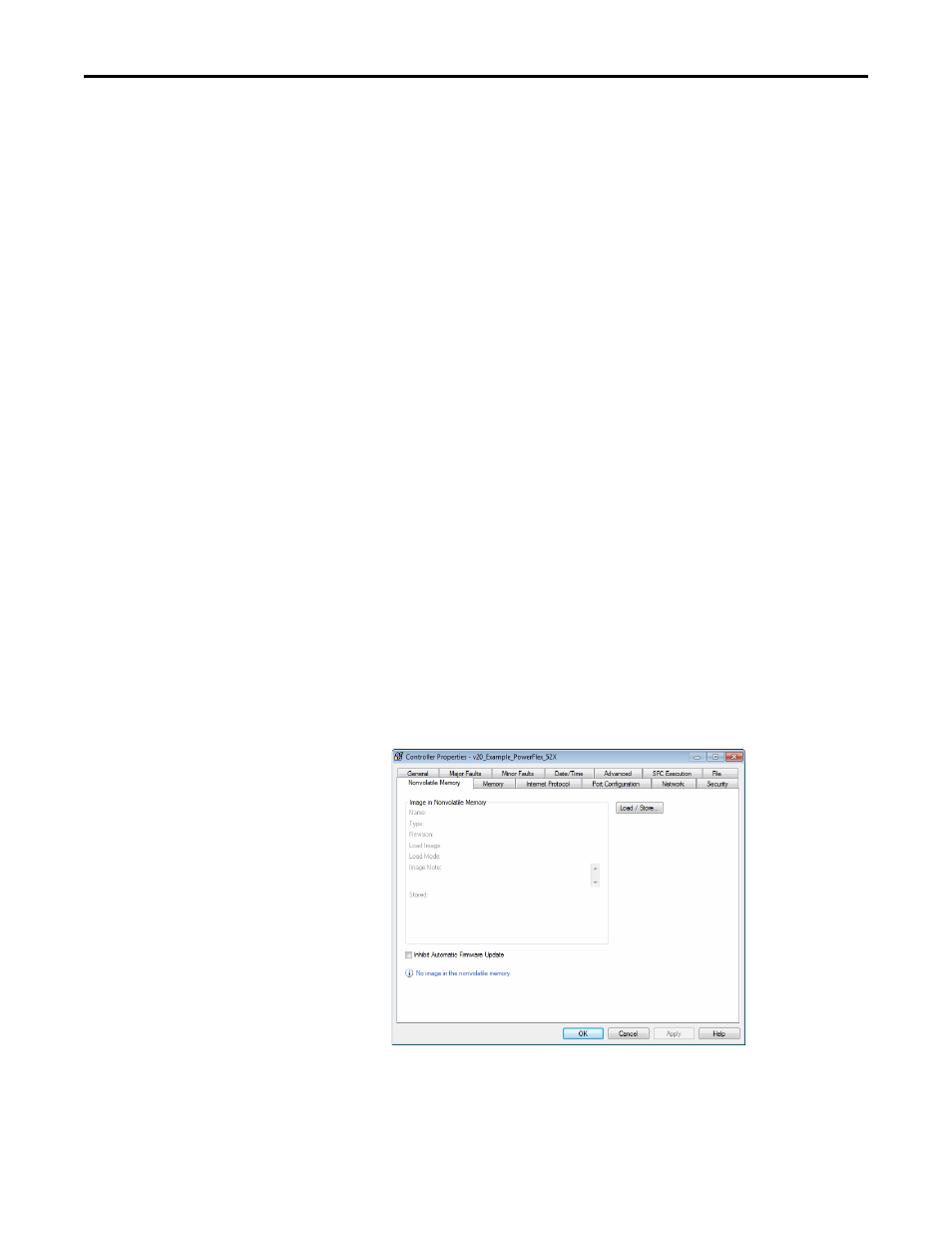

5. In the treeview, right-click on the controller folder at the top of the
Controller Organizer and choose Properties. On the Controller
Properties window, select the Nonvolatile Memory tab.
