Configuring the I/O
Chapter 4
1.

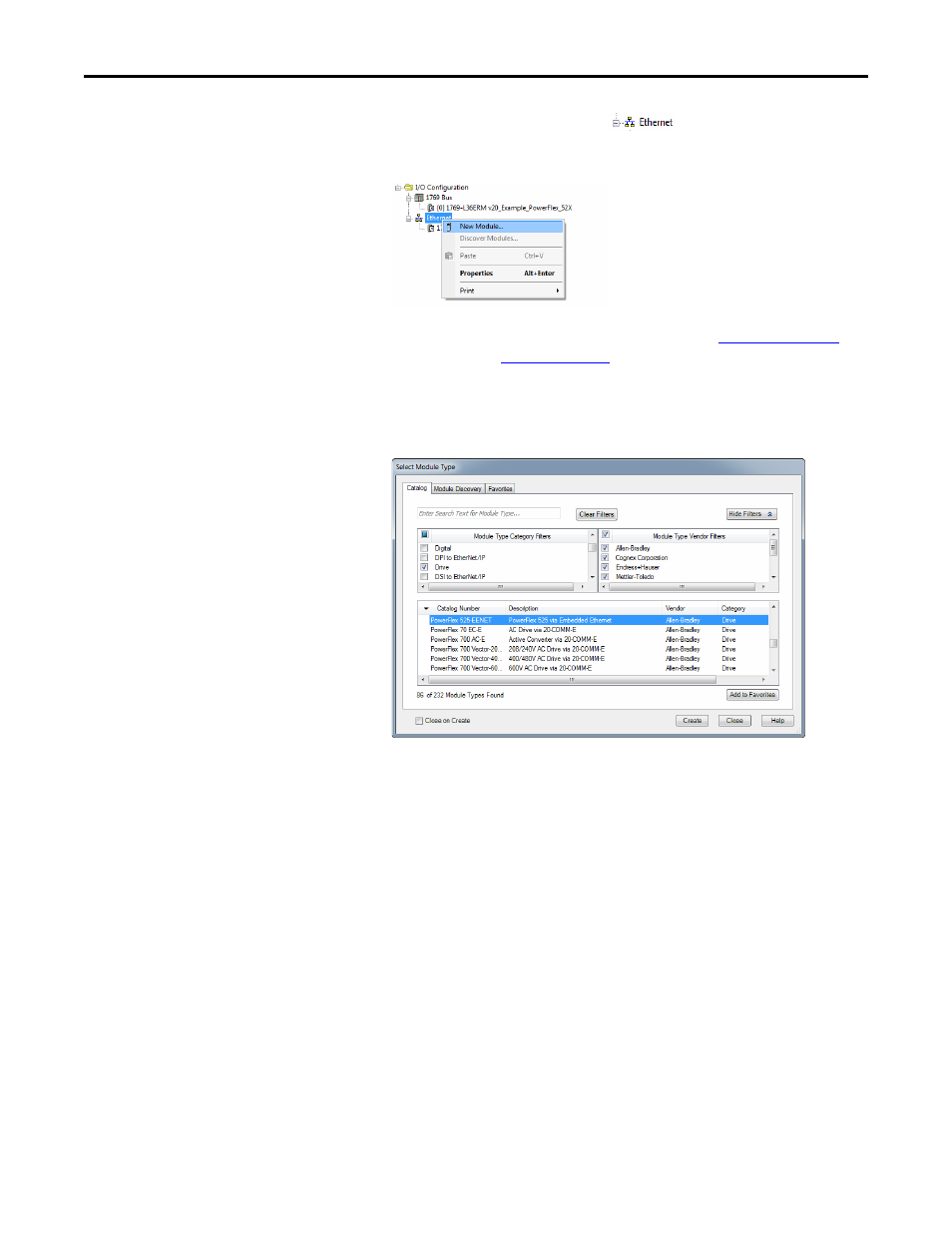

In the treeview, right-click on the
icon and select New
Module…
to display the Select Module window. Expand the Drives group
to display all of the available drives with their communication adapters.
2.
In the Select Module Type window, select the drive and its connected
adapter from the list. For this example, we selected “PowerFlex 525-
EENET.” Then click Create. The drive’s New Module window appears.
TIP
If the PowerFlex drive is not shown, go to
wnload the latest drive Add-On Profile.
