Rockwell Automation 25B PowerFlex 525 Embedded EtherNet/IP Adapter User Manual
Page 50
50
Rockwell Automation Publication 520COM-UM001B-EN-E - March 2013
Chapter 4
Configuring the I/O
Configuring a PowerFlex 525 Drive for ADC
ADC is configured within the AOP of the PowerFlex 525 drive. Start by creating
or opening a PowerFlex 525 drive in the RSLogix 5000/Logix Designer I/O
Configuration folder.

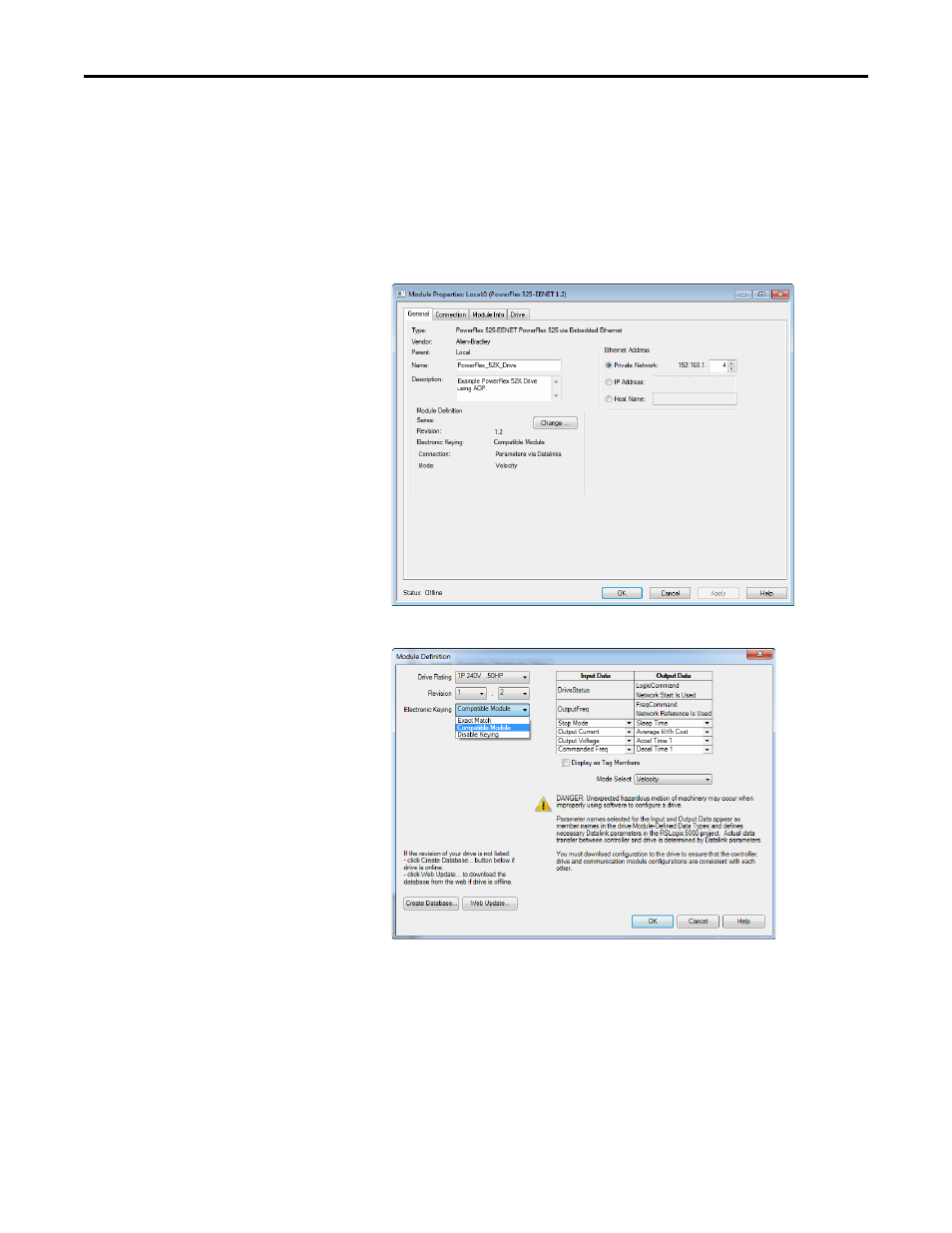

1.
In the Module Properties window, select the General tab and click
Change…
to open the Module Definition window.
2.
Select the appropriate Electronic Keying for your application.
