Page 11: Chapter
Rockwell Automation Publication 520COM-UM001B-EN-E - March 2013
11
Chapter
1
Getting Started
The EtherNet/IP adapter, embedded on the Main Control Board in
PowerFlex 525 drives, is used for network communication.
Components

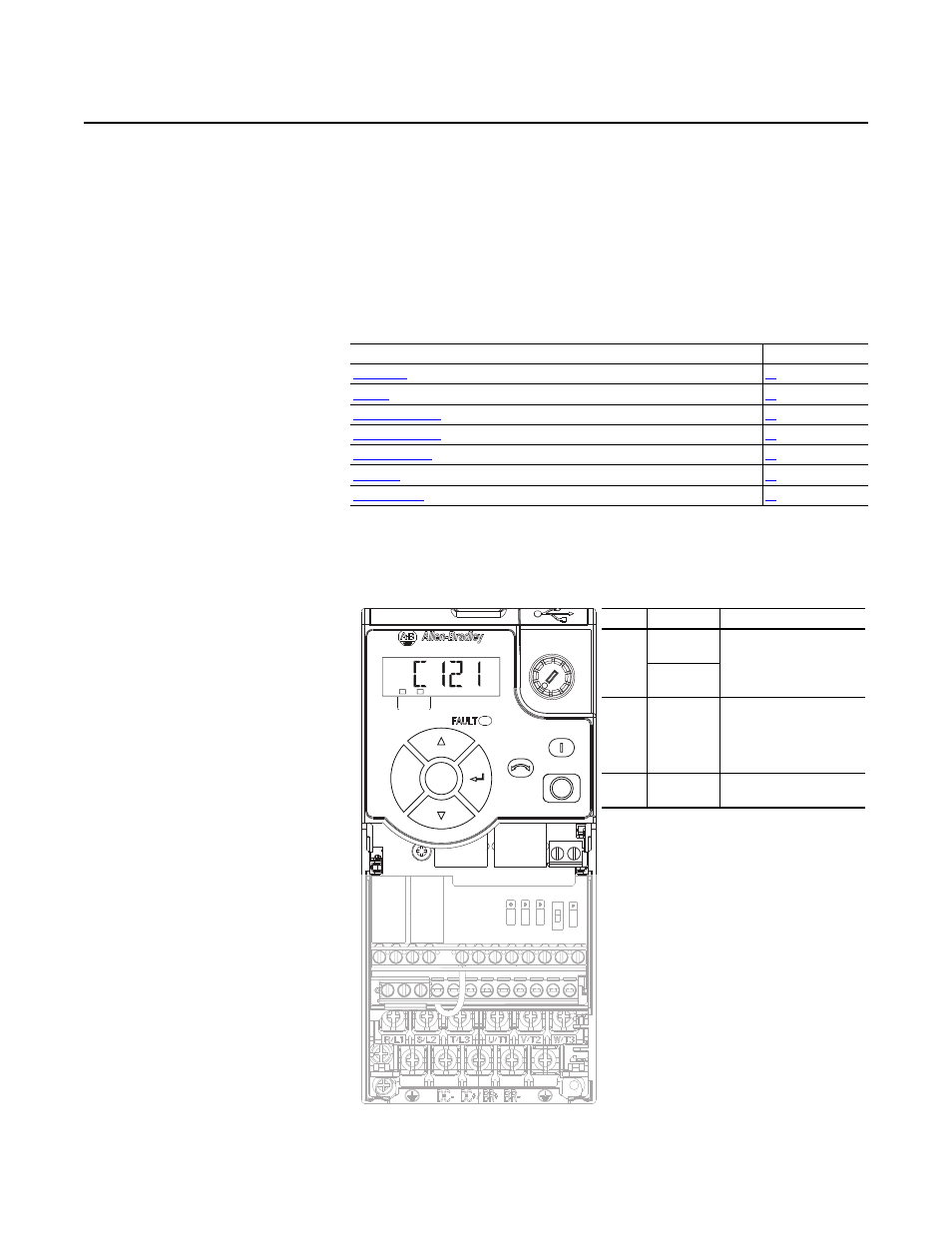

Components of the Embedded EtherNet/IP Adapter
Topic
Page
FWD
ENET LINK
EtherNet/IP
Esc
Sel
Item
Part
Description
➊
ENET status
indicator
Two LEDs that indicate the status
of the embedded EtherNet/IP
adapter and network
communications.
LINK status
indicator
➋
Ethernet port
An RJ-45 connector for the
Ethernet cable. It is CAT-5
compliant to ensure reliable
data transfer on 100Base-Tx
Ethernet connections.
➌
DSI port
An RS485 cable connection for
handheld and remote options.
Shown with control module cover removed
➊
➋
➌
