20 Rockwell Automation Publication 520COM-UM001B-EN-E - March 2013
Chapter 2 Setting Up the Adapter

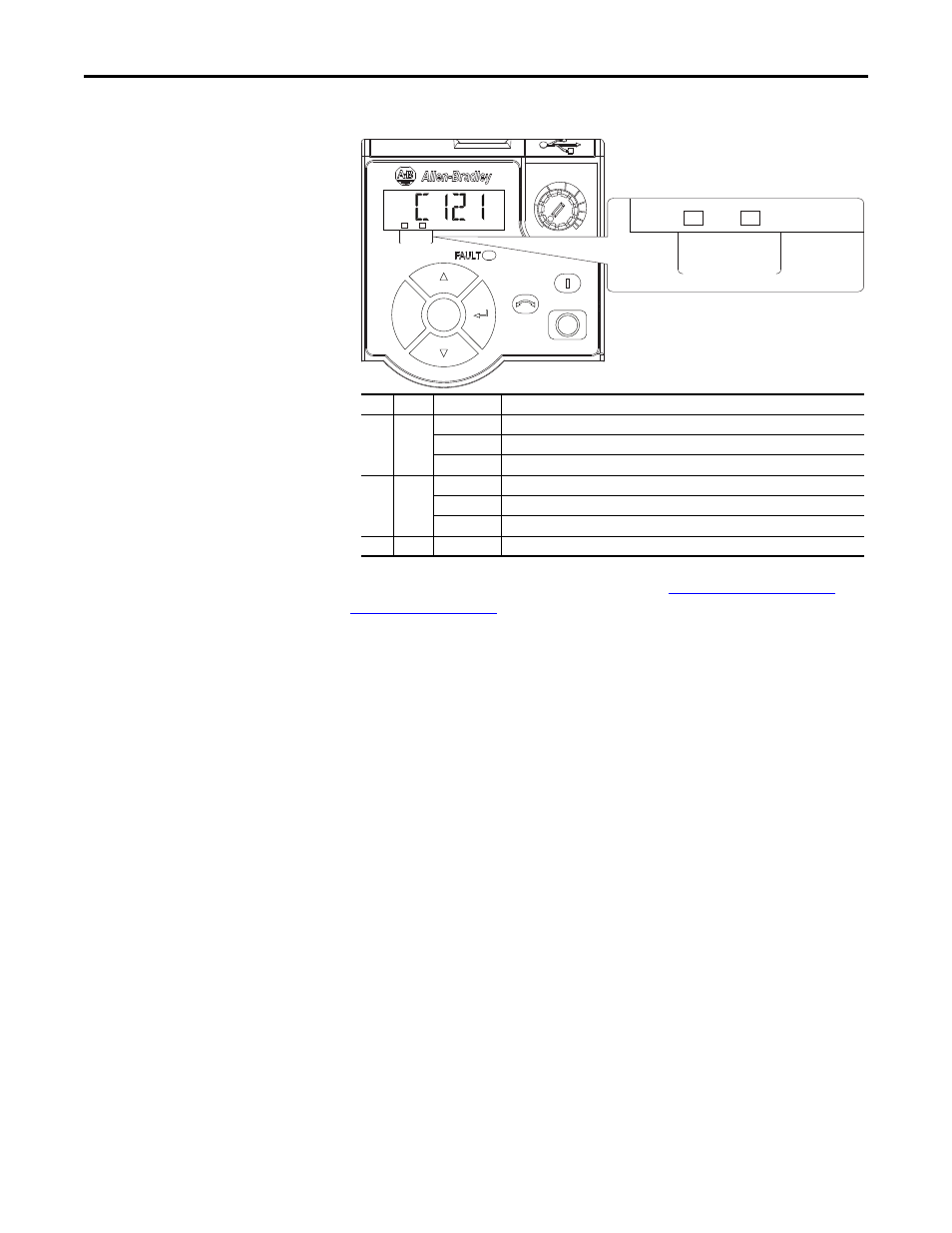

Drive and Adapter Status Indicators
For more details on status indicator operation see Understanding the Status
Indicators on page 111 .
Configuring/Verifying Key Drive Parameters
The PowerFlex 525 drive can be separately configured for the control and
Reference functions in various combinations. For example, you could set the
drive to have its control come from a peripheral or terminal block with the
Reference coming from the network. Or you could set the drive to have its
control come from the network with the Reference coming from another
peripheral or terminal block. Or you could set the drive to have both its control
and Reference come from the network.
Configuring the drive parameters can be done using the drive’s keypad, a HIM,
RSLogix 5000/Logix Designer, or Connected Components Workbench. In the
following example, the drive will receive the Logic Command and Reference
from the network.
1. Set the value of drive parameter P046 [Start Source 1]
to 5 “EtherNet/IP”.
2. Set the value of drive parameter P047 [Speed Reference1]
to 15 “EtherNet/IP”.
TIP The PowerFlex 525 drive supports up to three control functions and
three Reference functions.
Esc Sel
FWD
ENET LINK
EtherNet/IP
ENET LINK
EtherNet/IP
Item Name State Description
➊ ENET Off Adapter is not connected to the network.
Steady Adapter is connected to the network and drive is controlled through Ethernet.
Flashing Adapter is connected to the network but drive is not controlled through Ethernet.
➋ LINK Off Adapter is not connected to the network
Steady Adapter is connected to the network but not transmitting data.
Flashing Adapter is connected to the network and transmitting data.
➌ FAULT Flashing Red Indicates drive is faulted.
➊ ➋
➌
