CANopen
5 Commissioning
5-2
L
BA2175 EN 2.0
5.2 Controller address setting
Tip!
Please ensure that the addresses are not the same when using several controllers.

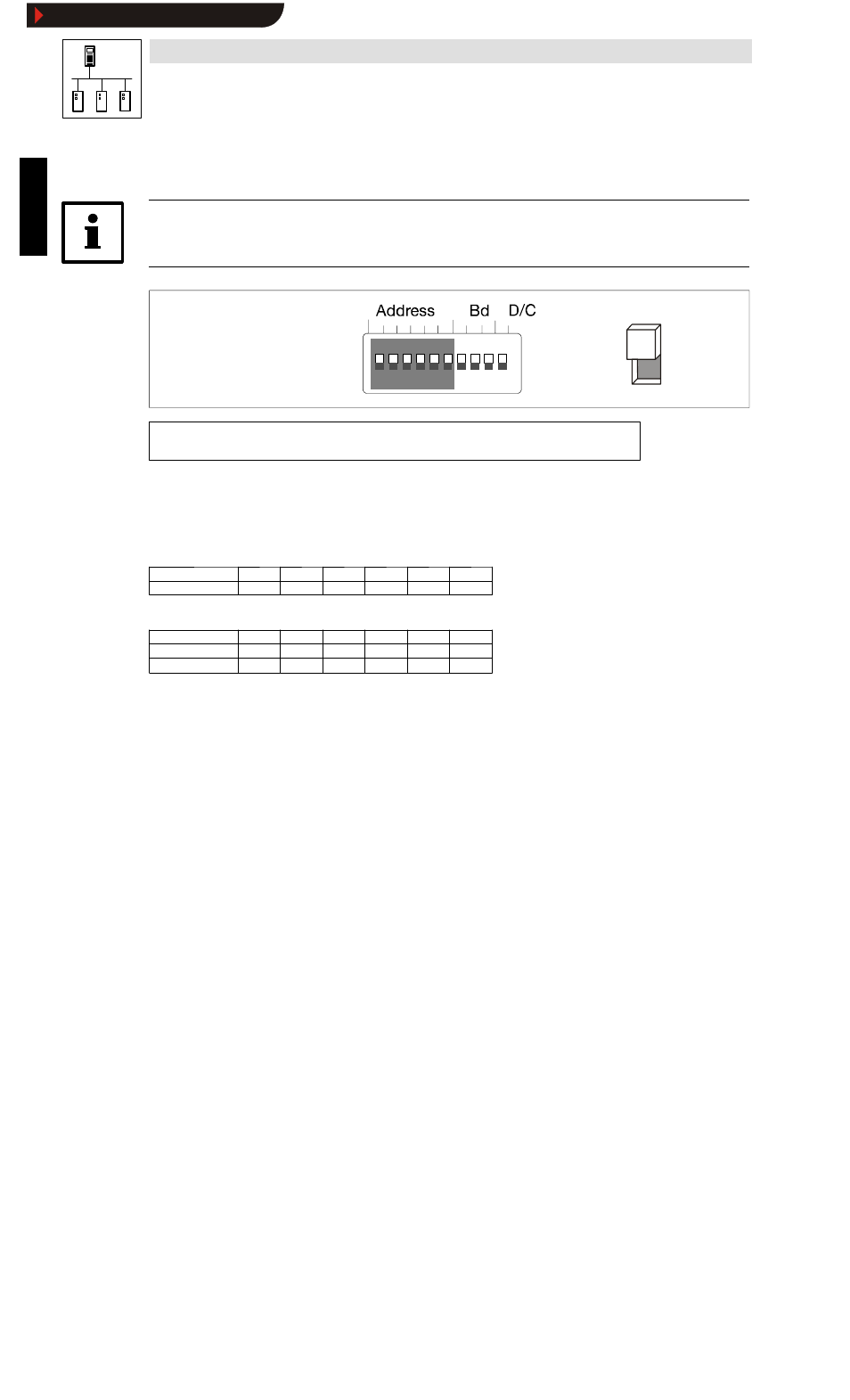

1 2 3 4 5 6 7 8 9 10
OPEN
ON
OFF
Address
dec
= S
6
⋅ 2 0 + S
5
⋅ 2 1 + S
4
⋅ 2 2 + S
3
⋅ 2 3 + S
2
⋅ 2 4 + S
1
⋅ 2 5
The address calculation (decimal number) is based on the positions of switches S1 ... S6 (’0’ = OFF
and ’1’ = ON). The numbers must be entered into the equation above.
The equation also indicates the valency of a switch. The sum of valencies results in the controller
address to be set:
Switch valencies:
Switch S1 S2 S3 S4 S5 S6
Valency 32 16 8 4 2 1
Example:
Switch S1 S2 S3 S4 S5 S6
Switch position ON ON ON OFF OFF OFF
Address (= 56) 32 16 8 0 0 0
