DeviceNet
14 Appendix
14-15
L
BA2175 EN 2.0
14.1.5 Communication between PC and PLC
PC and PLC communicate via the RS232 interface of the PC and the CPU of the PLC
(ALLEN-BRADLEY) (see Tab. 14-1,

).
Communication is controlled by the “ RSLinx” program. It must be configured and activated before
online programming starts.
Tip!
“ RS Linx” must not be closed, but minimised (the bottom task bar must show the symbol to indicate
that communication is possible).
1. Start “ RS Linx”
2. Select Communication / Configure drivers
3. Select RS-232 DF1 devices . Confirm with Add new. The connection is automatically
configured. Find a name with max. 15 characters.

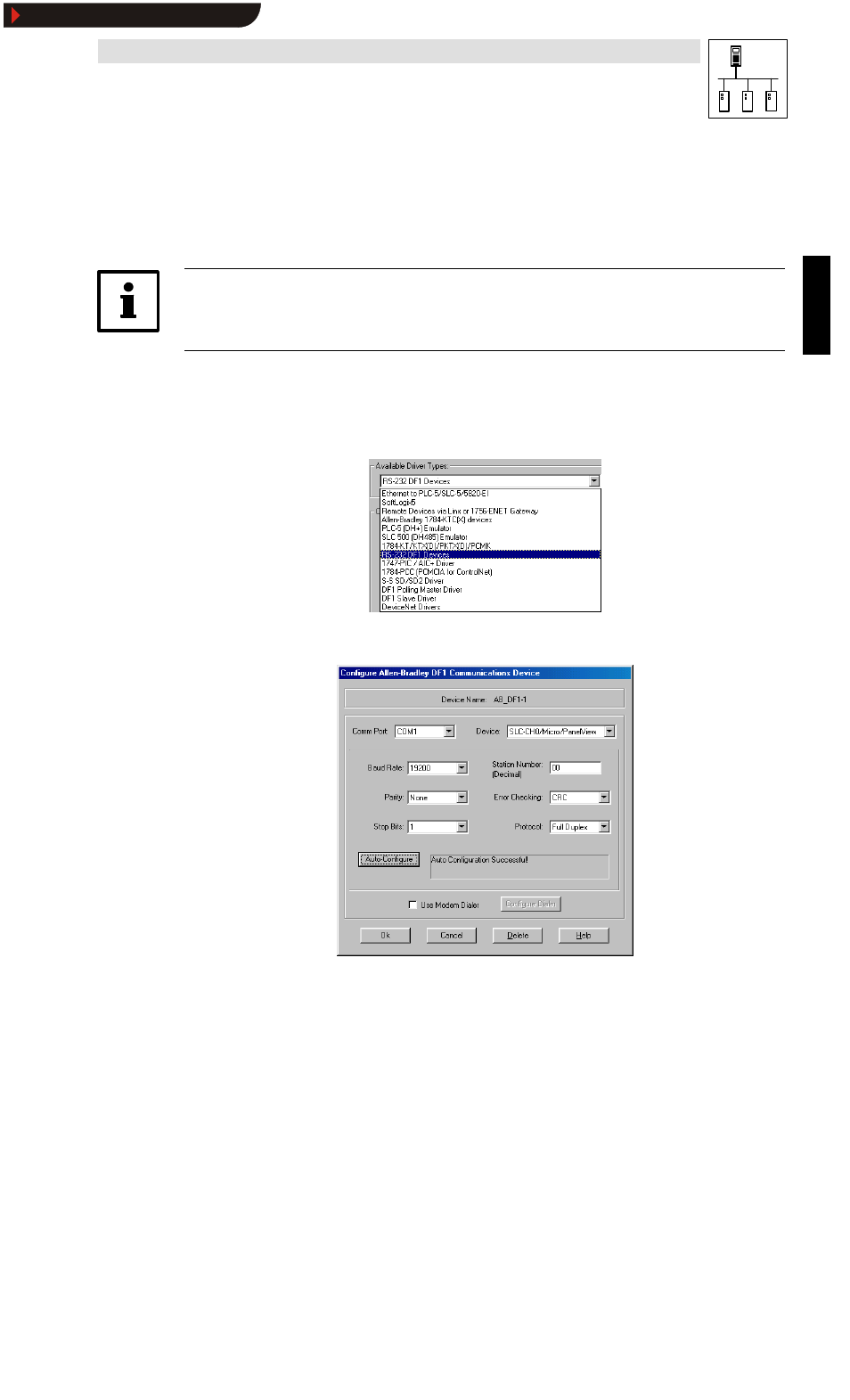

2175DeN087
4. Auto-Configure must be confirmed. Auto configuration successful! will be displayed after
the process has been completed.
2175DeN088
