CANopen
4 Installation
4-6
L
BA2175 EN 2.0

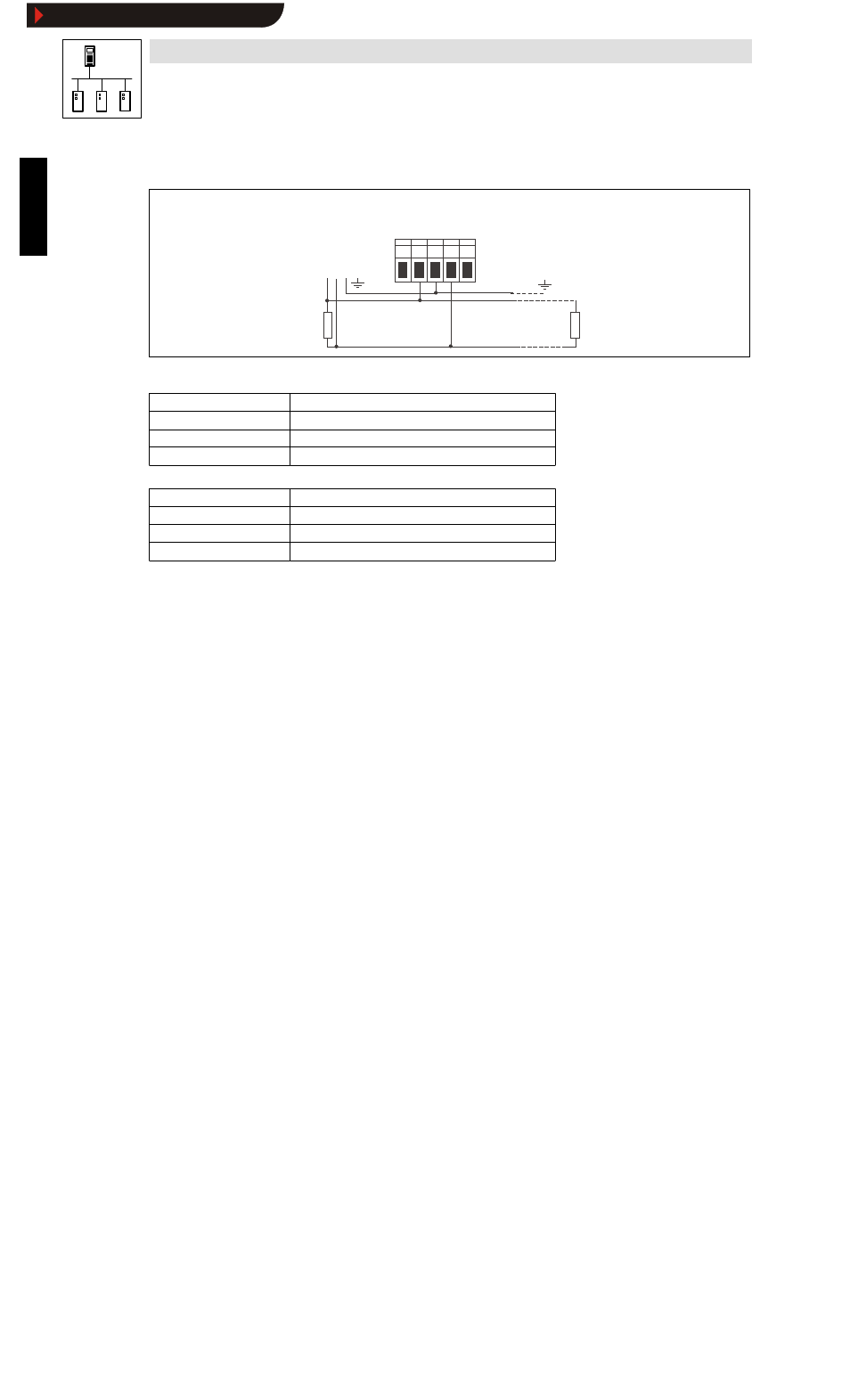

4.4.1 CAN bus wiring
2175DeN002
2175
V- V+ CAN_L CAN_H SHLD
120
R
120
R
CAN
LOW HIGH
Please observe our recommendations for signal cables:
Total length up to 300 m
Cable type
LIYCY 2 x 2 x 0.5 mm 2 (twisted in pairs with shield)
Cable resistance ≤ 40 Ω /km
Capacitance per unit length ≤ 130 nF/km
Total length up to 1000 m
Cable type
CYPIMF 2 x 2 x 0.5 mm 2 (twisted in pairs with shield)
Cable resistance ≤ 40 Ω /km
Capacitance per unit length ≤ 60 nF/km
