DeviceNet
14 Appendix
14-8
L
BA2175 EN 2.0

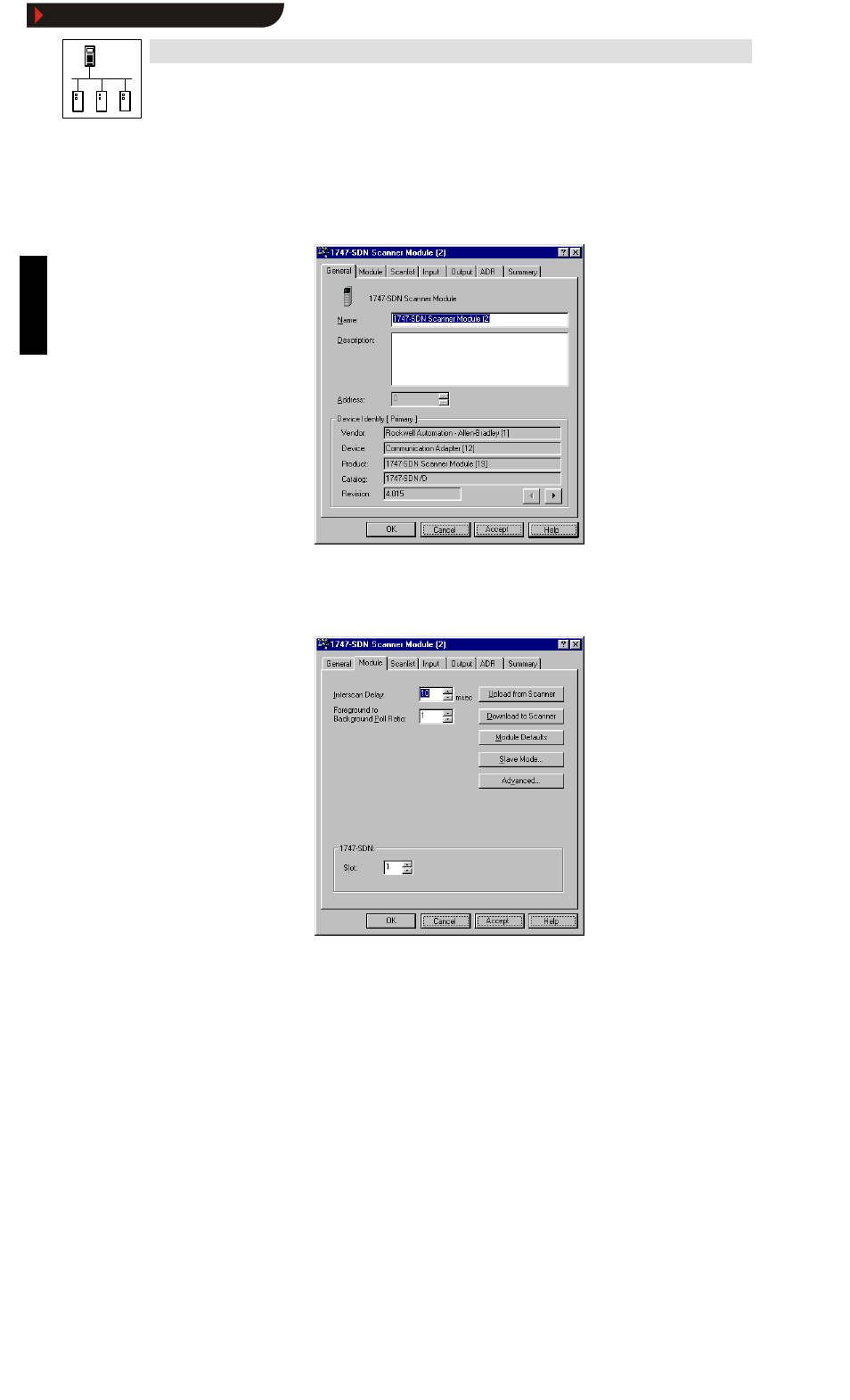

Processing assignment (scanner properties)
Set the I/O address assignment between CPU and DeviceNet devices under Properties of the
DeviceNet scanner using “ RSNetWorx” .
1. General scanner data are indicated when the scanner symbol is double clicked.
2175DeN069
2. Select the register card Module
You will be asked whether you want to upload/download the components connected to the
DeviceNet before the modules can be displayed. The window Module shows the scanner
configuration.
2175DeN071
