CANopen

4

Installation

4-2

L

BA2175 EN 2.0

4.2

Mechanical installation

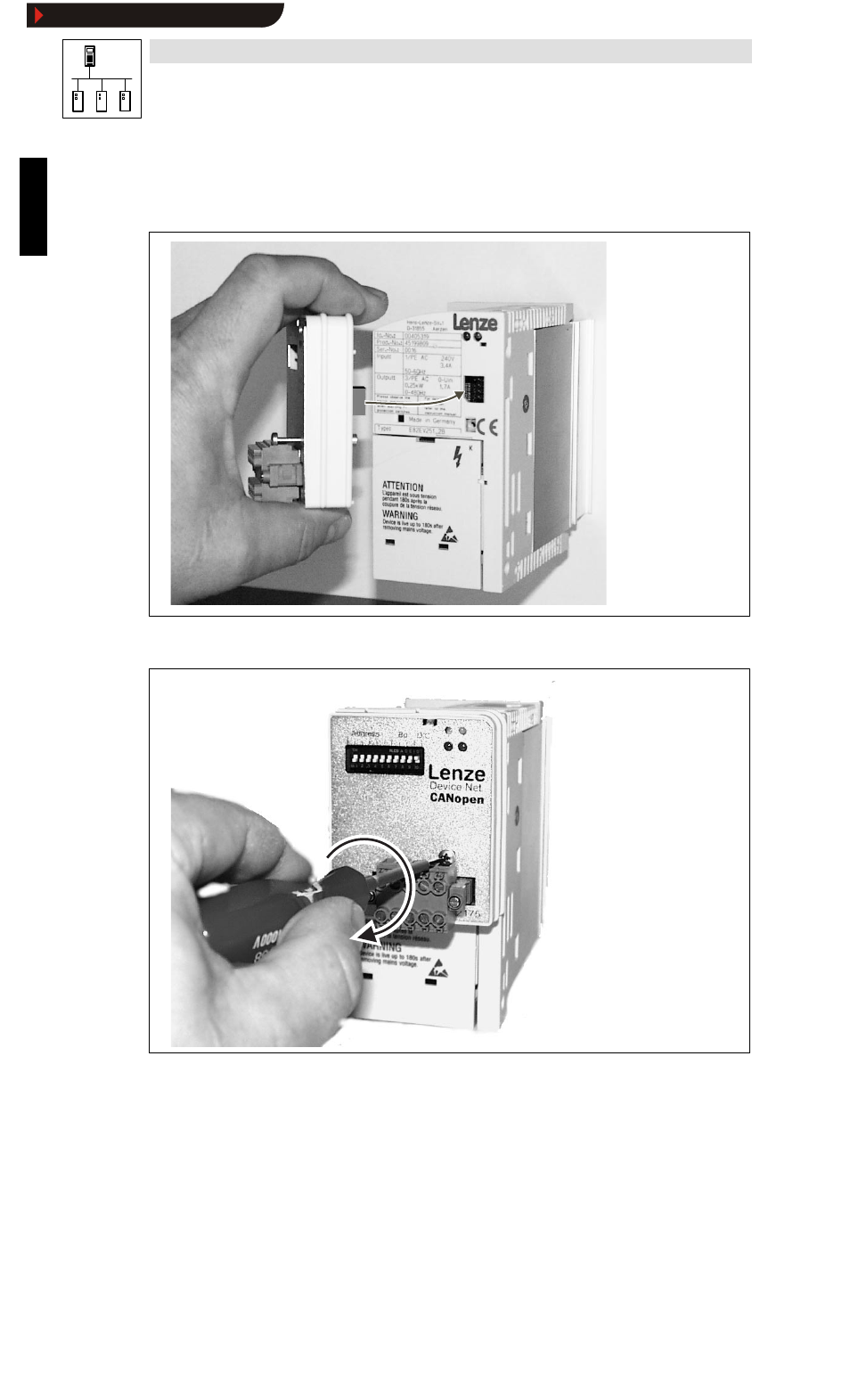

Plug the fieldbus module onto the controller (here: 8200 vector)

2175DeN020

Tighten the fixing screw

(

^

4-1)

Pos. 4)

2175DeN021
