DeviceNet

10

Installation

10-2

L

BA2175 EN 2.0

10.2

Mechanical installation

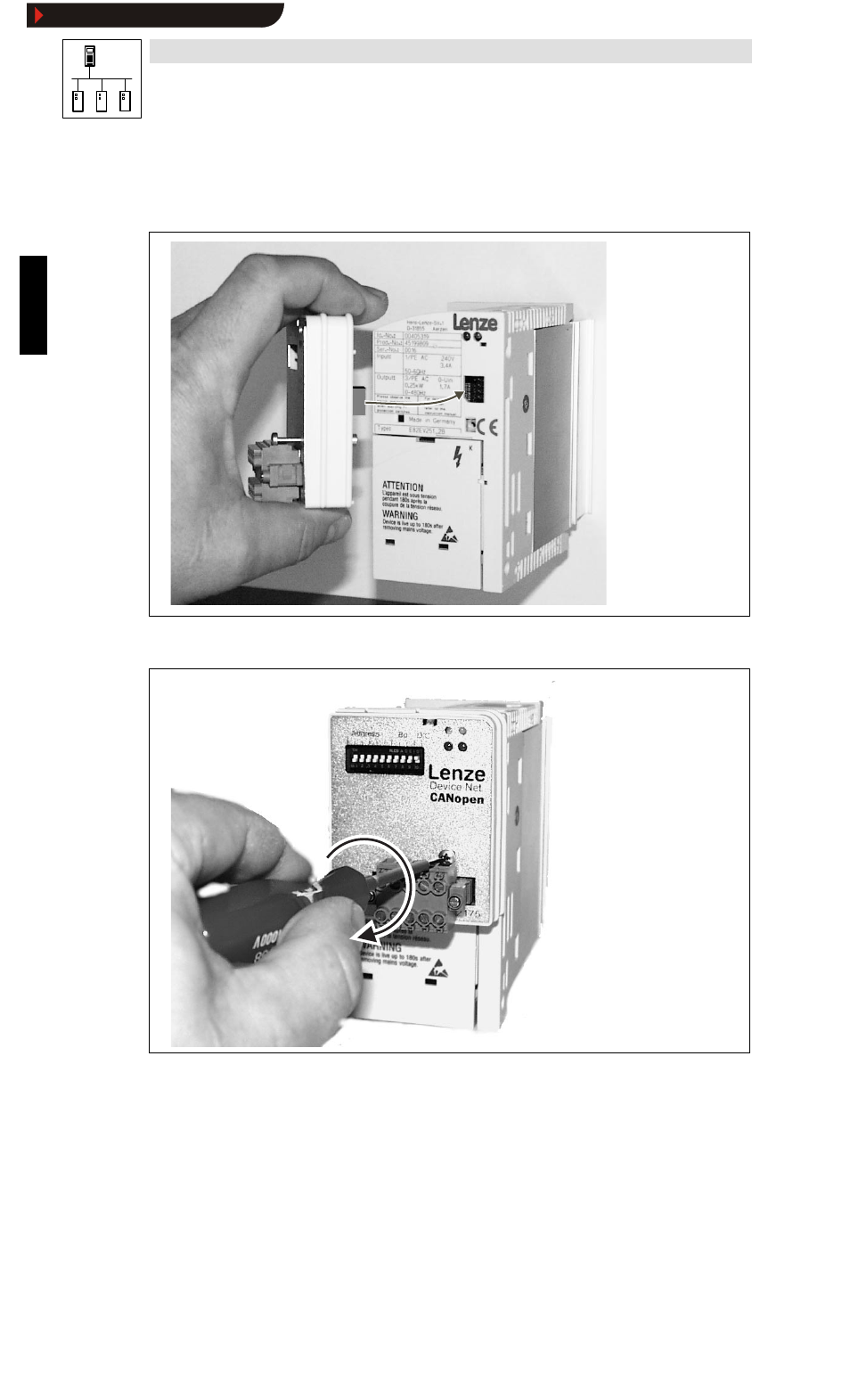

Plug the fieldbus module onto the controller (here: 8200 vector)

Tighten the fixing screw

(

^

10-1)

Pos. 4)
