DeviceNet
14 Appendix
14-24
L
BA2175 EN 2.0

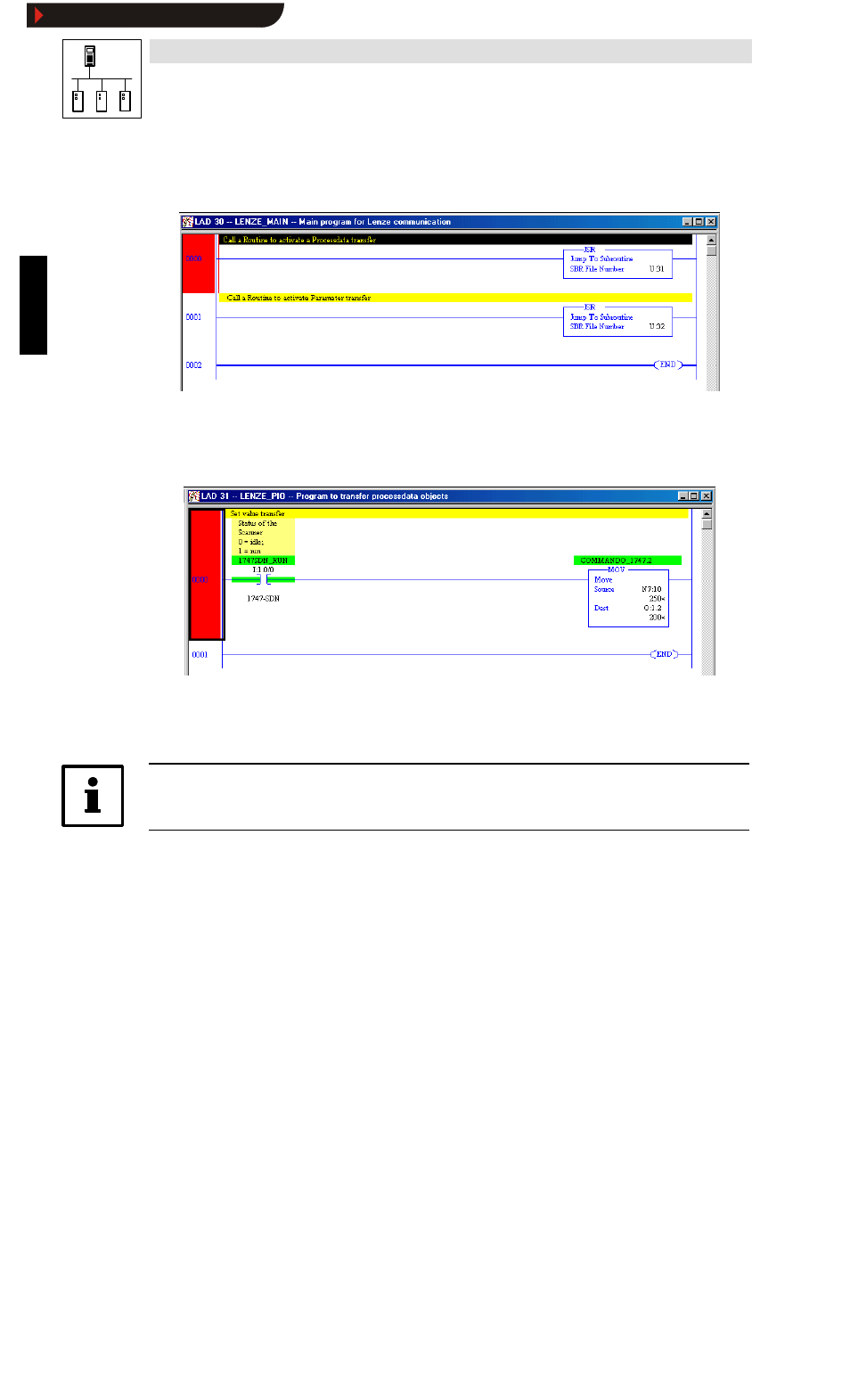

14.3.3 LAD30 - LENZE_MAIN
Jump to routines 31 and 32
2175DeN103
14.3.4 LAD31 - LENZE_PIO
Sending of the controller setpoint
2175DeN104
The example describes the writing of the speed setpoint to the 8200 vector frequency inverter.
The speed setpoint is normalised with 24000
dec
≡ 480Hz.
The value written to PCD2 (O:1.2) is = 500
dec
and corresponds to a field frequency of 10 Hz.
Note!
Process data normalisation is described in detail in the corresponding Operating Instructions.
