DeviceNet

14

Appendix

14-4

L

BA2175 EN 2.0

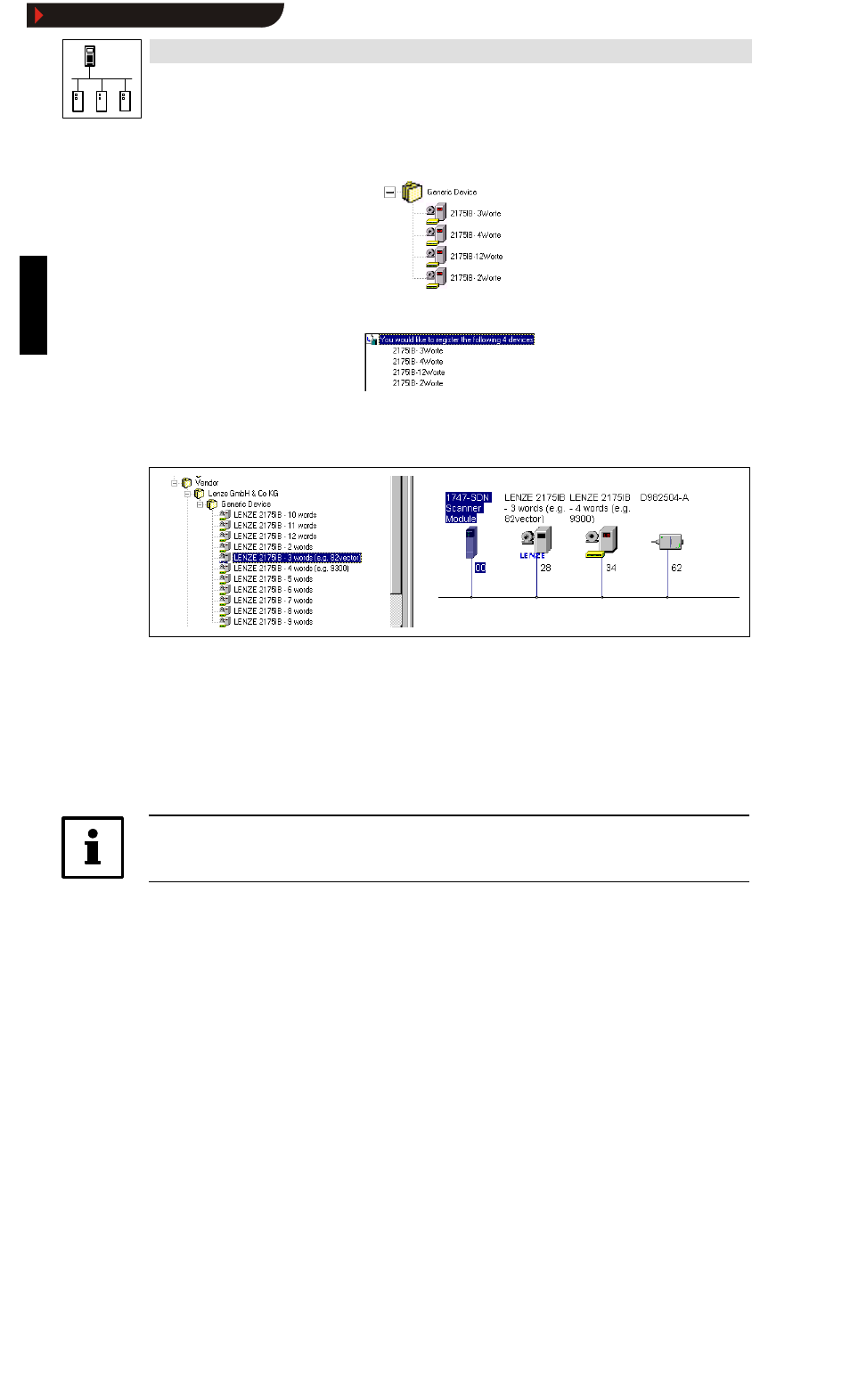

6. All assigned symbols are displayed.

2175DeN056

7. The registration query will be completed when pressing Complete .

2175DeN057

All inserted data are now available for the hardware catalog. The path is:

DeviceNet/Vendor/Lenze GmbH&CoKG/Generic Device

2175DeN059

The process data length depends on the controller used.

Select according to the controller:

•

820X: 4byte = 2 words

•

821X/822X: 4byte = 2 words

•

8200vector: 6byte = 3 words

•

93XX: 8byte = 4 words

•

9300 servo PLC: 24byte = 12 words

Tip!

“ RSNetWorx” automatically assigns the EDS files if the controller is connected online.
