CANopen

4

Installation

4-1

L

BA2175 EN 2.0

4

Installation

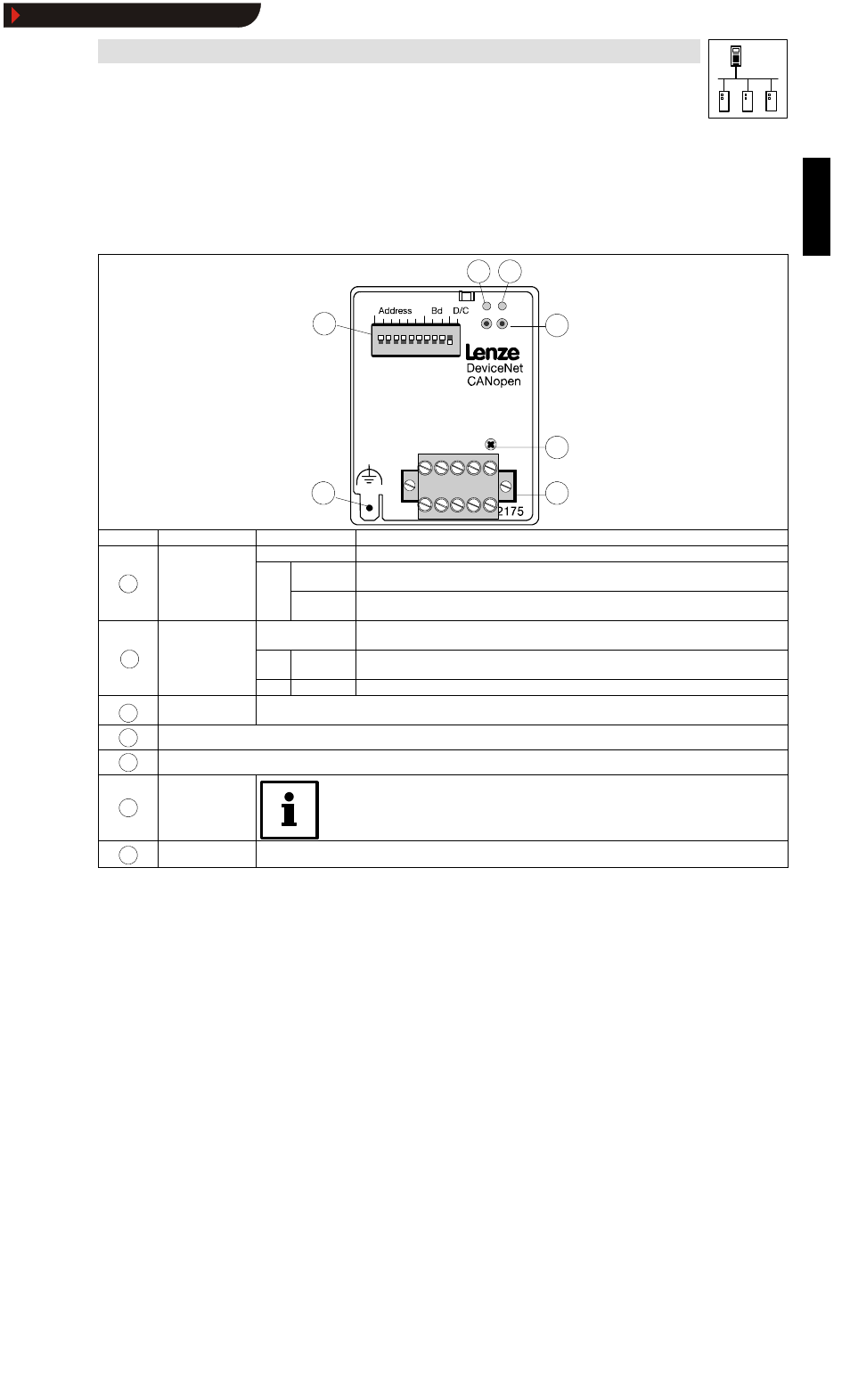

4.1

Components of the fieldbus module

1

6

5

3

2

4

7

Pos.

Designation

Meaning

Notes

OFF

2175 fieldbus module is not supplied with voltage; controller or external voltage supply is switched off.

1

Controller

connection status

GREE

BLINKING

2175 fieldbus module is supplied with voltage but is not connected to the controller (controller is
switched off, in initialisation or not available).

1

connection status
(two-colour LED)

GREE
N

Constantly
ON

2175 fieldbus module is supplied with voltage and connected to the controller.

Bus connection

status
(

l

LED)

OFF

No communication with the fieldbus module

Fieldbus module is not supplied with voltage

2

(two-colour LED)

GREE
N

BLINKING

Communication via the fieldbus has been set up

RED

ON

Internal fault of the fieldbus module

3

Green and red drive

LEDs (drive)

Operating status of the following controllers: 82XX, 8200 vector, 93XX and servo PLC 9300
(see Operating Instructions for the controller)

4

Fixing screw

5

5-pole plug-in connector

6

Connection

PE shield cable

Only for 820X and 821X:
If necessary use an additional PE shield cable which avoids EMC-related communication interference

in especially noisy environments.

7

DIP switch

For settings see chapter 5
