AT-S41 User’s Guide
222
Viewing Group Members
You can use the AT-S41 software to display a list of the members of each
multicast group on a switch. To display the list, perform the following
procedure:
1. Click on the Advanced Config menu tab and select IGMP Snooping
from the sub-menu.
The IGMP Snooping page will appear, as displayed in Figure 88 on
page 220.
2. Click on a multicast group address. The group members will appear
on the IGMP Snooping Group Members page, as displayed in Figure
89.

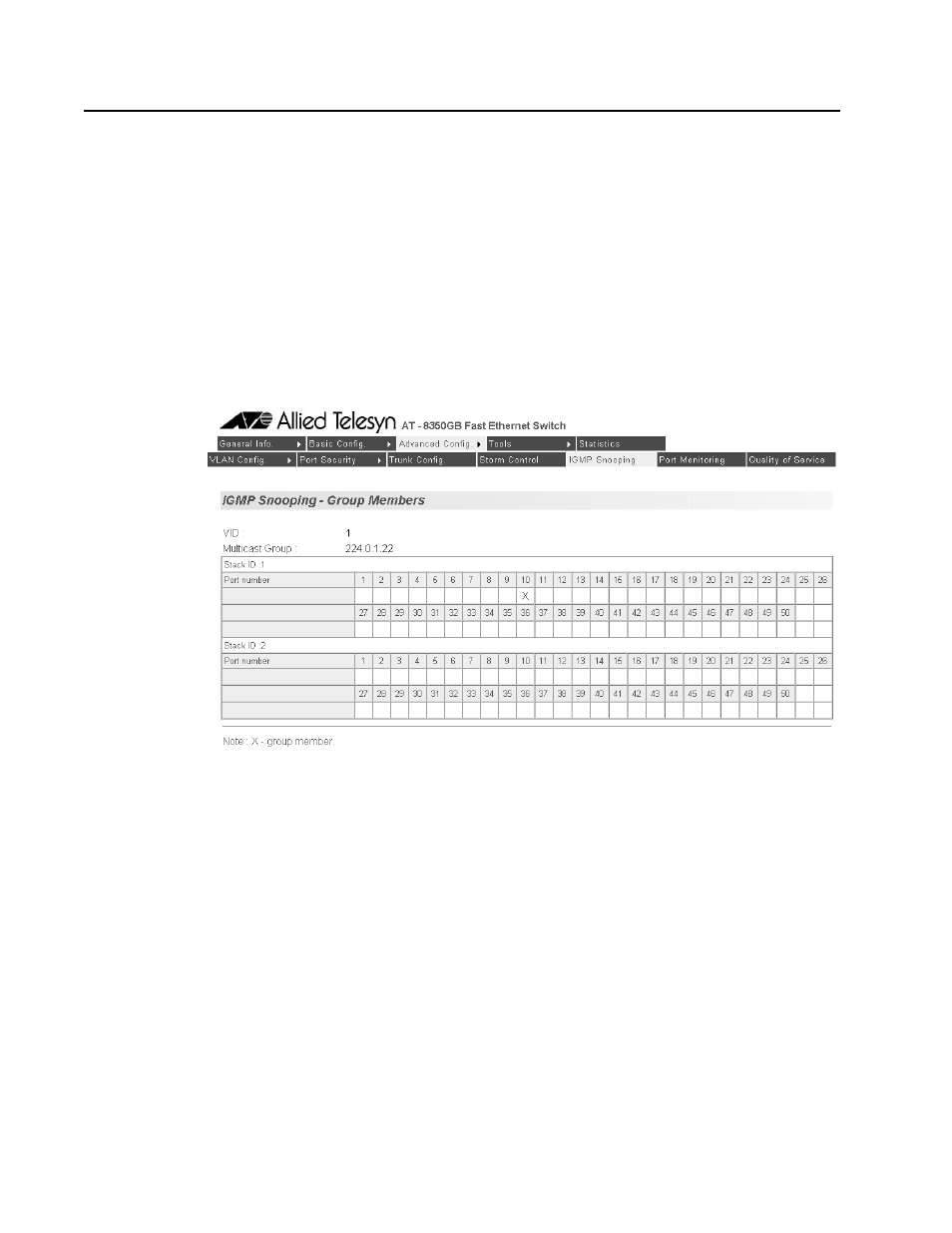

Figure 89 IGMP Snooping Group Members
The information on this page is for viewing purposes only. The
parameters are defined below:
VID
The VLAN ID of the VLAN the multicast group belongs to. This
parameter will only be visible if you have created a VLAN.
Multicast Group Address
The multicast address of the group.
Port Number
The ports on the switch. An X under a port number indicates that
the port is a member of this multicast group.
Stack ID
The stack ID of the switch.
