AT-S41 User’s Guide
204

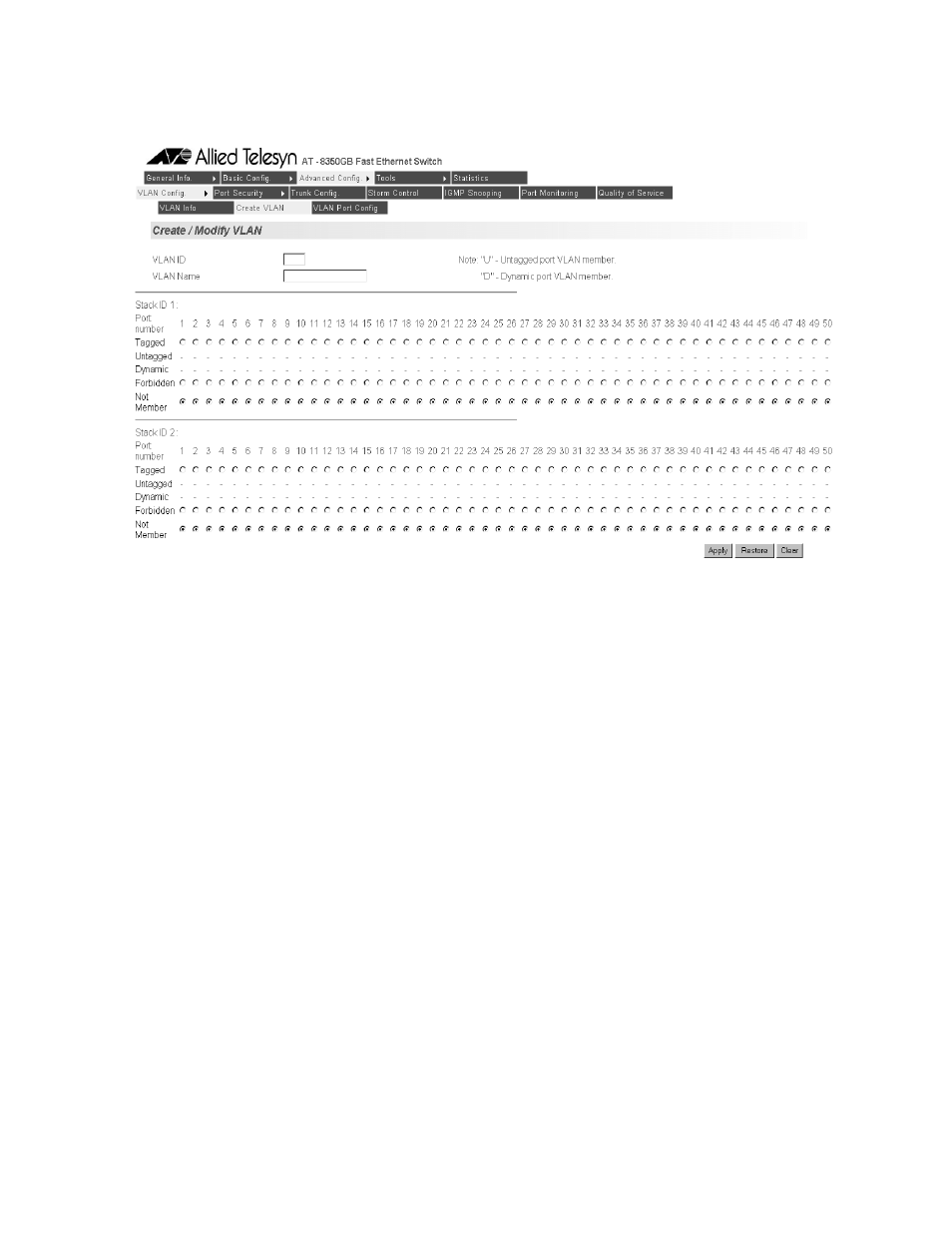

The Create/Modify VLAN page will appear, as displayed in Figure
80.
Figure 80 Create/Modify VLAN
The rows on the page are defined below:
Tagged
A selected radio button indicates the corresponding port is a
tagged member of the VLAN.
Untagged
A U in this row indicates that the port is an untagged member of
the VLAN.
Forbidden
A dot in a radio button indicates that the switch will not learn
VLANs from the end node connected to the port. This applies only
to tagged ports and only when GVRP has been activated on the
switch.
Not Member
A selected radio button in this row indicates that the port is not a
member of the VLAN.
3. To add a tagged port to the VLAN, click the Tagged radio button for
the port.
