Displaying Port Status
The procedure in this section displays the operating status of the ports
on a switch. To display the status of a switch port, perform the following
procedure:
1. Click on the General Info menu tab and select Front Panel from the
sub-menu.
The Front Panel page will appear, as displayed in Figure 68.

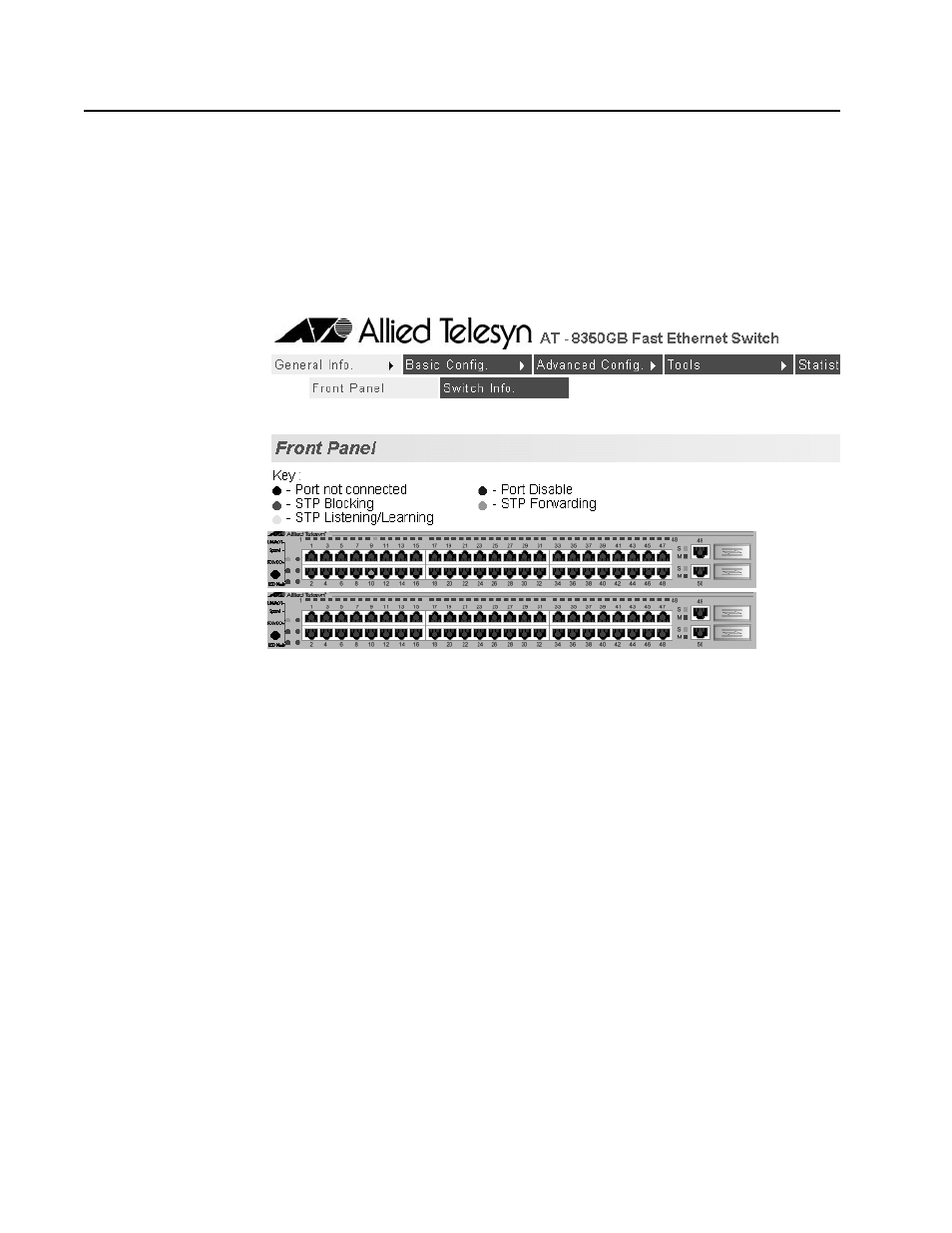

Figure 68 Front Panel Page
This page displays a graphical image of the front of the switch.
Ports with valid links to end nodes have a green light.
2. Click on a port. You can select only one port at a time.
