AT-S41 User’s Guide
149

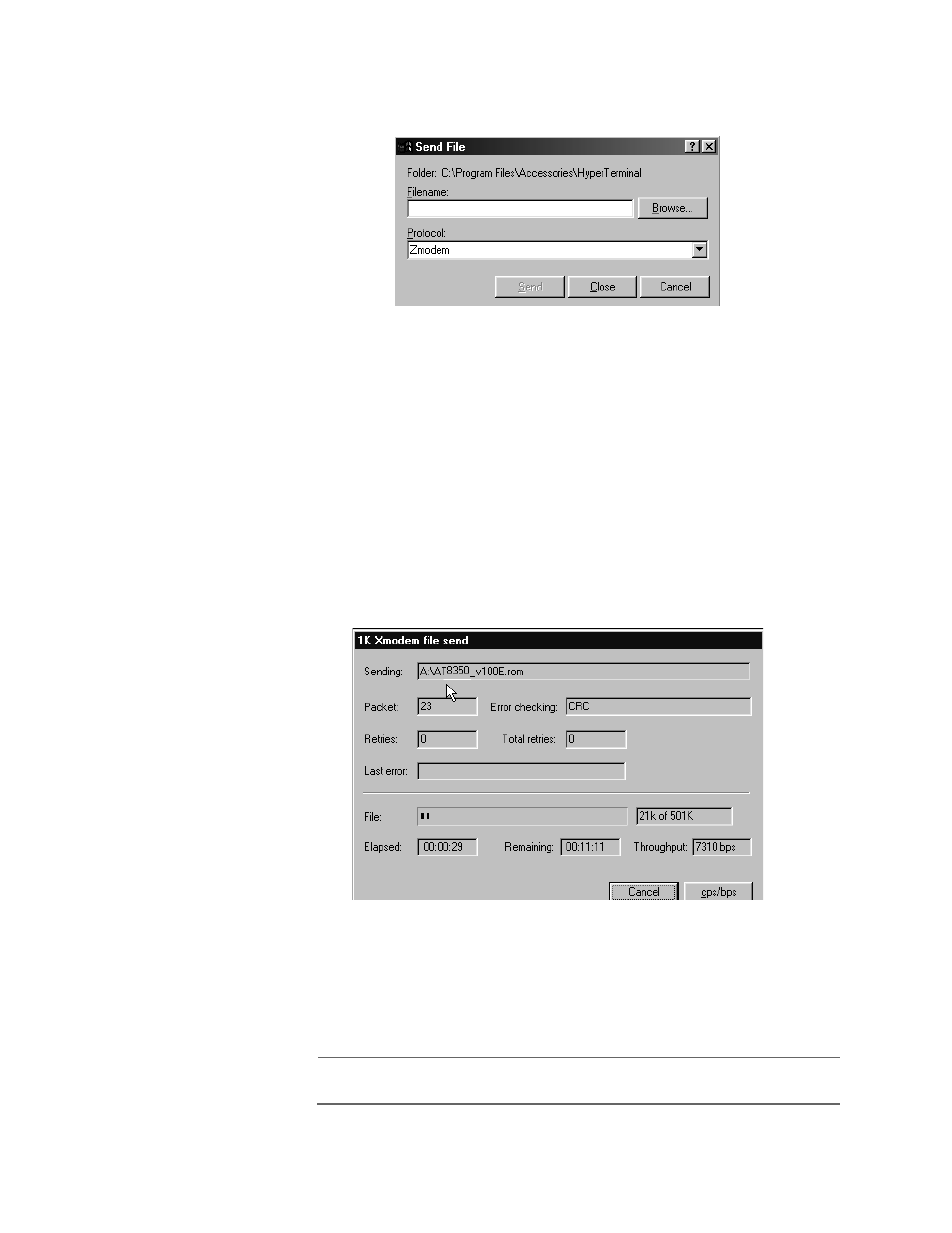

The Send File pop-up window is displayed in Figure 51.
Figure 51 Send File Pop-up Window
8. Click the Browse button on the Send File window to specify the
location of the software.
9. Click on the Protocol field and set to 1K Xmodem transfer protocol.
10. Click Send.
The software immediately begins to download onto the switch’s
CPU. As this process begins, the Xmodem File Send window
displays current status of the software download. The software
download process will take a few minutes.
The XModem File Send window is displayed in Figure 52.
Figure 52 XModem File Send Window
Once the new software download process has completed, the
switch begins to initialize the software. Once the initialization
process is complete, the switch will automatically reboot.
Note
Do not interrupt the initialization process.
