AT-S41 User’s Guide
174
Configuring Port Parameters
To configure the parameter settings for a port on a switch, perform the
following procedure:
1. Click on the Basic Config menu tab and select Port Config from the
sub-menu. Choose Port Config again in the next sub-menu.
The Port Configuration page will appear, as displayed in Figure 66.

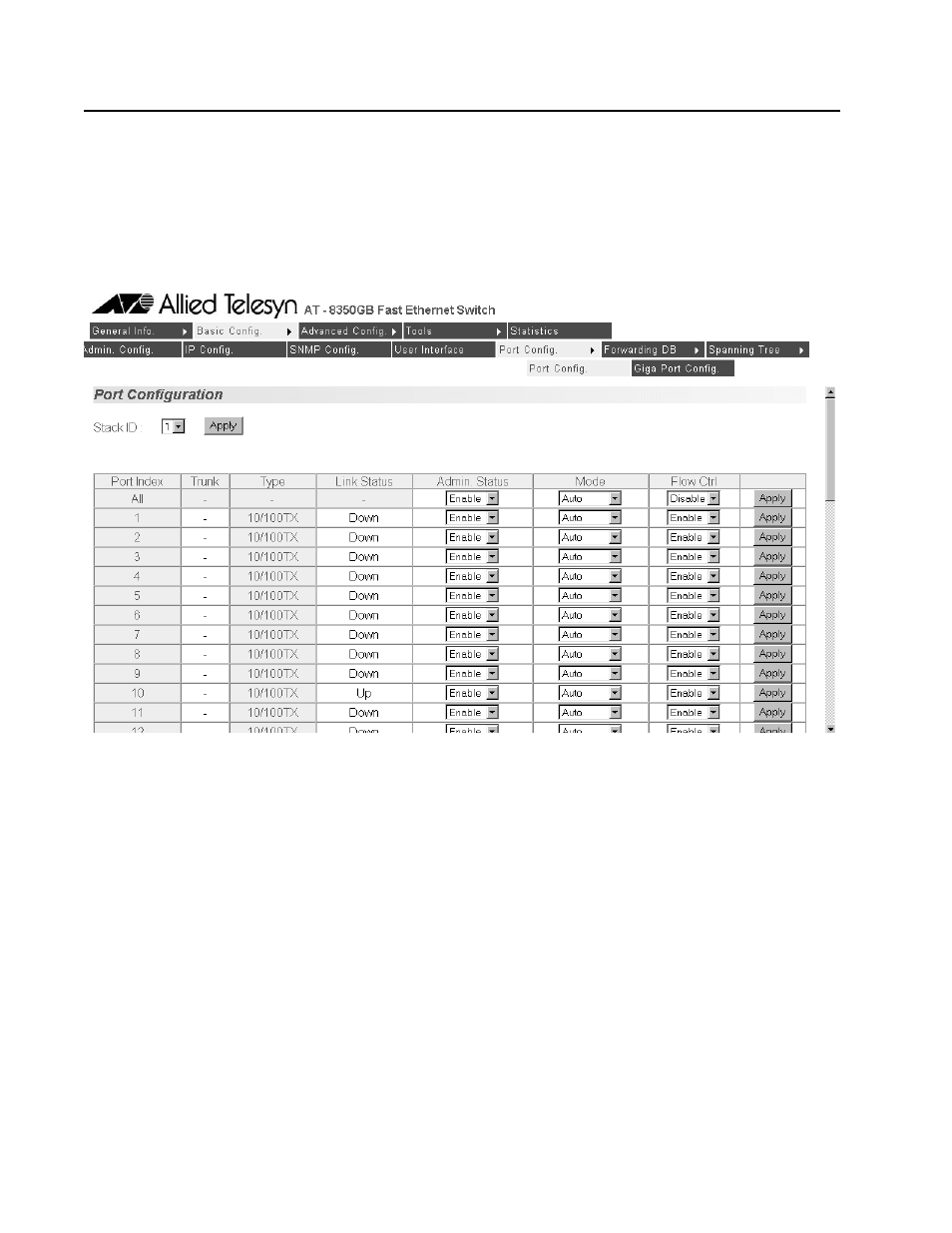

Figure 66 Port Configuration Page
2. Adjust the port parameter(s) that you want to configure. You can
configure the parameters for only one port at a time.
The parameters are described below:
Port Index
The port number.
Trunk
The trunk group number. A number in this column indicates that
the port has been activated in a trunk. For instructions on how to
create a port trunk, refer to Port Trunks on page 187.
