AT-S41 User’s Guide
169
Ping Execution
To configure the ping execution settings on the switch, perform the
following procedure:
1. Click on the Tools menu tab and select Ping from the sub-menu.
The Ping Test Configuration page is displayed, as shown in Figure
63.

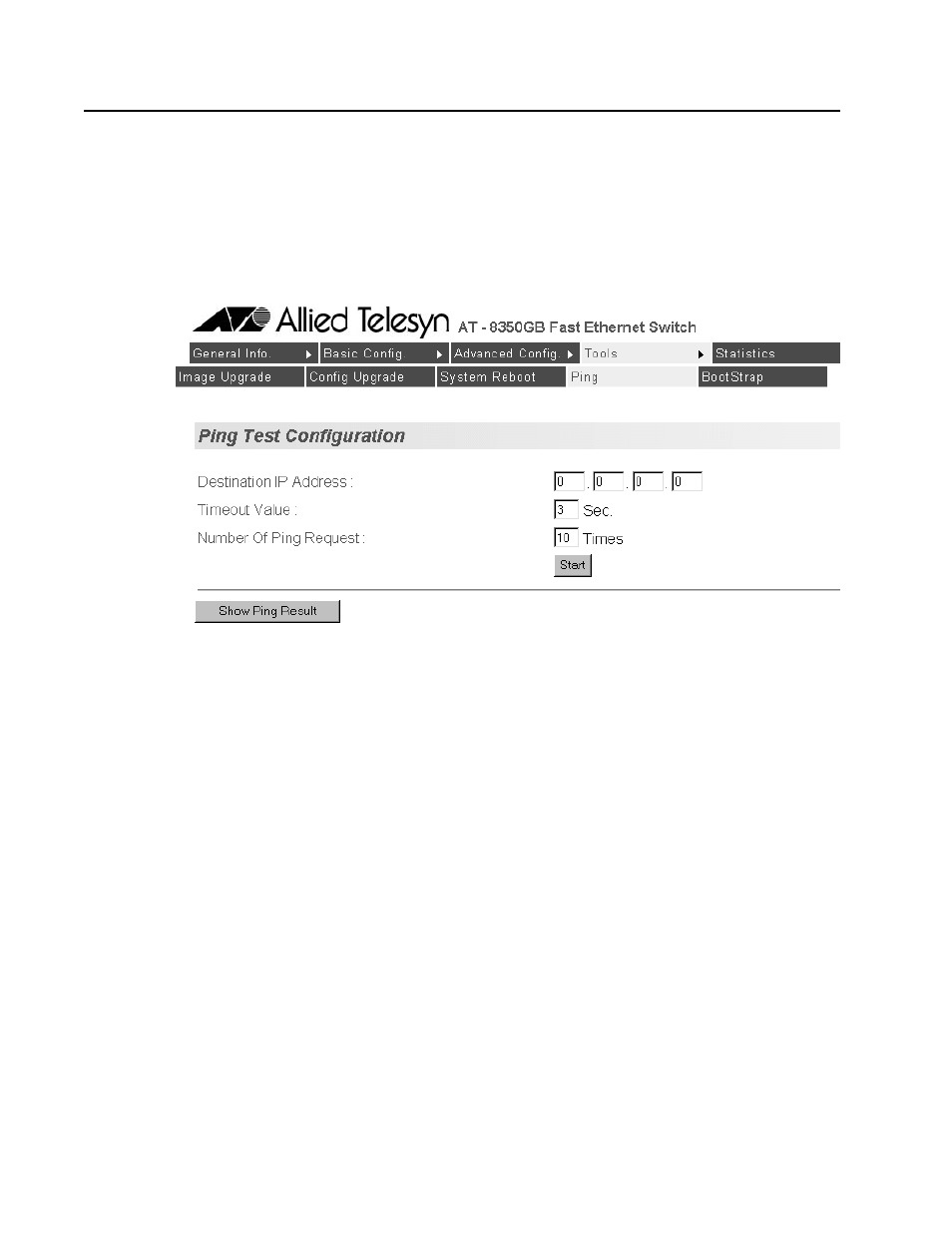

Figure 63 Ping Test Configuration Page
2. Adjust the parameters as desired. To change a value, enter the new
information in the data entry field. The parameters are described
below.
Destination IP Address
This command specifies the IP address of the end node you are
pinging.
Timeout Value
The length of time for which the switch will continue to send
pings if it does not receive a response. The default timeout setting
is 3 seconds.
Number of Ping Requests
Number of ping attempts the switch should make before it stops
pinging if it does not receive a response. The default number of
ping requests is 10.
3. Click the Start button.
4. To view the ping results, click the Show Ping Results button.
