AT-S41 User’s Guide
210
Viewing the MAC Address by Port
This section contains the procedure for viewing the dynamic MAC
addresses that have been learned on a particular port. You can also use
this procedure to view any static MAC addresses that have been
assigned to a port.
1. Click on the Basic Config menu tab and select Forwarding DB from the
sub-menu. Choose Sort by Port from the next sub-menu.

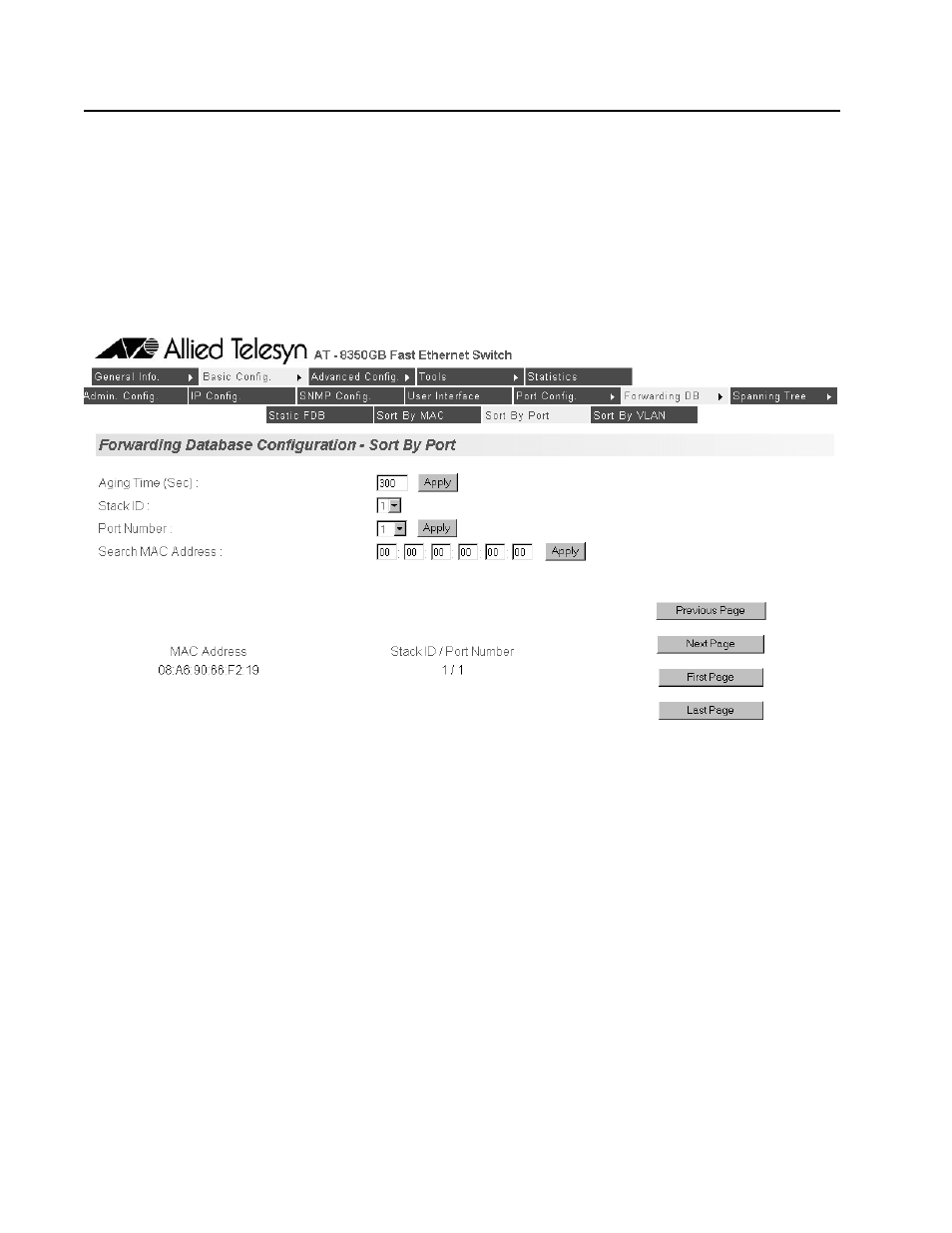

The Sort by Port page will appear, as displayed in Figure 82.
Figure 82 Sort by Port
2. Select the Stack ID for the switch whose MAC addresses you want to
view.
3. Select the port whose static and dynamic MAC addresses you want to
view from the Port Number pull-down menu.
4. Click the Apply button next to the Port Number.
A page is displayed with the MAC addresses of the end nodes on
the port. The columns on the page and the definitions of the
columns are the same as for the Display MAC Address by MAC
Menu on page 111.
